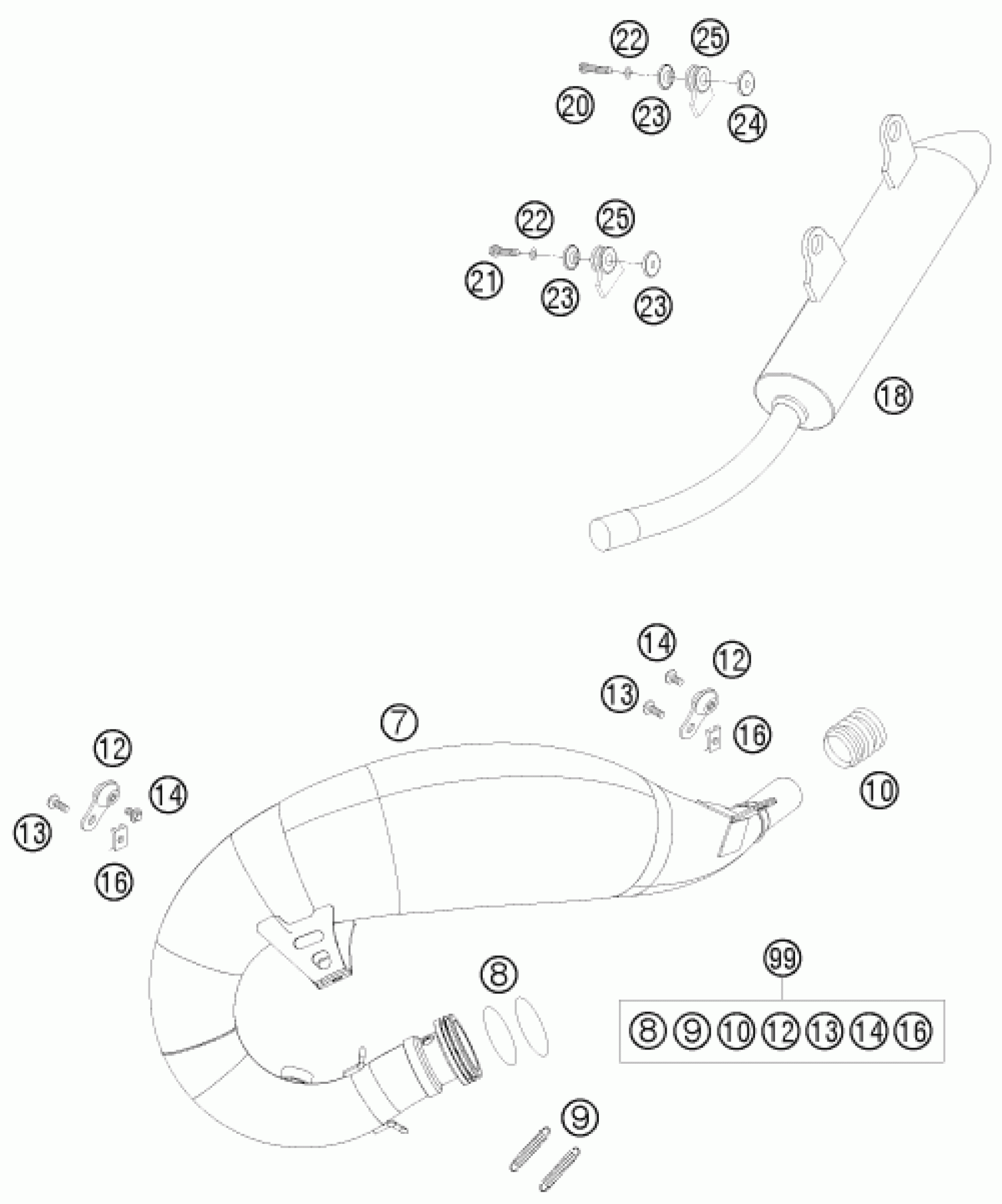

KTM 125 EXC SIX-DAYS 2008 EXHAUST SYSTEM Diagram

#

Description
Price

8

O-RING 44,00X3,00 VITON

0770440030

Unavailable

18

MAIN SILENCER 125 SIX DAYS 05

50305081300

Unavailable

20

HH collar screw M6x35 TX30

0025060356

Unavailable

21

HH collar screw M6x30 TX30

0025060306

Unavailable

7

FACTORY PIPE 125 SXS 07

SXS07125501

Unavailable

9

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

Unavailable

10

RUBBER SLEEVE D=21MM/23MM '93

54605057000

Unavailable

12

Silent block for exhaust pipe

50305012000

Unavailable

13

HH collar screw M6x15 TX30

0024060156

Unavailable

14

HH COLLAR SCREW M6X10 TX30

0024060106

Unavailable

16

clip nut M6

54603048100

Unavailable

22

spring washer DIN 137 B - 6

0137060003

Unavailable

23

BUSHING 7.5x12x28x7.6 07

77305069000

Unavailable

24

BUSHING SIL.-SMR REAR 2004

59405169000

Unavailable

25

EXHAUST BRACKET RUBBER BLACK

54605068000

Unavailable

99

EXHAUST HARDWARE KIT 05-15

00050000810

Unavailable
