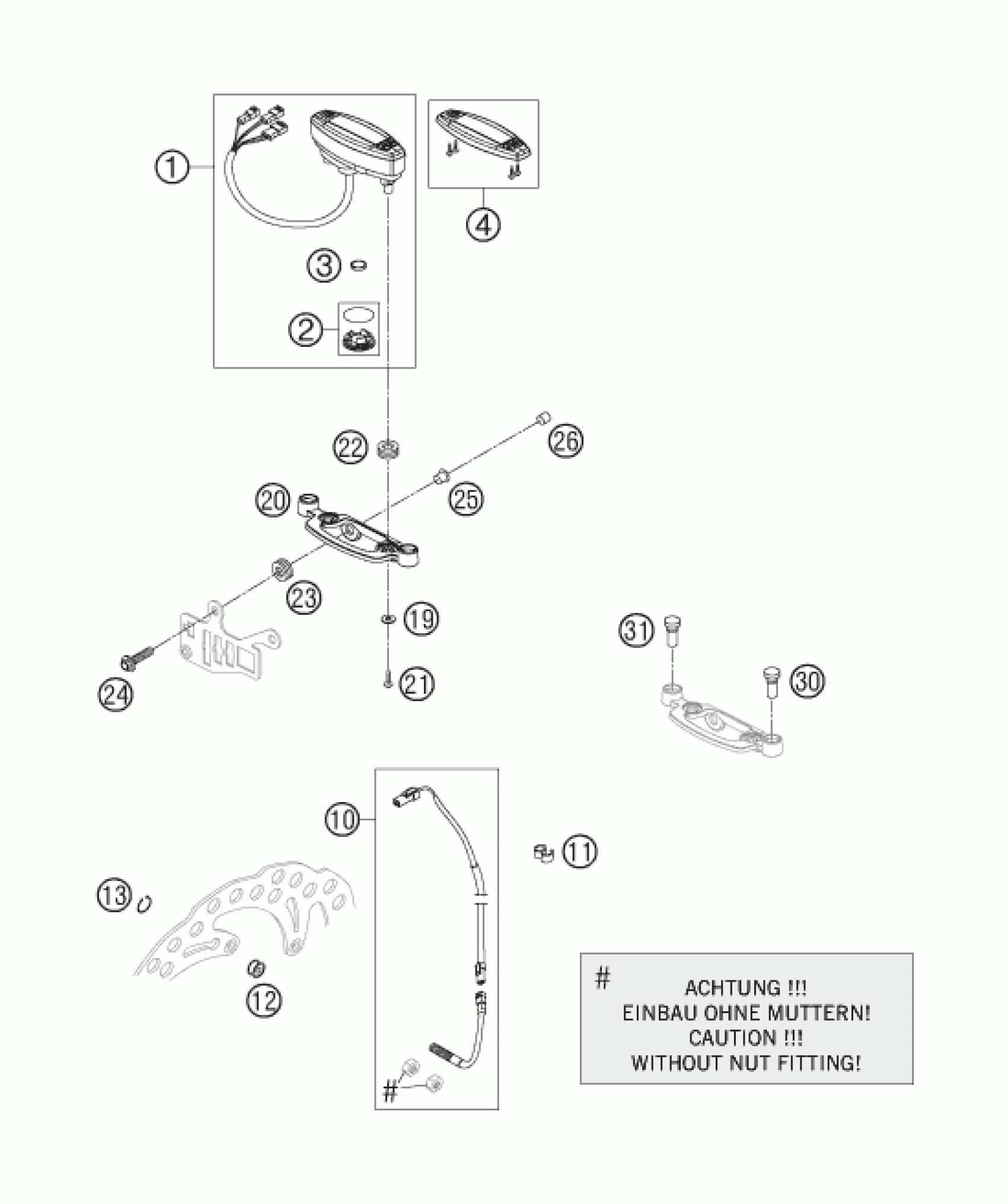

KTM 125 EXC SIX-DAYS 2006 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description
Price

13

CIRCLIP DIN0471- 9X1 INOX

0471009104

Unavailable

19

washer DIN 9021 A - 5.3

0021050003

Unavailable

20

SPEEDOMETER BRACKET 05

54814060000

Unavailable

21

SCREW FOR PLASTIC 50X12

0016050121

Unavailable

22

rubber grommet 16x10.8x3

58214069051

Unavailable

4

SPEEDOMETER TOP PART 05

54814069020

Unavailable

10

CABLE FOR DIGITAL SPEEDOM. 06

54814068100

Unavailable

26

SPACER BUSHING 7X10X7,5

50208020000

Unavailable

30

H.BEAM INDICATOR LIGHT BLUE'98

58011021300

Unavailable

31

FLASHER INDICAT.LIGHT GREEN'98

58011024300

Unavailable

11

CLAMP D=6/8MM, BLACK

55011022100

Unavailable

12

MAGNET FOR DIGITAL SPEEDOM. 03

54814069050

Unavailable

3

BATTERY F. SPEEDOM. M.A.E. 02

58314068000

Unavailable

23

rubber grommet D=8mm open

31008060000

Unavailable

24

HH COLLAR SCREW M 6X25 WS=8

0014060253

Unavailable

25

spacer bushing for speedometer

58314060050

Unavailable

1

SPEEDOMETER KM/H F. 21'' 200

54814069000

Unavailable

2

BATTERY COVER F. SPEEDOM. 2005

54814069010

Unavailable
