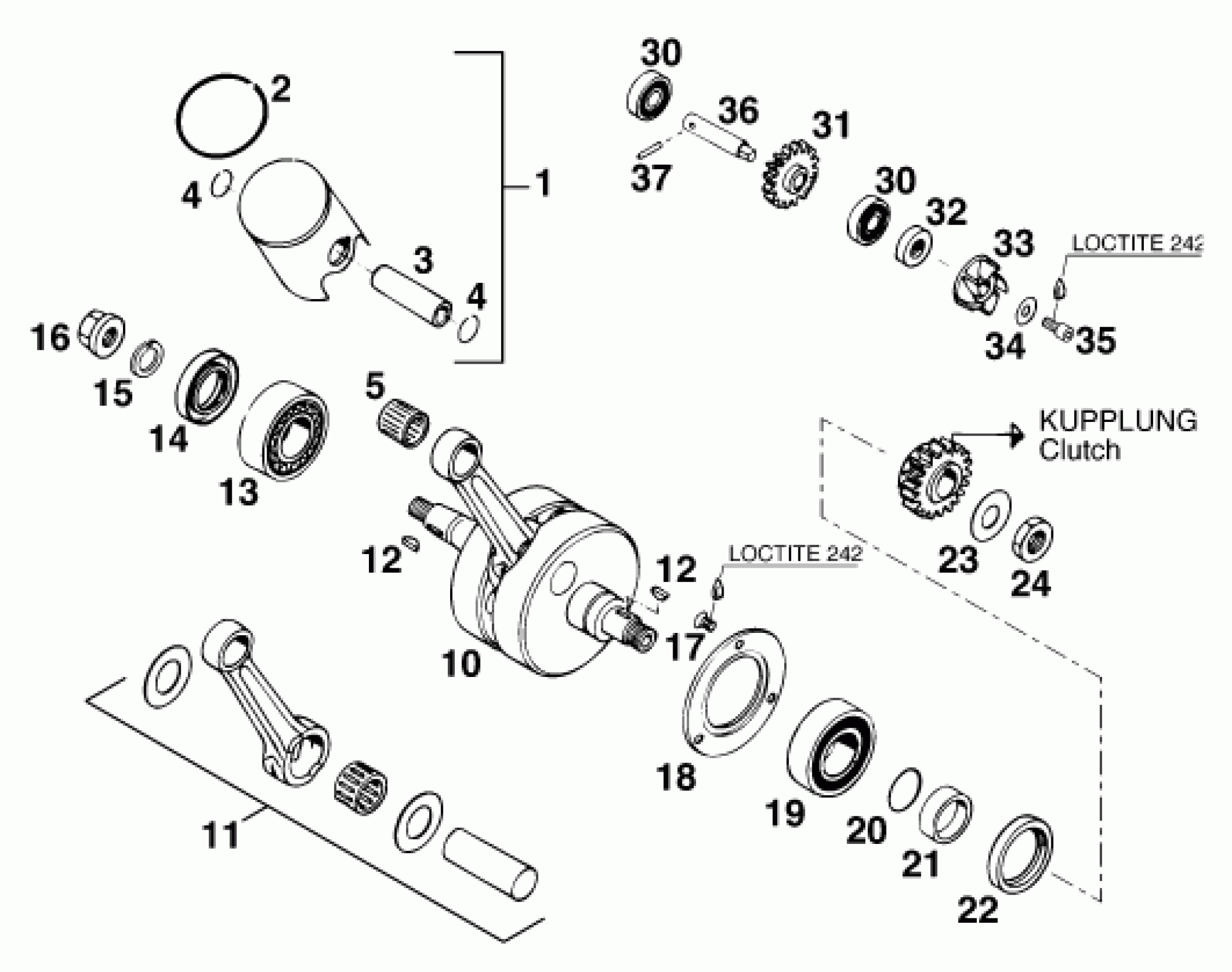

KTM 125 EXC M/Ö <1996> CRANKSHAFT, PISTON Diagram

#

Description
Price

2

SQUARE RING 54,25X1 125'92

50230032500

Unavailable

3

PISTON PIN 9X15X46,3 125'93

50130033000

Unavailable

4

WIRE LOCK RING C15X1,2

52030074000

Unavailable

5

NEEDLE BEARING KBK 15X19X20

51030034000

Unavailable

10

CRANKSHAFT 125 CC '92

50230018600

Unavailable

11

CON.ROD REPAIR KIT 125 '92

50230015644

Unavailable

12

WOODRUFF KEY DIN6888-3X5X13

0888030050

Unavailable

13

ROLLER BEARING NU205E/B TGP C3

54330023000

Unavailable

14

SHAFT SEAL RING 25x40x7BT

0760254070

Unavailable

15

LOCKING RING VSK 12

50230029012

Unavailable

16

COLLAR NUT M12X1 LEFT WS=17

51030028100

Unavailable

17

FLAT HEAD SCREW DIN963 M5x8

0963050083

Unavailable

18

RETAINING PLATE MAIN BEARING

50230019000

Unavailable

19

BALL BEARING 6205 TVH C4

0625062051

Unavailable

20

O-RING 1,2x23 NBR70

0770230012

Unavailable

21

* SPACER SLEEVE 25X30X10,5

50230016000

Unavailable

22

SHAFT SEAL RING 30X42X6

0760304260

Unavailable

23

FLAT WASHER

50030048000

Unavailable

24

HEXAGON NUT DIN936 M14x1,5

0936140155

Unavailable

30

BALL BEARING 6000 RS1 C3

0625060006

Unavailable

31

WATER PUMP DRIVE ROTOR 18-T

50235004200

Unavailable

32

SHAFT SEAL RING 10x22x6BSL

0760102260

Unavailable

33

WATER PUMP ROTOR

50235005000

Unavailable

34

WASHER DIN7349-5X15X2

0349000050

Unavailable

35

AH SCREW DIN0912-M 5X12

0912050123

Unavailable

36

WATER PUMP SHAFT 125

50235010200

Unavailable

37

NEEDLE ROLLER DIN5402 4X19,8

0402041980

Unavailable
