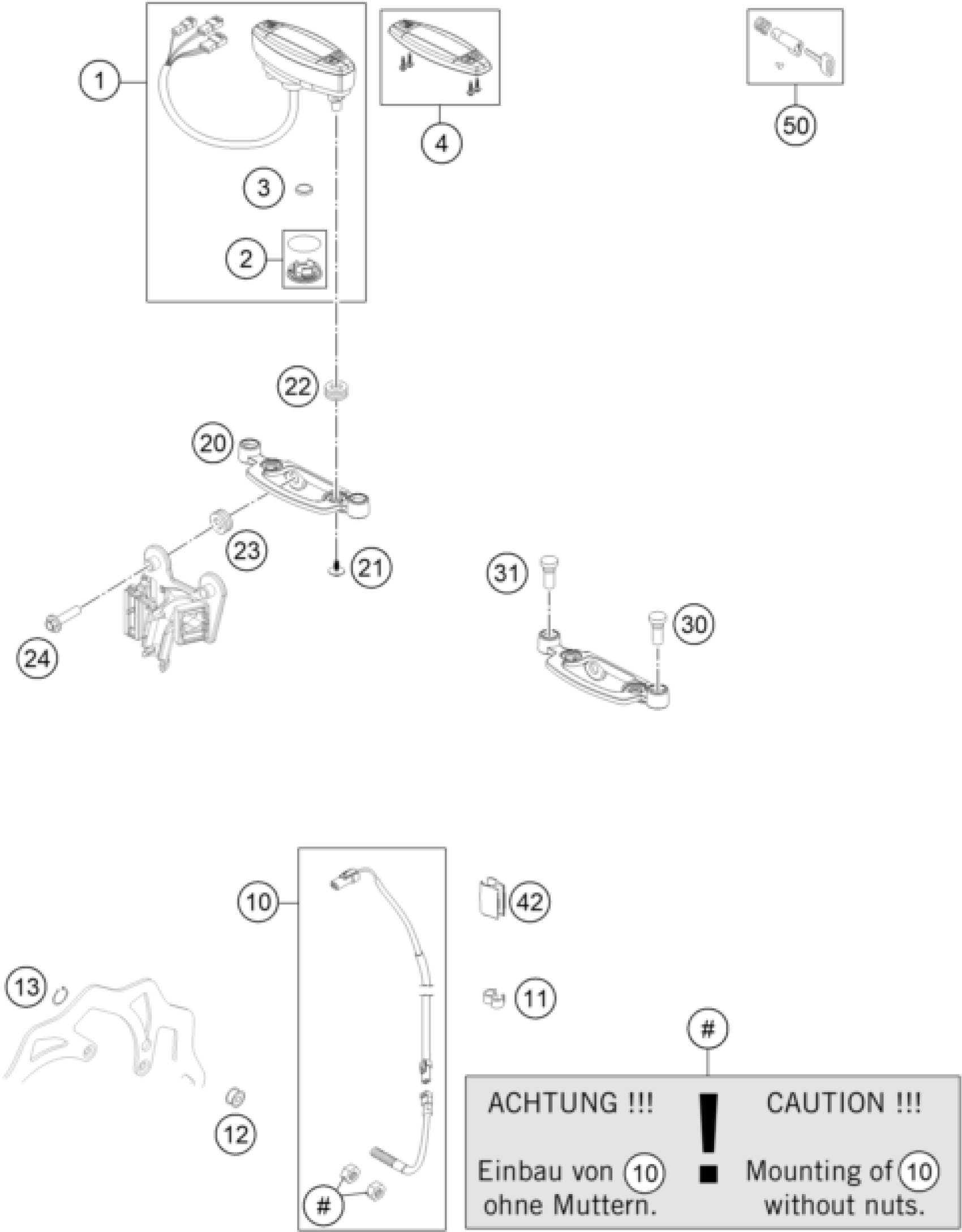

KTM 125 EXC 2014 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description
Price

42

CABLE SUPPORT 10/6MM 06

54813026000

Unavailable

50

STEERING HEAD LOCK 08

78003035000

Unavailable

20

SPEEDOMETER BRACKET 05

54814060000

Unavailable

21

EJOT DELTA PT SCREW 45X12-Z

0081645121

Unavailable

24

HH COLLAR SCREW M6X25 TX30

0024060256

Unavailable

30

H.BEAM INDICATOR LIGHT BLUE'98

58011021300

Unavailable

1

SPEEDOMETER KM/H F. 21'' 200

54814069000

Unavailable

2

BATTERY COVER F. SPEEDOM. 2005

54814069010

Unavailable

3

BATTERY F. SPEEDOM. M.A.E. 02

58314068000

Unavailable

4

SPEEDOMETER TOP PART 05

54814069020

Unavailable

10

CABLE FOR DIGITAL SPEEDOM. 06

54814068100

Unavailable

11

CLAMP D=6/8MM, BLACK

55011022100

Unavailable

12

MAGNET FOR DIGITAL SPEEDOM. 03

54814069050

Unavailable

13

CIRCLIP DIN0471- 9X1 INOX

0471009104

Unavailable

31

FLASHER INDICAT.LIGHT GREEN'98

58011024300

Unavailable

23

rubber grommet D=8mm open

31008060000

Unavailable

22

rubber grommet 16x10.8x3

58214069051

Unavailable
