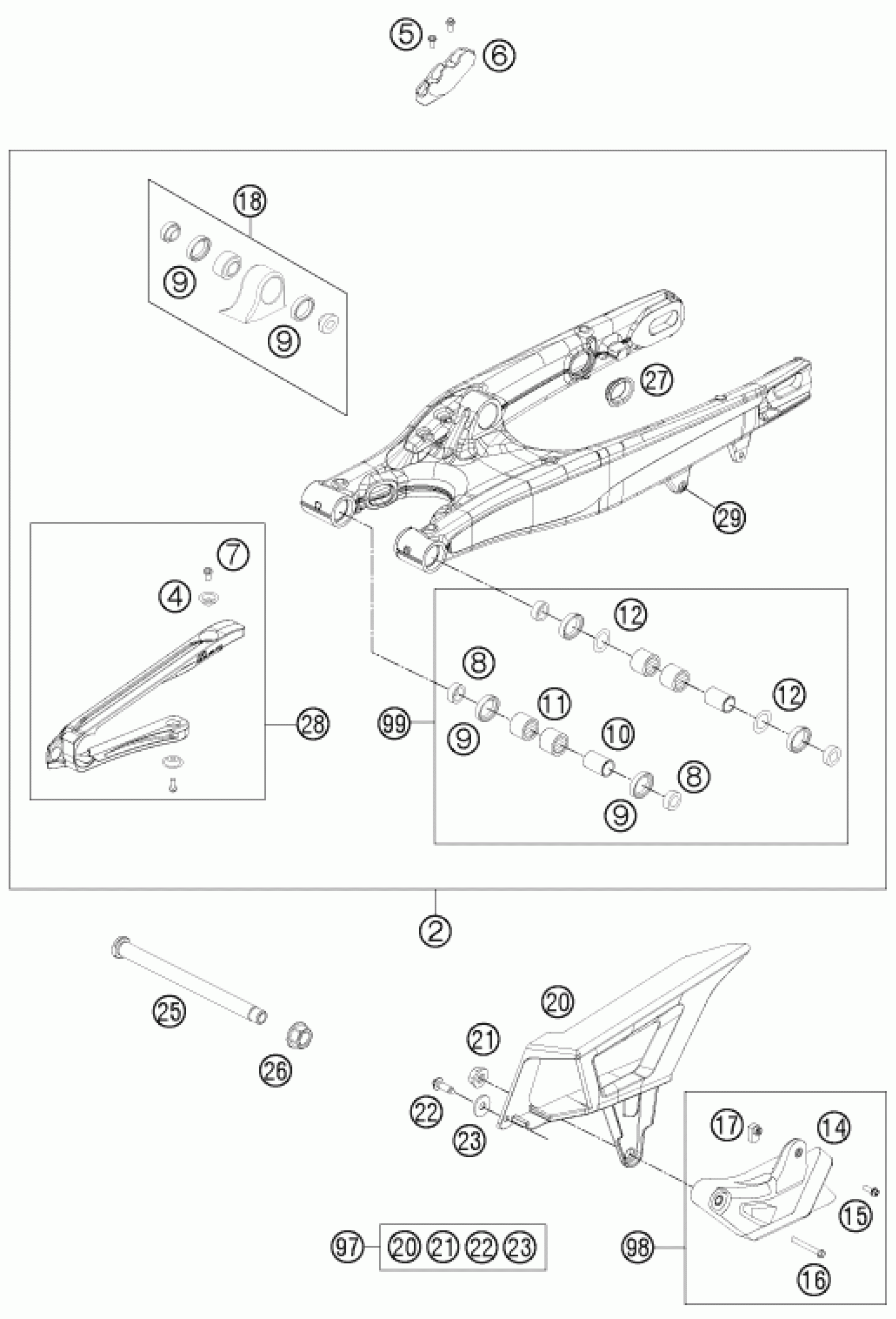

KTM 125 EXC 2013 SWING ARM Diagram

#

Description
Price

18

PIVOT BEARING+BUSH. PDS '11

50304090144

$64.69

22

EJOT PT SCREW K60X20 WS=6

0017060203

$2.05

23

Washer DIN9021-A 6.4

0021060003

$2.05

10

BUSHING SLEEVE F. SWING ARM 03

54804032000

$10.93

11

NEEDLE BEARING HK 2216

58033097000

$14.02

12

STOP DISK 22,2X31,7X1

54603036000

$3.08

14

CHAIN GUIDE CPL.

78004070100

$43.94

15

SPECIAL SCREW M6X19 WS=8 10.9

59009062019

$2.05

16

HH collar screw M6x50 TX30

0025060506

$3.08

17

INSERTION NUT F. CHAIN GUIDE

77304070030

$8.87

25

SWINGARM BOLT M16X1,5 07

77304037000

$56.65

26

Nut with flange M16X1,5 WS=19

54804038000

$2.05

27

Locking cap swingarm

77204041000

$4.11

28

CHAIN SLIDING GUARD KIT 11-15

51504066044

$28.14

29

PRESS IN NUT M6 STEEL ZINC

54603055051

$2.05

2

SWING ARM CPL. PDS 2011

51504030044

$665.38

21

Self locking nut M6 - 10

56509064100

$2.05

4

chain slider bushing

77304066050

$1.49

5

EJOT SPIRAL SCREW SF M5X10-K

0009050106

$2.05

6

BRAKE HOSE GUIDE LOWER 07

77313047000

$5.23

7

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

$2.05

8

Bucket f. shaft seal ring 03

54804034000

$5.23

9

radial shaft seal 25x32x7

0760253270

$6.63

98

Chain guide kit

77304070310

Unavailable

99

SWINGARM REPAIR KIT 05-15

54804230210

Unavailable

20

CHAINGUARD

78104060000

$10.37

97

CHAIN PROTECTION KIT EXC 12-14

78104060010

Unavailable
