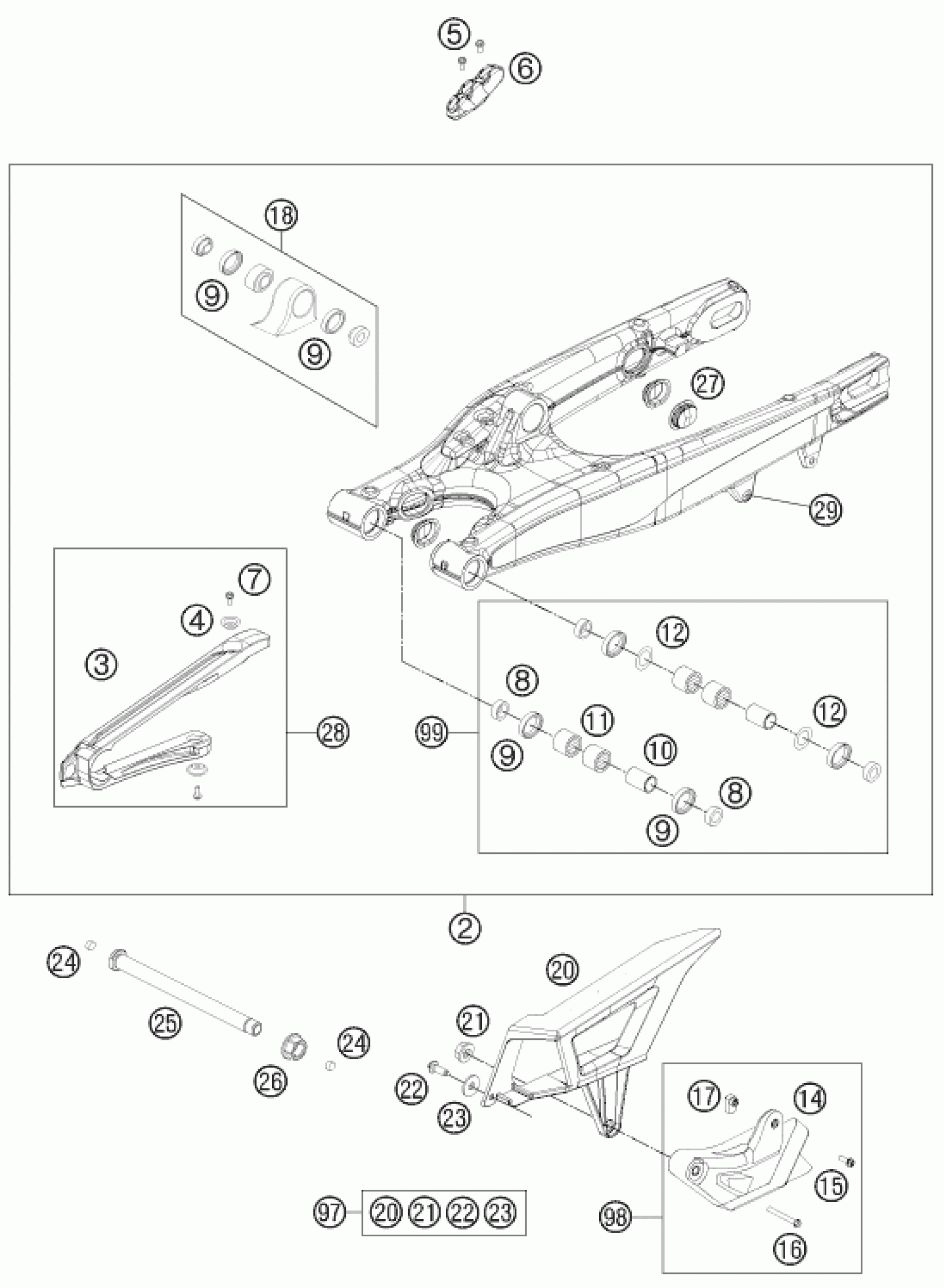

KTM 125 EXC 2012 SWING ARM Diagram

#

Description
Price

2

SWING ARM CPL. PDS 2011

51504030044

Unavailable

3

CHAIN SLID.GUARD PDS

51504066000

Unavailable

4

chain slider bushing

77304066050

Unavailable

5

EJOT SPIRAL SCREW SF M5X10-K

0009050106

Unavailable

6

BRAKE HOSE GUIDE LOWER 07

77313047000

Unavailable

7

SPECIAL SCREW M6X13 WS=8 10.9

59009062013

Unavailable

8

Bucket f. shaft seal ring 03

54804034000

Unavailable

9

radial shaft seal 25x32x7

0760253270

Unavailable

10

BUSHING SLEEVE F. SWING ARM 03

54804032000

Unavailable

11

NEEDLE BEARING HK 2216

58033097000

Unavailable

12

STOP DISK 22,2X31,7X1

54603036000

Unavailable

14

CHAIN GUIDE CPL.

78004070100

Unavailable

15

SPECIAL SCREW M6X19 WS=8 10.9

59009062019

Unavailable

16

HH collar screw M6x50 TX30

0025060506

Unavailable

17

INSERTION NUT F. CHAIN GUIDE

77304070030

Unavailable

22

EJOT PT SCREW K60X20 WS=6

0017060203

Unavailable

23

Washer DIN9021-A 6.4

0021060003

Unavailable

18

PIVOT BEARING+BUSH. PDS '11

50304090144

Unavailable

20

CHAINGUARD

78104060000

Unavailable

21

Self locking nut M6 - 10

56509064100

Unavailable

24

PLUG SFL13

55009086000

Unavailable

25

SWINGARM BOLT M16X1,5 07

77304037000

Unavailable

26

Nut with flange M16X1,5 WS=19

54804038000

Unavailable

27

Locking cap swingarm

77204041000

Unavailable

28

CHAIN SLIDING GUARD KIT 11-15

51504066044

Unavailable

29

PRESS IN NUT M6 STEEL ZINC

54603055051

Unavailable

98

Chain guide kit

77304070310

Unavailable

99

SWINGARM REPAIR KIT 05-15

54804230210

Unavailable

97

CHAIN PROTECTION KIT EXC 12-14

78104060010

Unavailable
