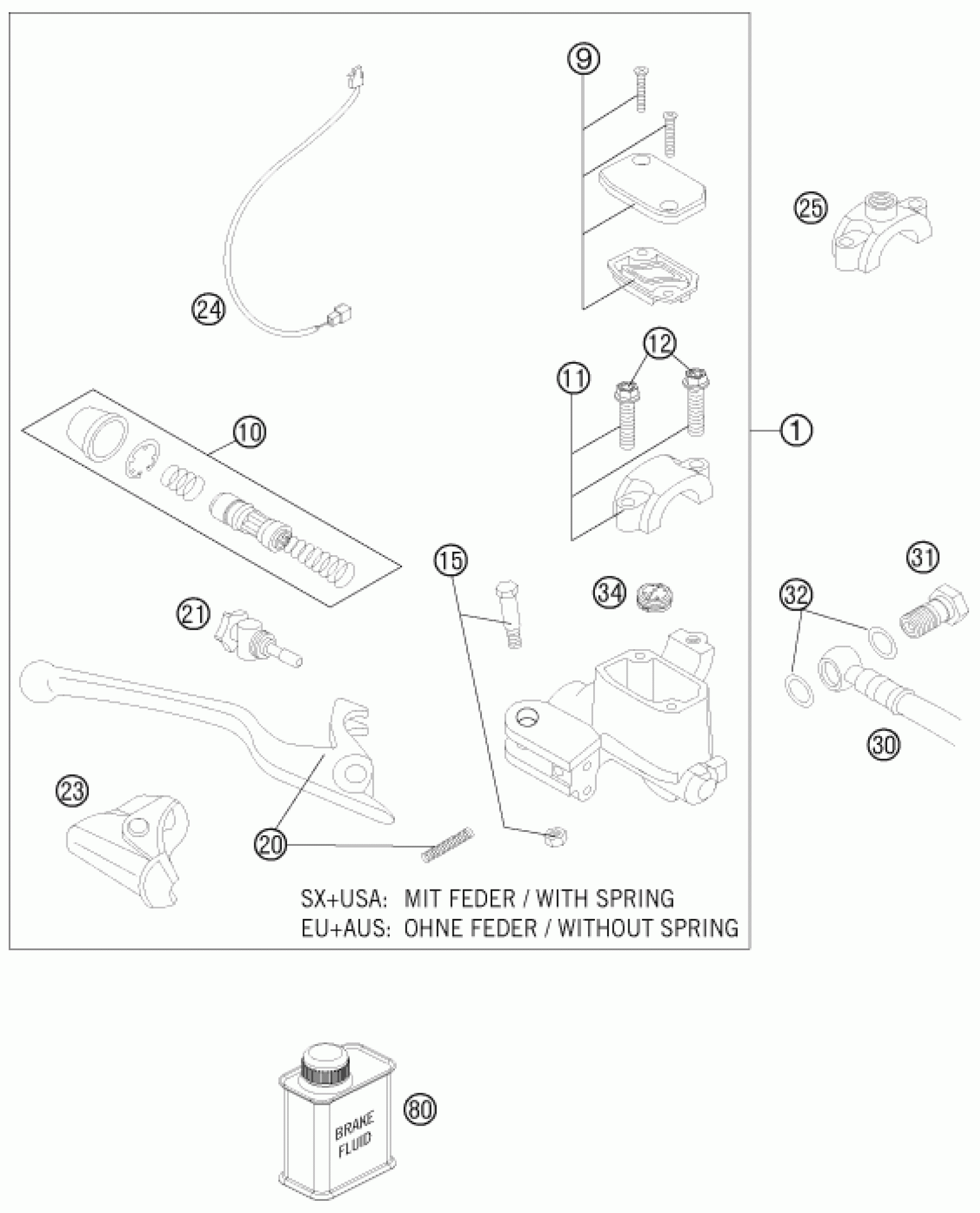

KTM 125 EXC 2012 FRONT BRAKE CONTROL Diagram

#

Description
Price

1

HAND BRAKE CYLINDER CPL.EXC 09

77013001144

Unavailable

9

HANDBRAKE CYL.COVER CPL.NATURE

50313003000

Unavailable

10

REP.SET PISTON D=9MM 2009

54813008300

Unavailable

11

CLAMP CPL. NATURE

50313005000

Unavailable

12

HH collar screw M6x25 TX30

0025060256

Unavailable

15

LEVER SCREW CPL. 2001

50313006100

Unavailable

23

PROTECTION CAP HAND BRAKE CYL.

50313004000

Unavailable

24

BRAKE LIGHT SWITCH FRONT 2002

50311050100

Unavailable

20

HAND BRAKE LEVER + SPRING 2009

54813002200

Unavailable

21

ADJUSTING SCREW CPL. SX 2009

54813007300

Unavailable

25

Clamp for mirror

58012040150

Unavailable

30

BRAKEHO. FRONT 1300MM 2000

59013011000

Unavailable

31

banjo bolt M10x1x19 black

54813020100

Unavailable

32

sealing ring DIN 7603 10x14x1

0603100141

Unavailable

34

VALVE

54802051000

Unavailable

80

Brake fluid DOT5.1 0,25L

00062030000

Unavailable
