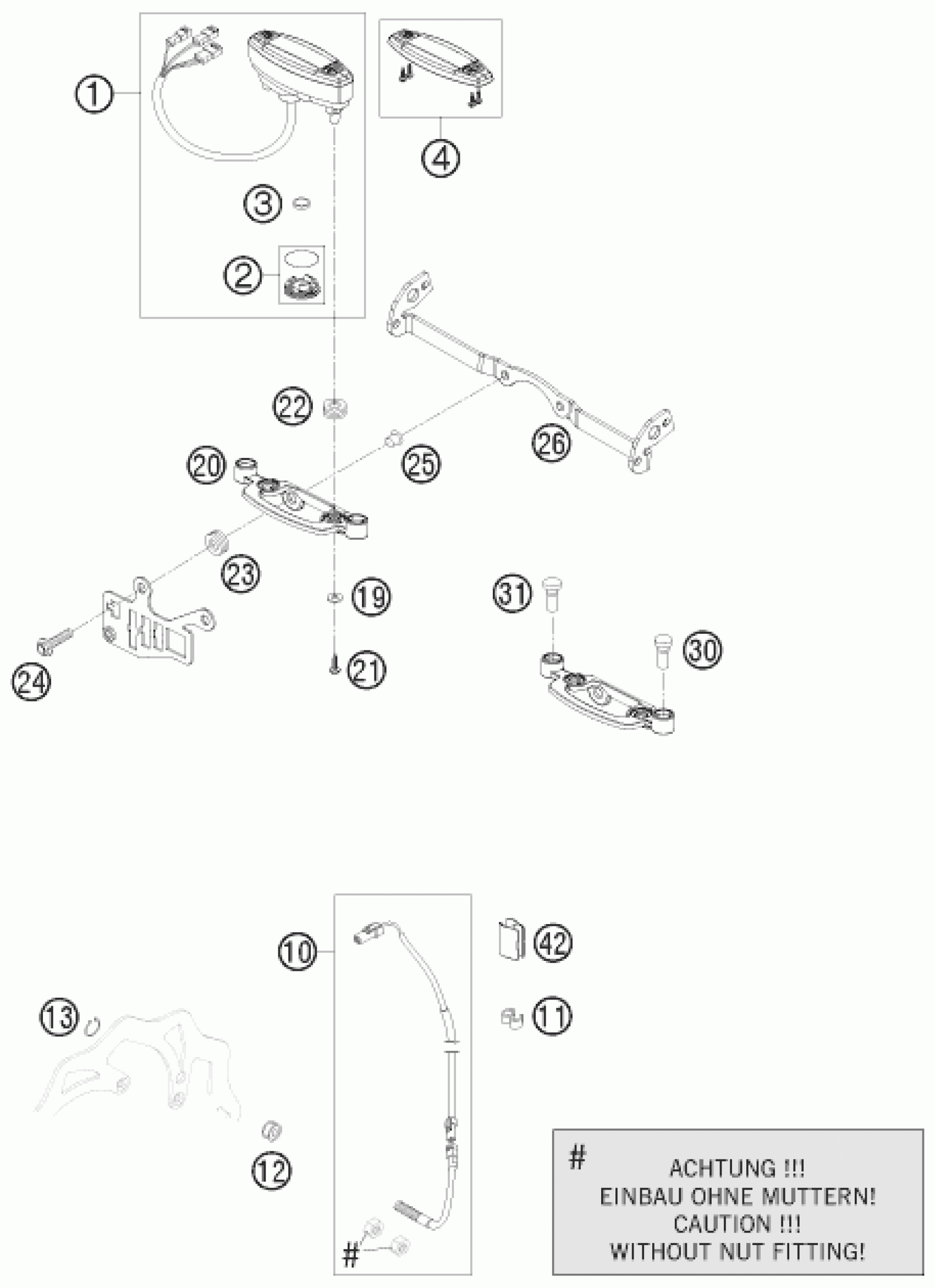

KTM 125 EXC 2008 INSTRUMENTS / LOCK SYSTEM Diagram

#

Description
Price

1

SPEEDOMETER KM/H F. 21'' 200

54814069000

Unavailable

2

BATTERY COVER F. SPEEDOM. 2005

54814069010

Unavailable

3

BATTERY F. SPEEDOM. M.A.E. 02

58314068000

Unavailable

4

SPEEDOMETER TOP PART 05

54814069020

Unavailable

10

CABLE FOR DIGITAL SPEEDOM. 06

54814068100

Unavailable

11

CLAMP D=6/8MM, BLACK

55011022100

Unavailable

12

MAGNET FOR DIGITAL SPEEDOM. 03

54814069050

Unavailable

13

CIRCLIP DIN0471- 9X1 INOX

0471009104

Unavailable

19

washer DIN 9021 A - 5.3

0021050003

Unavailable

20

SPEEDOMETER BRACKET 05

54814060000

Unavailable

21

EJOT PT screw K50x12

0081050121

Unavailable

22

rubber grommet 16x10.8x3

58214069051

Unavailable

23

rubber grommet D=8mm open

31008060000

Unavailable

24

HH COLLAR SCREW M6X25 TX30

0024060256

Unavailable

25

spacer bushing for speedometer

58314060050

Unavailable

26

FLASHER BRACKET EXC 08

78014033000

Unavailable

30

H.BEAM INDICATOR LIGHT BLUE'98

58011021300

Unavailable

31

FLASHER INDICAT.LIGHT GREEN'98

58011024300

Unavailable

42

CABLE SUPPORT 10/6MM 06

54813026000

Unavailable
