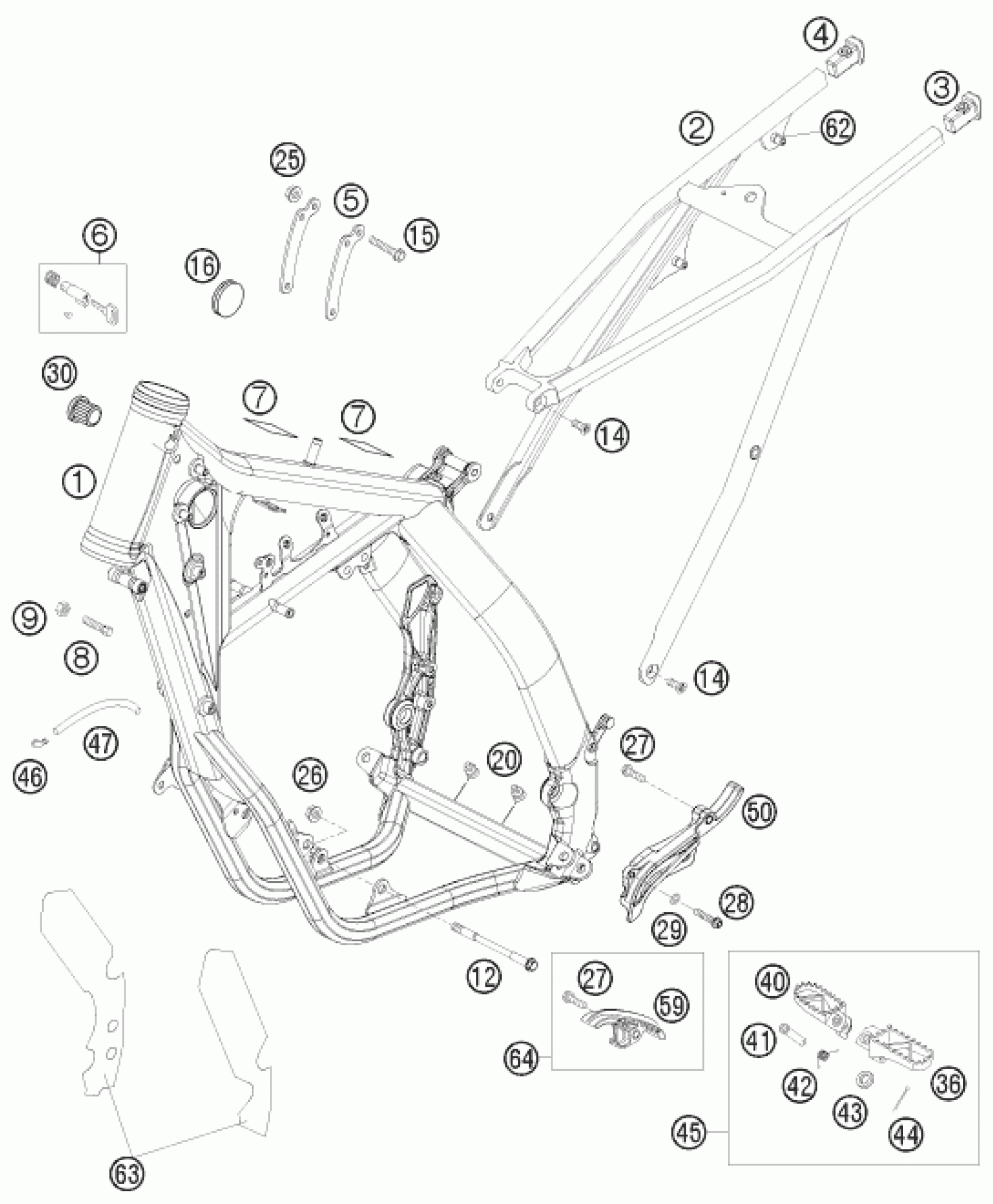

KTM 125 EXC 2008 FRAME Diagram
#
63
FRAME PROTECTION STICK. SET 07
77303094000
Unavailable
5
REINFORCING B. 125 SX 07
50303413000
Unavailable
1
FRAME 125/200 EXC-EU ''BC08''
5030340120030
Unavailable
2
SUB FRAME SX ''Q7'' 07
77303002000
Unavailable
6
STEERING HEAD LOCK 08
78003035000
Unavailable
7
ADH. FOIL TRANSP. 80X80 MM 04
50307012000
Unavailable
8
SPECIAL SCREW M8X26 WS=10
59001037000
Unavailable
9
Hexagon nut DIN934 M8
0934080003
Unavailable
29
WASHER DIN0125-A 6,4
0125060003
Unavailable
20
PLASTIC CAP SFL10
54403135000
Unavailable
50
SPROCKET COVER 250 SX 07
54803096000
Unavailable
12
engine brac.scr. M10x105 WS13
54603013000
Unavailable
14
FLAT HEAD SCREW M. ISA45 M8X20
0019080206S
Unavailable
15
HH COLLAR SCREW M 8X44 WS13
56530079000
Unavailable
16
PLUG 37MM
54606004000
Unavailable
25
Self locking nut M8 10.9
54310086200
Unavailable
26
SELF LOCKING NUT M10 CU WS=14
54310086100
Unavailable
27
HH collar screw M8x30
0025080306
Unavailable
28
HH collar screw M6x40 TX30
0025060406
Unavailable
30
PLASTIC CAP
42007049000
Unavailable
36
FOOT PEG L/S SILVER 02
59003040250
Unavailable
40
FOOT PEG R/S SILVER 02
59003041250
Unavailable
41
PIN FOR FOOT PED 51.5X9.8 MM
54803044000
Unavailable
42
FOOTREST SPRING L/S & R/S
54603041000
Unavailable
43
washer DIN 125 A 10.5
0125100003
Unavailable
44
PIN DIN0094-3,2X25 STEEL
0094032253
Unavailable
45
FOOTPEG L.+R. CPL. 03
5030314013390
Unavailable
46
ANGLE PIECE '97
50303089000
Unavailable
47
PVC-HOSE 7X10 PER METER
55007016001
Unavailable
59
Chain sliding piece, bottom
77303053000
Unavailable
64
CHAIN SLIDING KIT BELOW CPL07
77303053010
Unavailable
62
BLIND RIVET NUT EM6-60LF/HX
77303139000
Unavailable
3
SUB FRAME APPLICATION R/S 08
78003002020
Unavailable
4
SUB FRAME APPLICAT. LEFT 08
78003002010
Unavailable
