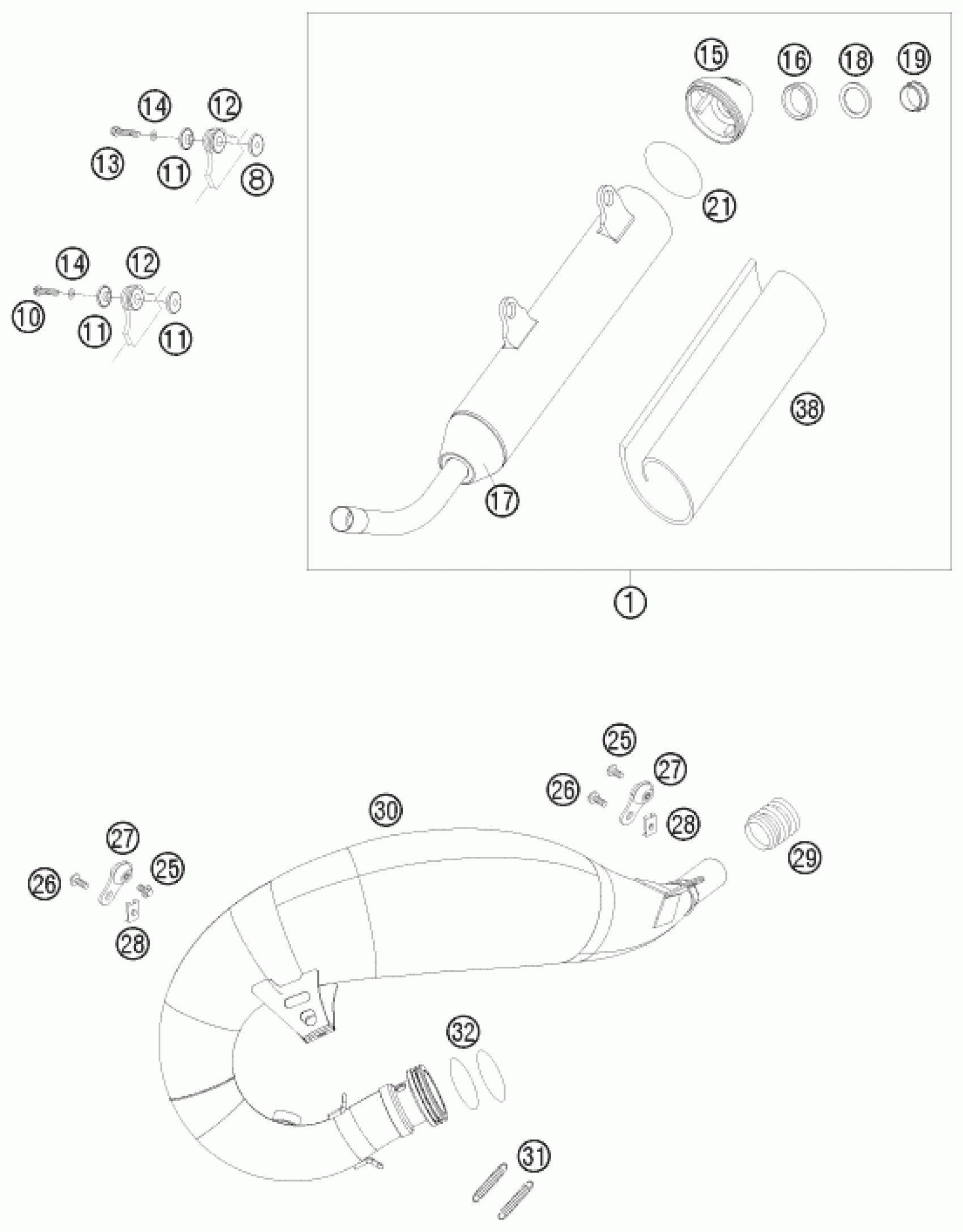

KTM 125 EXC 2008 EXHAUST SYSTEM Diagram

#

Description
Price

1

EXH. SILEN. 125 EXC SIXDAYS 04

50305083100

Unavailable

10

HH collar screw M6x30 TX30

0025060306

Unavailable

11

BUSHING 7.5x12x28x7.6 07

77305069000

Unavailable

12

EXHAUST BRACKET RUBBER BLACK

54605068000

Unavailable

14

spring washer DIN 137 B - 6

0137060003

Unavailable

15

SILENCER ENDCAP 2-STROKE 2004

54805079052

Unavailable

16

SILCENCER RUBBER 2-STROKE 2005

54805079150

Unavailable

17

SILENCER CONNECTING-CAP 2004

54805079060

Unavailable

18

SILENCER DISC 2004

54805083060

Unavailable

19

SILENCER SCREW 2-STROKE 2004

54805079058

Unavailable

21

0-RING 55,00X2,00 NBR70

0770055020

Unavailable

38

STUFFING YARN-SET 330 GRAM 04

54805078330

Unavailable

25

HH COLLAR SCREW M6X10 TX30

0024060106

Unavailable

26

HH collar screw M6x15 TX30

0024060156

Unavailable

27

Silent block for exhaust pipe

50305012000

Unavailable

28

clip nut M6

54603048100

Unavailable

29

SILICON SLEEVE D=25/27MM

54605157000

Unavailable

30

EXHAUST PIPE 125EXC DW CPL. 08

50305009500

Unavailable

31

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

Unavailable

8

BUSHING SIL.-SMR REAR 2004

59405169000

Unavailable

13

HH collar screw M6x35 TX30

0025060356

Unavailable

32

O-RING 44,00X3,00 VITON

0770440030

Unavailable
