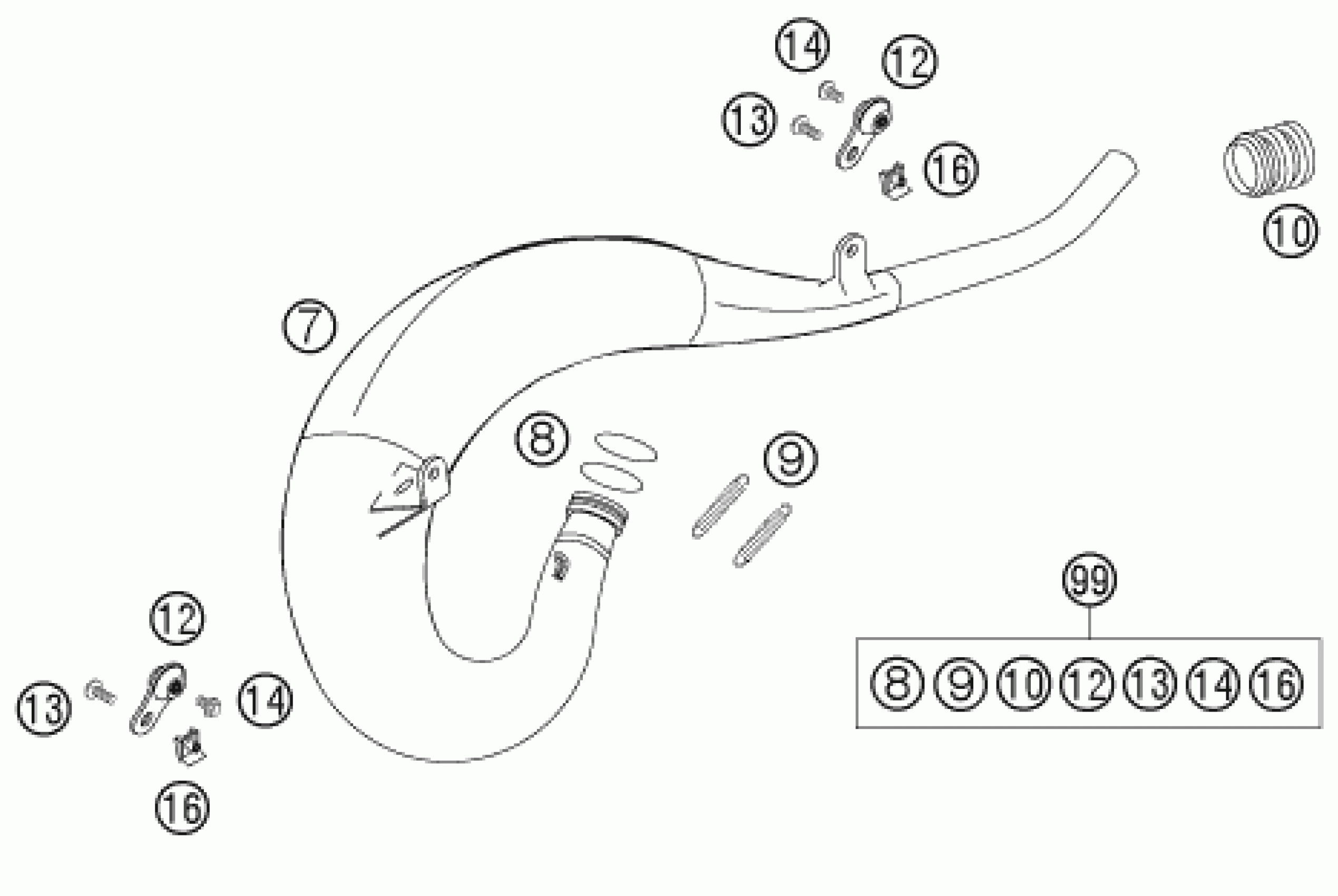

KTM 125 EXC 2007 EXHAUST SYSTEM Diagram

#

Description

Price

7

EXHAUST PIPE CPL. 125 SX2004

50305007200

Unavailable

7

EXHAUST PIPE NICKEL K503 K 06

50305009400

Unavailable

8

O-RING 44,00X3,00 VITON

0770440030

Unavailable

9

TEN.SPRING L=62MM EY.MOVEABLE

50305016000

Unavailable

10

RUBBER SLEEVE D=21MM/23MM '93

54605057000

Unavailable

12

Silent block for exhaust pipe

50305012000

Unavailable

13

HH COLLAR SCREW M 6X15 WS=8

0014060153

Unavailable

14

HH COLLAR SCREW M 6X10 WS=8

0014060103

Unavailable

16

clip nut M6

54603048100

Unavailable

99

EXHAUST HARDWARE KIT 05-15

00050000810

Unavailable
