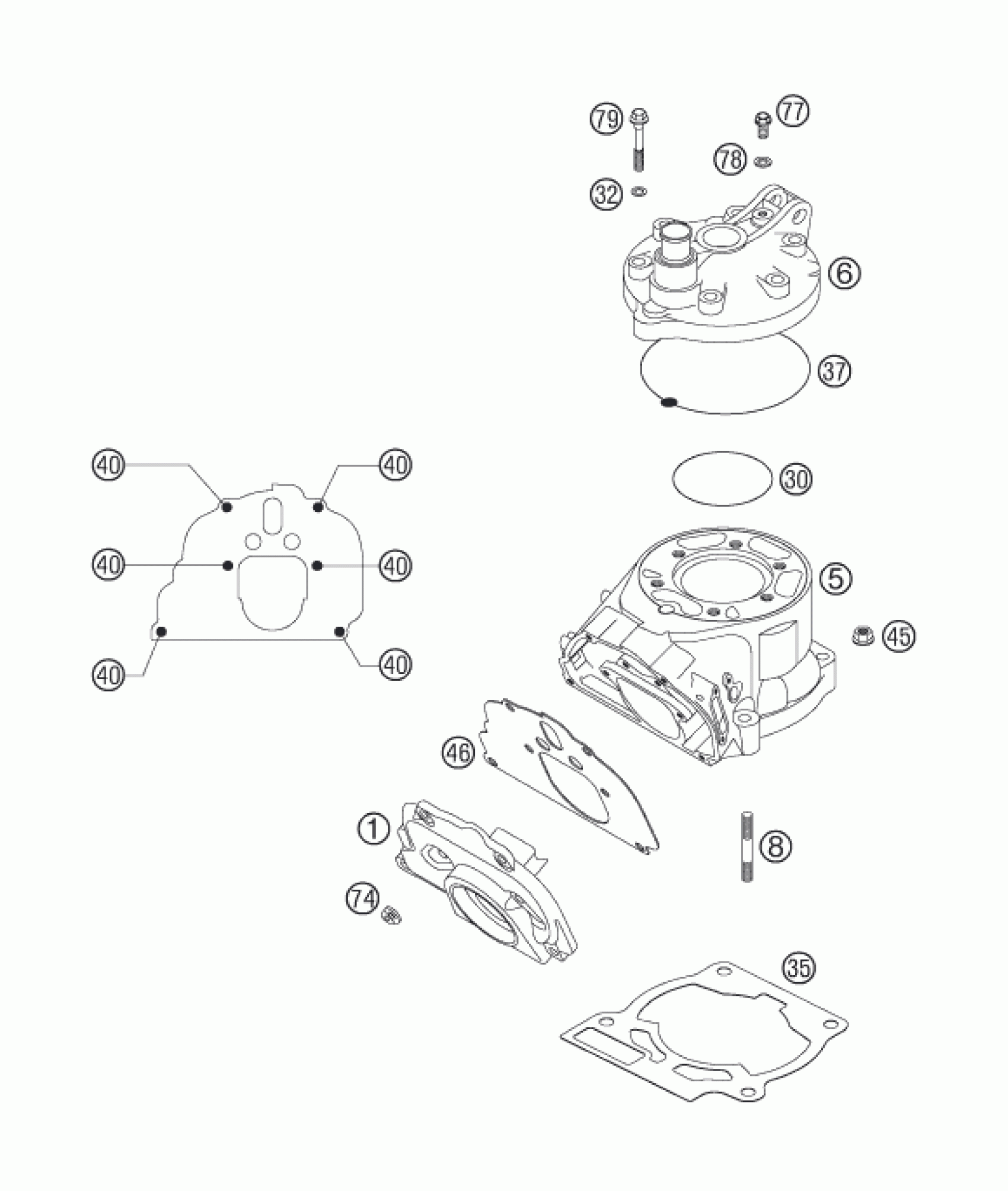

KTM 125 EXC 2006 CYLINDER, CYLINDER HEAD Diagram

#

Description
Price

1

INTERMEDIATE FLANGE 125 06

50337001200

Unavailable

5

CYLINDER 125 06

50330005400

Unavailable

6

CYLINDER HEAD 125 SX/EXC 2002

50330006400

Unavailable

8

STUD DIN0835-M 8X27

0835080273

Unavailable

30

O-RING 62,00X2,00 VITON

0770062020

Unavailable

40

HH COLLAR SCREW M 5X20 WS=8

0015050203

Unavailable

45

HH COLLAR NUT M 8 WS=12

50330045000

Unavailable

46

INTERMED. GASKET 125 06

50337046200

Unavailable

32

CU-SEAL RING 7,3 X 12 X 0,5

50230032010

Unavailable

35

CYLINDER BASE GASKET 0,20MM

50330035020

Unavailable

35

CYLINDER BASE GASKET 0,25MM

50330035025

Unavailable

35

CYLINDER BASE GASKET 0,40MM

50330035040

Unavailable

35

CYLINDER BASE GASKET 0,50MM

50330035050

Unavailable

35

CYLINDER BASE GASKET 0,75MM

50330035075

Unavailable

37

CYL.HEAD SEAL RING 125 2002

50330137000

Unavailable

74

RETAINING PLATE

51005074000

Unavailable

77

HH COLLAR SCREW M 6X10 WS=8

0015060103

Unavailable

78

CU-SEAL RING DIN7603-6X10X1

0603061001

Unavailable

79

CYL. HEAD BOLT M 7X40 WS=10

50030079000

Unavailable
