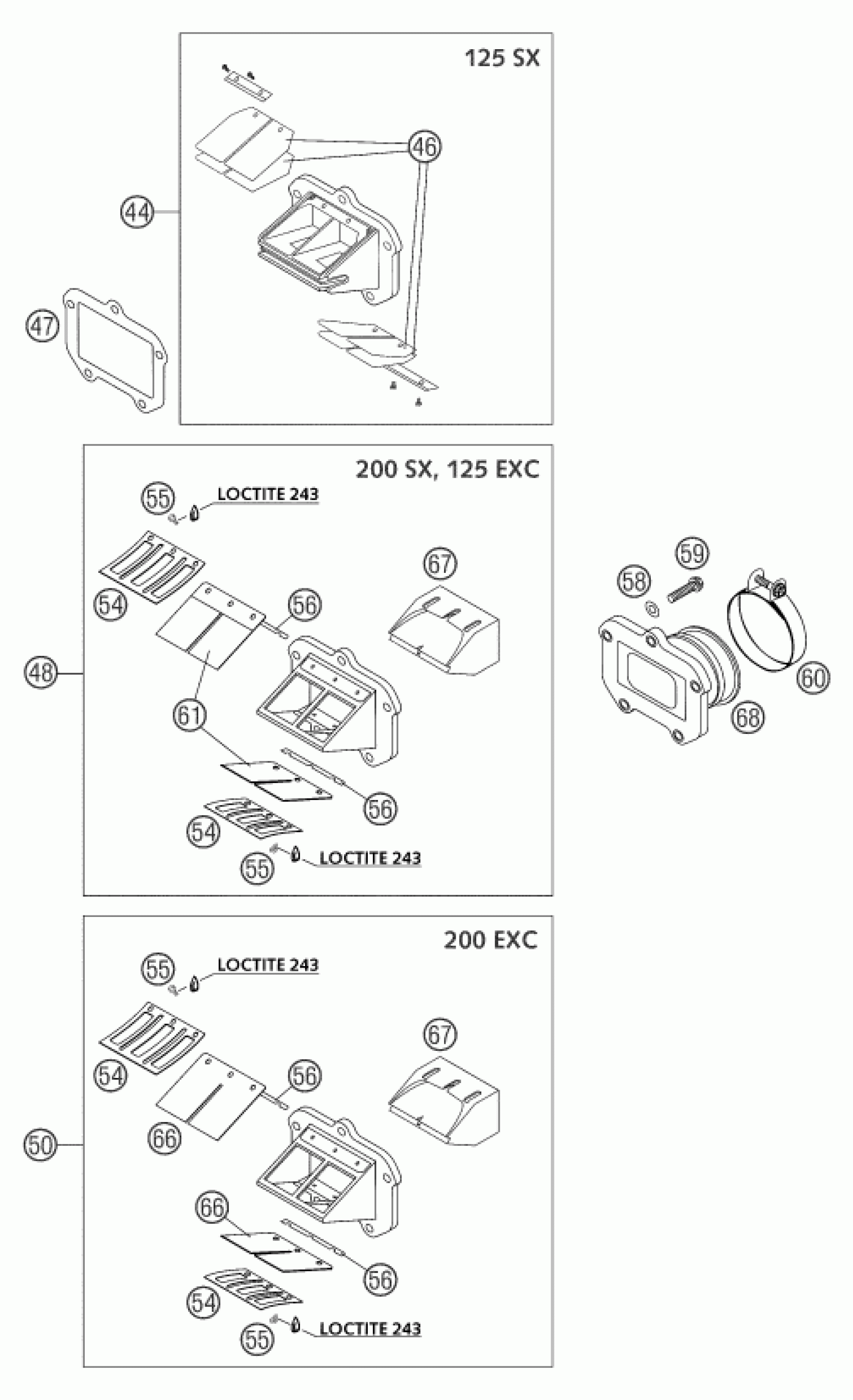

KTM 125 EXC 2004 REED VALVE CASE Diagram

#

Description
Price

44

REED VALVE ASSY CPL.V-FORCE 04

50330051344

Unavailable

46

REED VALVE SET V-FORCE 2004

50330052144

Unavailable

47

GASKET REED V.PLATE V-FORCE 04

50330098050

Unavailable

48

REED VALVE ASSY CPL. 2000

50330051244

Unavailable

50

REED VALVE ASSY CPL. 2001

52330051144

Unavailable

54

STOP PLATE TOP

54630053000

Unavailable

55

CYL.HEAD SCREW DIN0084-M 4X 6A

0084040063

Unavailable

56

PAPER STRIP

54230056000

Unavailable

58

spring washer DIN 137 B - 6

0137060003

Unavailable

59

HH COLLAR SCREW M 6X25 WS=8

0015060253

Unavailable

60

Hose clip GEMI 52mm

54330061000

Unavailable

61

REED VALVE SET 0,44MM 2000

50330052044

Unavailable

66

REED VALVE CARBON 0,4MM '99

54730052040

Unavailable

67

REED VALVE INSERT 2000

50330054100

Unavailable

68

INTAKE FLANGE 2000

50330050200

Unavailable
