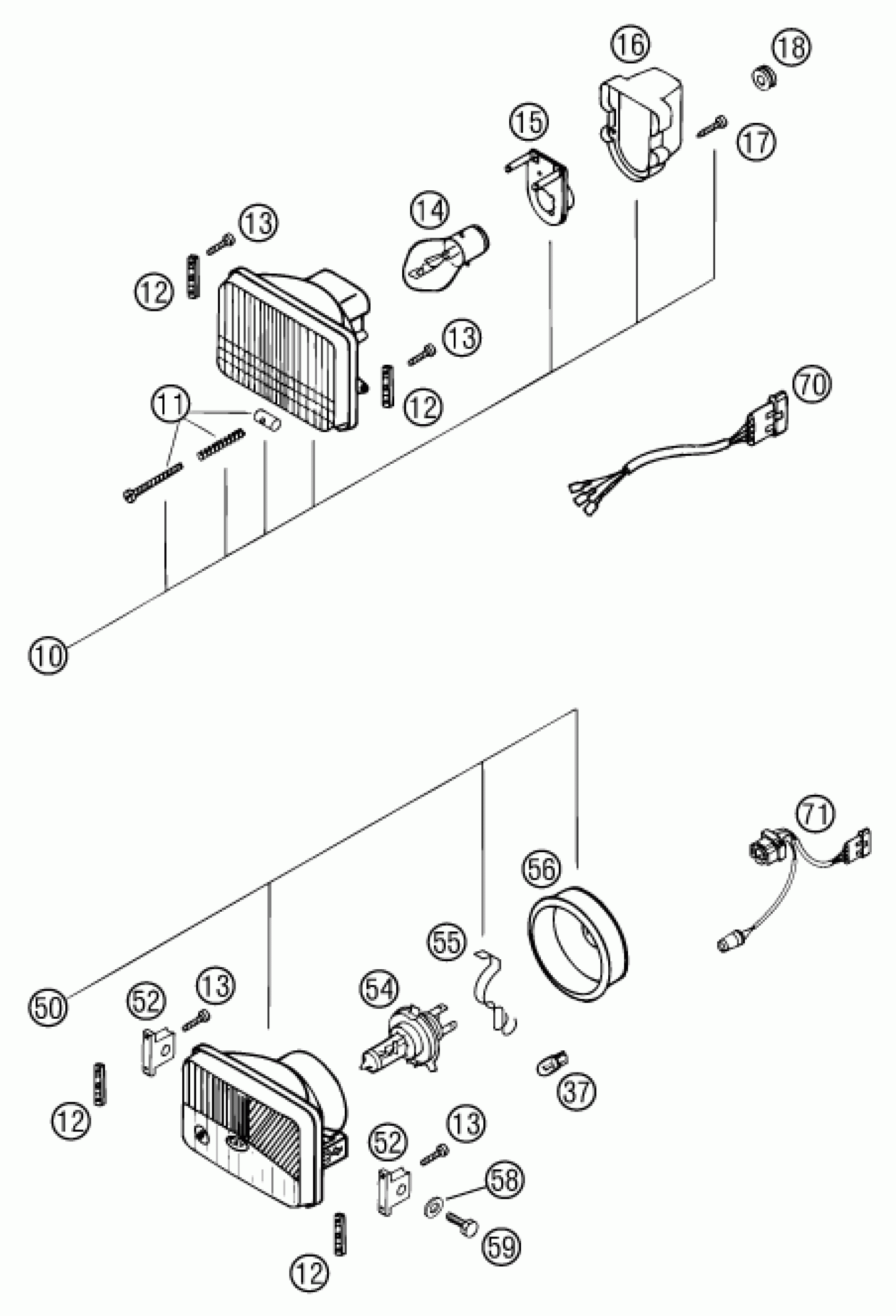

KTM 125 EXC 2002 LIGHTING SYSTEM Diagram

#

Description
Price

10

HEADLIGHT CPL. ELCOM '93

50211610000

Unavailable

11

ADJUSTING SCREW CPL. M4X40

50211631000

Unavailable

12

HEADLIGHT BRACKET '93

50211410050

Unavailable

13

SCREW FOR PLASTIC D=4X18

0016040183

Unavailable

14

BILUX-BULB 12V 35/35W BA20D

44111038000

Unavailable

15

BULB SOCKET

57011036000

Unavailable

16

COVER CAP

50211637000

Unavailable

17

SHEET MET.SCR.DIN7981-3,5X13

0981350133

Unavailable

18

rubber grommet D=8mm open

31008060000

Unavailable

37

BULB 12V 5W (W2,1X9,5D)

49011435000

Unavailable

52

HEAD LIGHT SUPPORT 2001

58414010100

Unavailable

54

BULB HS1 12V 35/35W WHITE

54611038012

Unavailable

55

BULB HOLDER

49011436100

Unavailable

50

HEAD LIGHT 186(RI)''1003202 R'

59014002000

Unavailable

50

HEAD LIGHT 186(LE)''1003203 L'

59014002100

Unavailable

56

RUBBER CAP

50211537000

Unavailable

58

WASHER DIN0125-A 6,4

0125060003

Unavailable

59

HH SCREW DIN0933-M 6X20

0933060203

Unavailable

70

* CABLE FOR HEADLIGHT '93

50211610010

Unavailable

71

* CABLE FOR HEADLIGHT '93

50211510010

Unavailable
