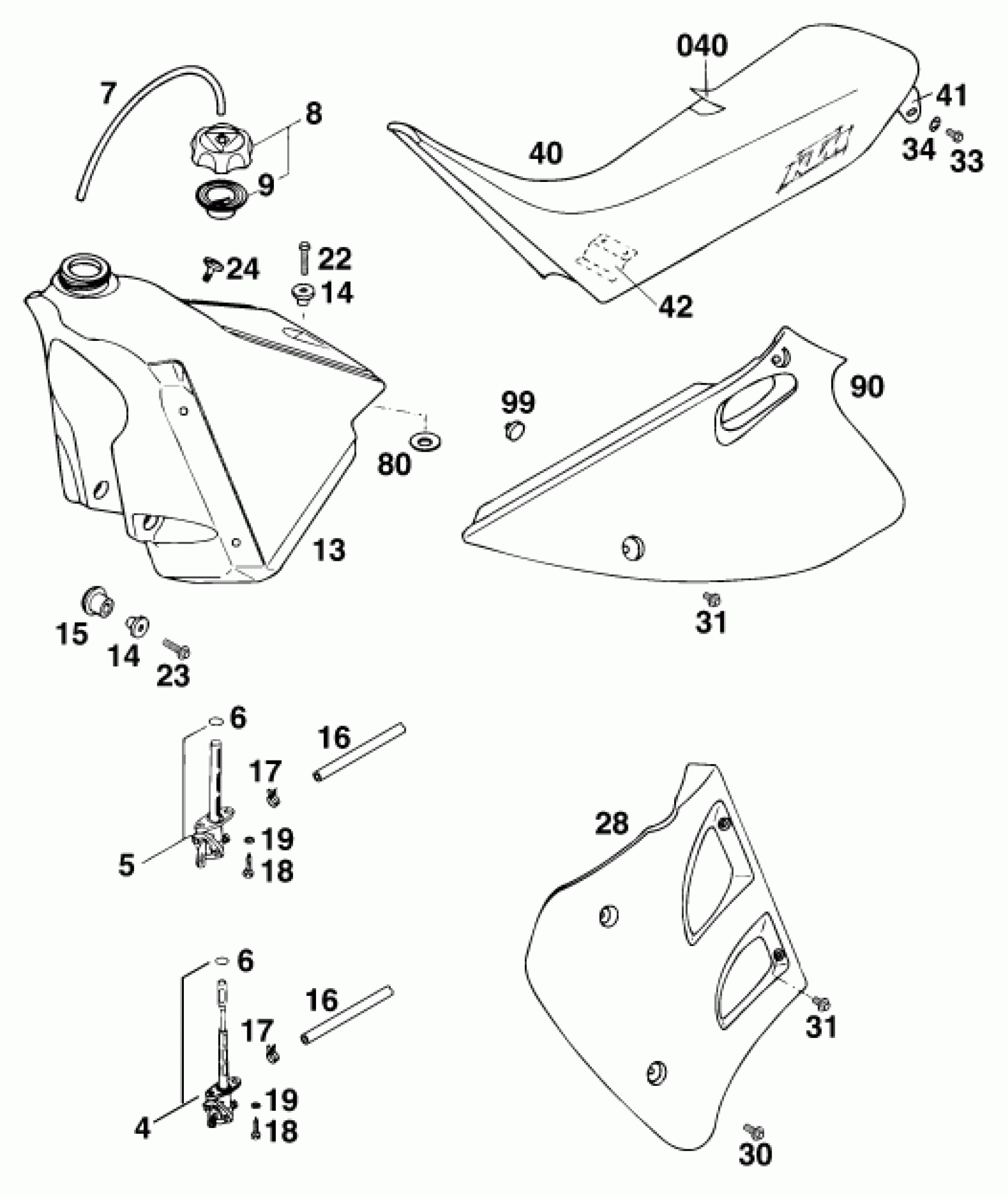

KTM 125 EGS M/Ö <1996> TANK, SEAT Diagram

#

Description
Price

0

* REAR SEAT BRACKET R/S

50207541000

Unavailable

0

SIDE COVER R/S 125 '96

5020847500002

Unavailable

0

SPOILER R/S ORANGE 125 '96

5023542900002

Unavailable

4

FUEL COCK CPL. OFF-ON-RES

58307105200

Unavailable

5

GAS COCK CPL. OFF-ON

55007005300

Unavailable

6

O-RING 11X1,8 NBR 70

55007006200

Unavailable

7

PVC-HOSE 6X9 MM PER METER

31007107001

Unavailable

8

FILLER CAP CPL. SMALL

49007008044

Unavailable

9

% GASKET FOR FILLER CAP

49007009000

Unavailable

13

GASTANK ORANGE 9 LITERS '96

5020701370002

Unavailable

14

BUSHING

54635036000

Unavailable

15

rubber bushing

56401040000

Unavailable

16

FUEL HOSE VITON 7X2MM

58007016001

Unavailable

17

YDNAC-CLAMP 10107 10MM

58007117000

Unavailable

18

HH S.MET.SCREW DIN7676- 5,5X

0676550223

Unavailable

19

TOOTH LOCK WASH. DIN6797-J 5,3

0797050003

Unavailable

22

HH COLLAR SCREW M 6X30 SW=8

0015060303

Unavailable

23

HH COLLAR SCREW M 6X25 WS=8

0014060253

Unavailable

24

OVAL HEAD SCREW M6X17

54507011000

Unavailable

28

SPOILER L/S ORANGE 125 '96

5023542800002

Unavailable

30

HH COLLAR SCREW M 6X15 WS=8

0014060153

Unavailable

31

HH COLLAR SCREW M 6X10 WS=8

0014060103

Unavailable

33

HH COLLAR SCREW M 6X12 WS=8

0015060123

Unavailable

34

Pair of washers M6 NORDLOCK

50233041000

Unavailable

40

SEAT 125 CCM STANDARD '96

50207440300

Unavailable

40

SEAT COVER STANDARD '96

50207440350

Unavailable

40

SEAT 125 CCM LOW '96

50207440400

Unavailable

40

SEAT COVER LOW '96

50207440450

Unavailable

41

REAR SEAT BRACKET L/S

50207441000

Unavailable

42

* SEAT BRACKET FRONT

54607042000

Unavailable

80

INSOLATE WASHER 12X28X3

51005067100

Unavailable

90

SIDE COVER L/S 125 '96

5020844100002

Unavailable

99

RUBBER BUFFER

54308042000

Unavailable
