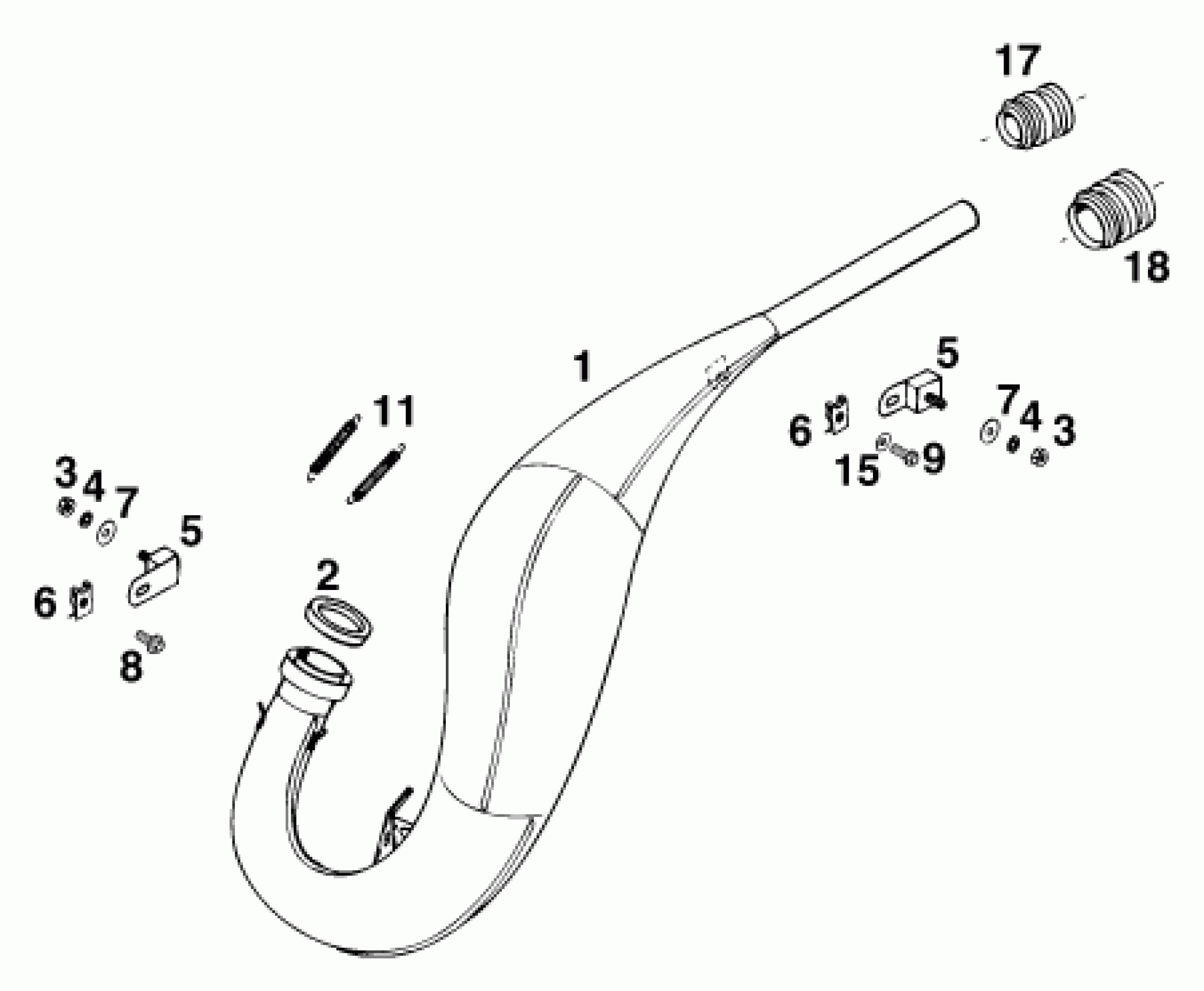

KTM 125 EGS M/Ö <1996> EXHAUST SYSTEM Diagram

#

Description
Price

1

EXHAUST PIPE '94/95 NICKEL

50205070400

Unavailable

1

EXHAUST PIPE '94 NICKEL '94

50205170400

Unavailable

1

EXHAUST PIPE NICKEL KTM 502

50205670400

Unavailable

1

* EXH.PIPE NICKEL KTM 502 '96

50205670600

Unavailable

2

* SILICON SEAL RING 48/38/6

50205050000

Unavailable

3

Hex. nut DIN 934 M6

0934060003

Unavailable

4

TOOTH LOCK WASH. DIN6797-A 6,4

0797060003

Unavailable

5

SILENTBLOCK FOR EXHAUST

54605262000

Unavailable

6

clip nut M6

54603048100

Unavailable

7

Washer DIN9021-A 6.4

0021060003

Unavailable

8

HH COLLAR SCREW M 6X15 WS=8

0014060153

Unavailable

9

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable

11

TENSION SPRING L=55MM

51005063000

Unavailable

15

spring washer DIN 137 B - 6

0137060003

Unavailable

17

RUBBER SLEEVE D=21MM/23MM '93

54605057000

Unavailable

18

SILICON SLEEVE D=29/31MM

50205057000

Unavailable
