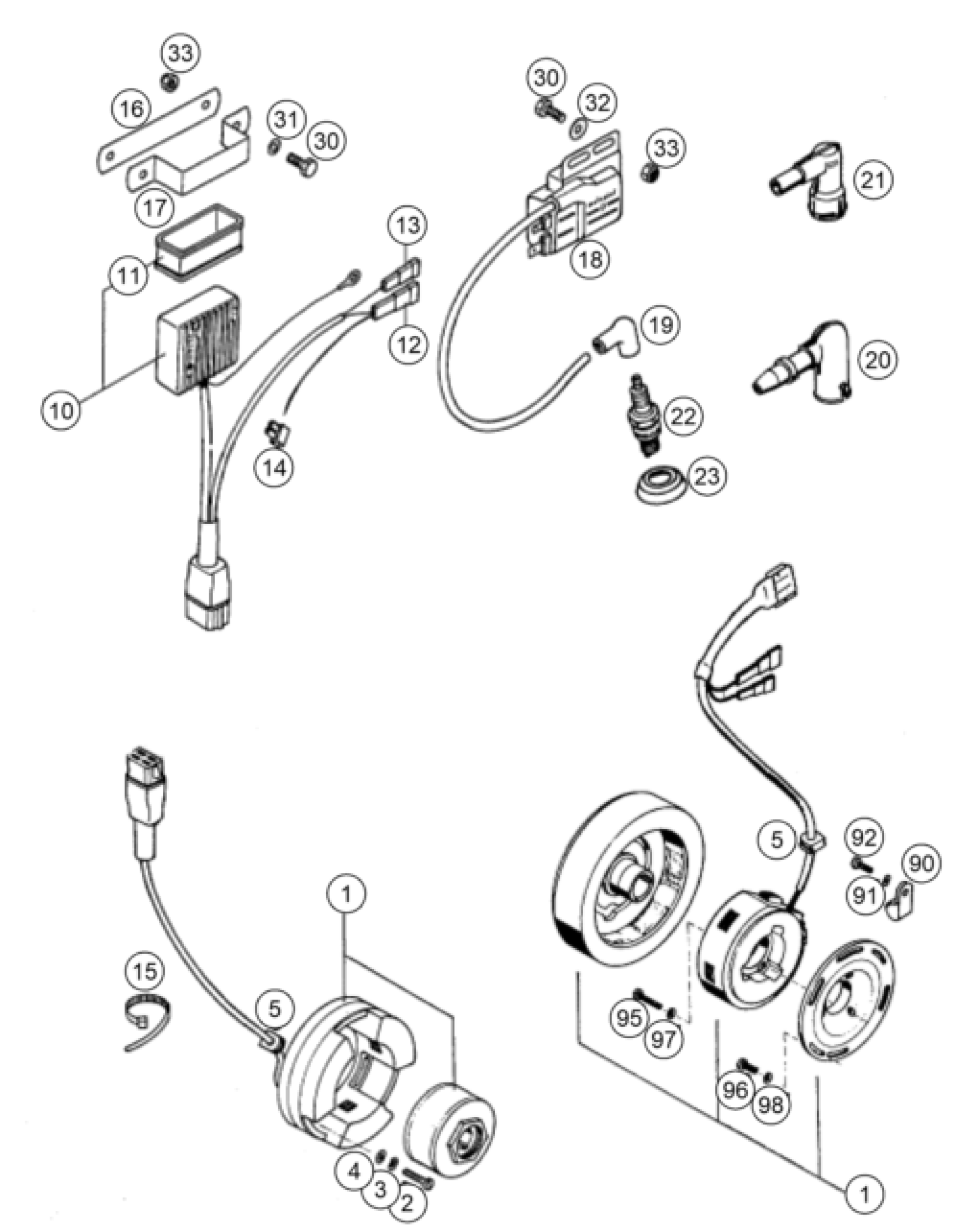

KTM 125 E-XC <1994> IGNITION SYSTEM Diagram

#

Description
Price

1

% IGNITION MOTOPLAT 0619310 '

50131102200

Unavailable

1

* IGNITION CPL. MOTOPLAT 06160

50131002100

Unavailable

2

PAN HEAD SCREW DIN85 M5x20

0085050203

Unavailable

3

* SPRING WASHER DIN0137-B 5

0137050003

Unavailable

4

WASHER DIN0125-A 5,3

0125050003

Unavailable

5

* CABLE GUIDE

51031004000

Unavailable

10

IGNITION MODUL 9365402 1 '89

50231031100

Unavailable

11

* RUBBER STRAP

49031031051

Unavailable

12

* SOCKET CONNECTOR LARGE

51031011000

Unavailable

13

* SOCKET CONNECTOR SMALL

51031005000

Unavailable

14

* JUNCTION BLOCK

10011072100

Unavailable

15

* CABLE TIE 180MM

44011076180

Unavailable

16

* BRACKET IGNITION MODUL

50231013000

Unavailable

17

* BRACKET BENT IGNITION MODUL

50231113000

Unavailable

18

*IGNITION COIL

51031006200

Unavailable

19

* SPARK PLUG CAP

51031010100

Unavailable

20

SPARK PLUG CAP MERIT

51031010200

Unavailable

21

51031010300

Unavailable

22

SPARK PLUG W07CS (370S2S)

56031093370

Unavailable

23

SEALING CUP FOR SPARK PLUG

50231012000

Unavailable

30

HH SCREW DIN0933-M 6X16

0933060163

Unavailable

31

WASHER DIN0125-A 6,4

0125060003

Unavailable

32

Washer DIN9021-A 6.4

0021060003

Unavailable

33

Self lock. nut DIN985-M6-A2

0985060003

Unavailable

90

PVC-CLAMP 7/16'' HEYCO 3377

57013070000

Unavailable

91

WASHER DIN0125-A 5,3

0125050003

Unavailable

92

AH SCREW DIN0912-M 5X10

0912050103

Unavailable

95

* PAN HEAD SCREW DIN85 M4x20

0085040203

Unavailable

96

* PAN HEAD SCREW DIN85 M5x12

0085050123

Unavailable

97

* SPRING WASHER DIN0137-B 4

0137040003

Unavailable

98

WASHER DIN0125-A 5,3

0125050003

Unavailable
