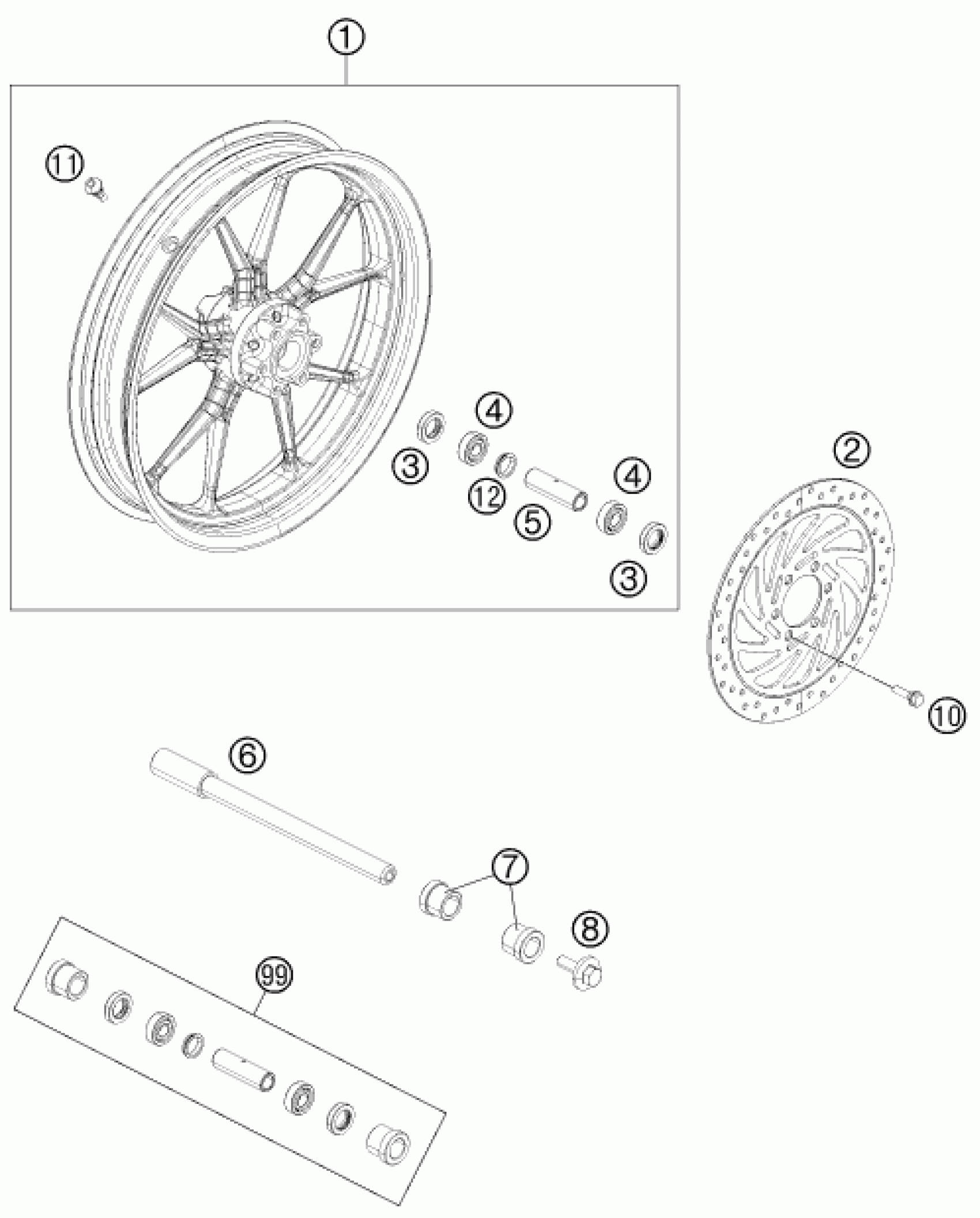

KTM 125 DUKE 2011 FRONT WHEEL Diagram

#

Description

Price

1

FRONT WHEEL CPL.

90109001044

Unavailable

2

BRAKE DISC FRONT D=280MM

90109060000

Unavailable

3

SHAFT SEAL RING 22X35X8

J760223508

Unavailable

4

BALL BEARING 6202

J625062021

Unavailable

5

Spacer front wheel

90109011000

Unavailable

6

AXLE FRONT D=15MM

90109081000

Unavailable

7

SPACER BUSHING FRONT WHEEL

90109012000

Unavailable

8

flanged bolt M8

90109082000

Unavailable

11

VALVE CPL.

90109076000

Unavailable

10

SPECIAL SCREW M8X30 SELF LOCK.

90109062000

Unavailable

99

FRONT WHEEL REP. KIT

90109015000

Unavailable

12

Fixation bearing spacer tube

90109011001

Unavailable
