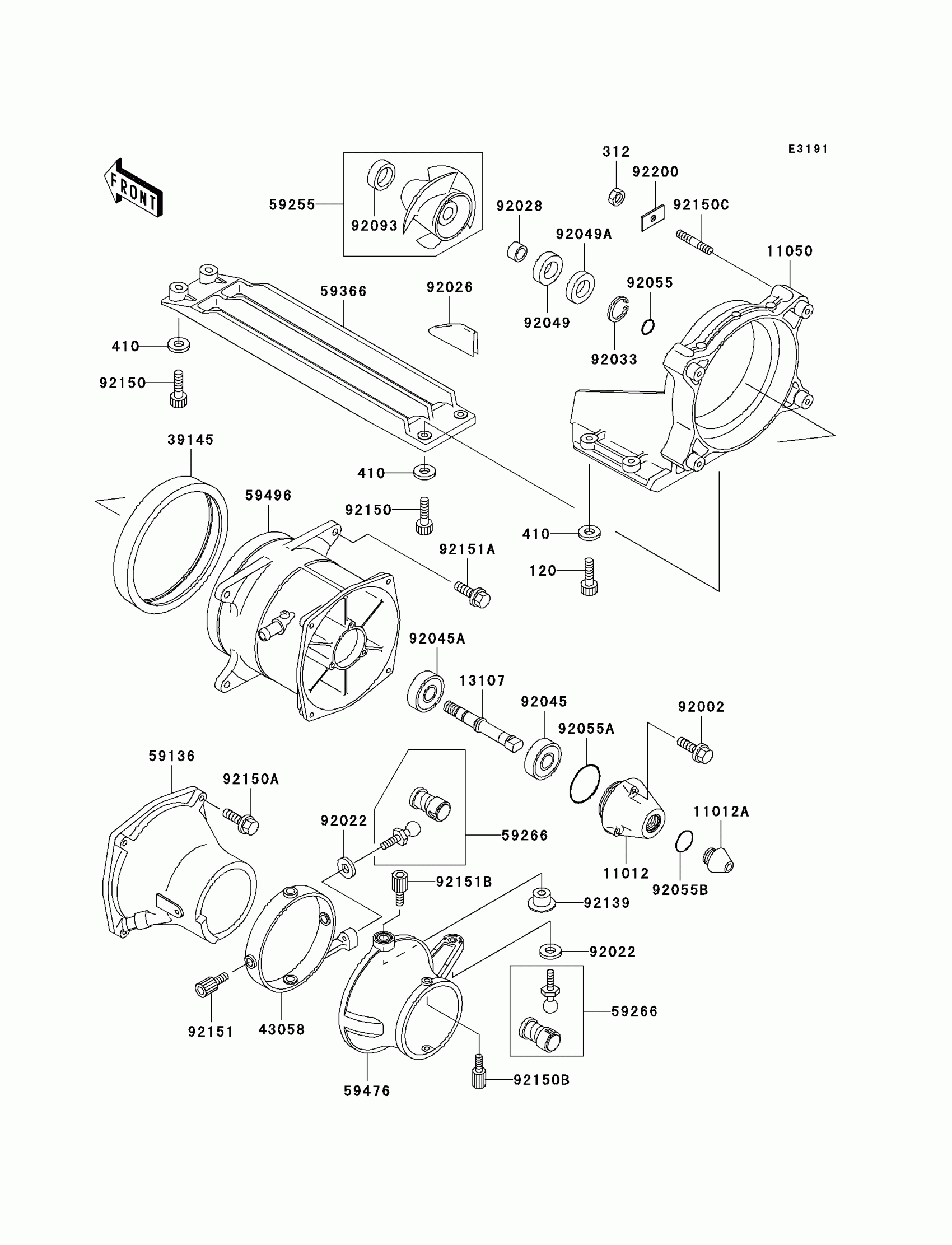

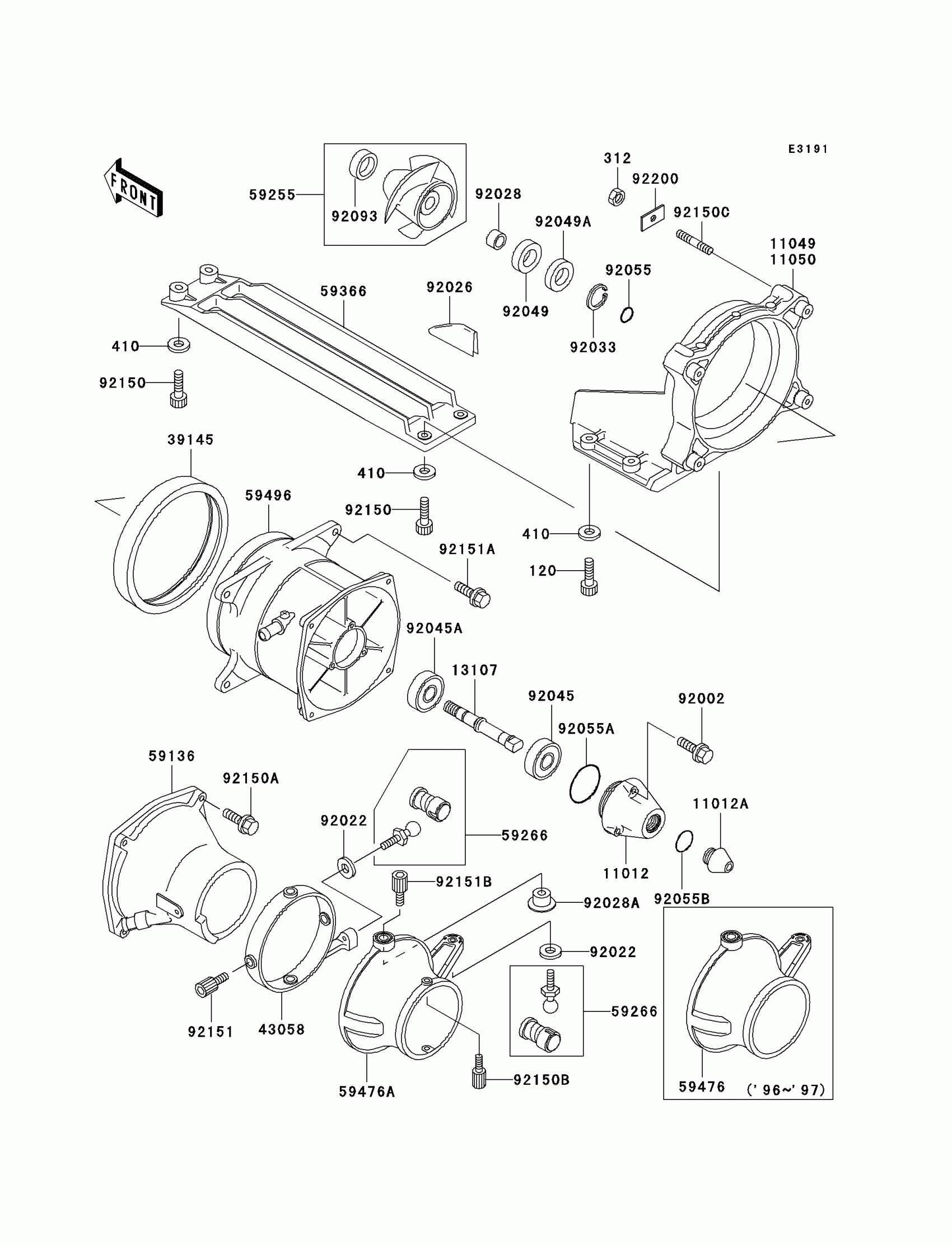

Kawasaki 1100 ZXi Jet Pump Diagram

#

Description
Price

120

BOLT-SOCKET,6X20

120R0620

$2.74

312

NUT-HEX,6MM

312R0600

$1.29

410

WASHER-PLAIN-SMALL,6MM

410S0600

Unavailable

11012

CAP

11012-3785

$50.87

11012A

CAP

11012-3786

Unavailable

11050

BRACKET

11050-3726

Unavailable

13107

SHAFT,JETPUMP

13107-3752

$79.28

39145

TRIM-SEAL

39145-3742

$40.42

43058

RING

43058-3723

$222.66

59136

NOZZLE-PUMP

59136-3736

$159.91

59255

IMPELLER-COMP

59255-3708

$618.33

59266

JOINT-BALL

59266-3707

$59.33

59366

GRATE

59366-3712

$105.63

59476A

NOZZLE-STRG

59476-3734

$78.29

59496

VANE-GUIDE

59496-3718

$394.21

92002

BOLT,6X30

92002-3726

$3.57

92022

WASHER

92022-567

$1.89

92026

SPACER

92026-3731

$12.78

92028

BUSHING

92028-3756

$41.11

92028A

BUSHING

92028-3757

$6.72

92033

RING-SNAP

92033-3725

$20.42

92045

BEARING-BALL,62022RD

92045-3721

$18.00

92045A

BEARING-BALL,6303R-6

92045-3727

Unavailable

92049

SEAL-OIL,SCJ30X50X7

92049-3720

$41.49

92049A

SEAL-OIL,SCY30X50X7

92049-3721

$38.90

92055

RING-O,13X1.9

92055-1021

$5.81

92055A

RING-O

92055-3741

$2.30

92055B

RING-O

92055-3744

$1.81

92093

SEAL,JET PUMP

92093-3739

$14.68

92150

BOLT,SOCKET,6X18

92150-3775

$3.57

92150A

BOLT,8X35

92150-3792

$5.61

92150B

BOLT

92150-3808

Unavailable

92150C

BOLT

92150-3829

$5.22

92151

BOLT

92151-3705

$14.25

92151A

BOLT,10X30

92151-3706

$5.71

92151B

BOLT

92151-3710

$16.88

92200

WASHER

92200-3740

$4.12
