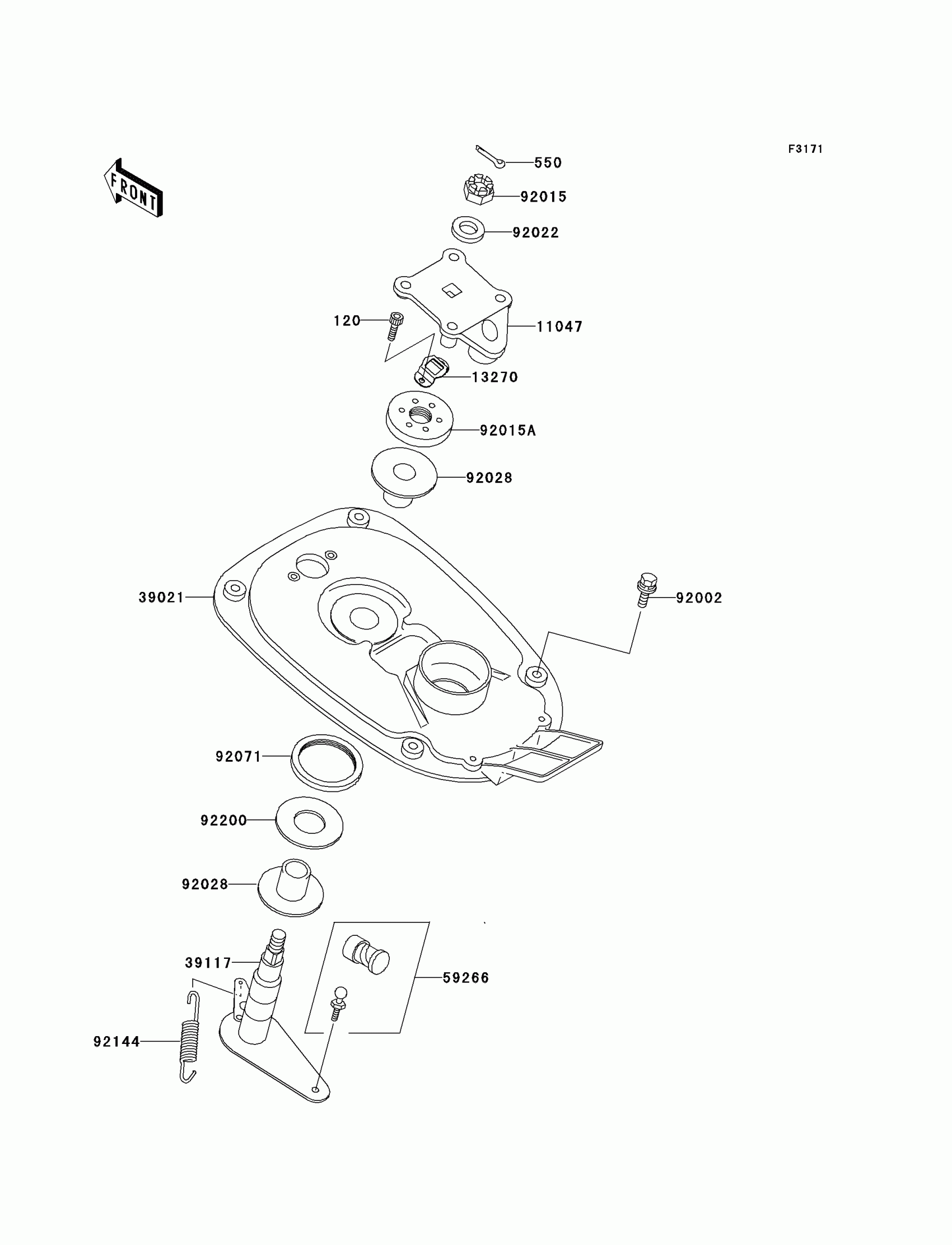

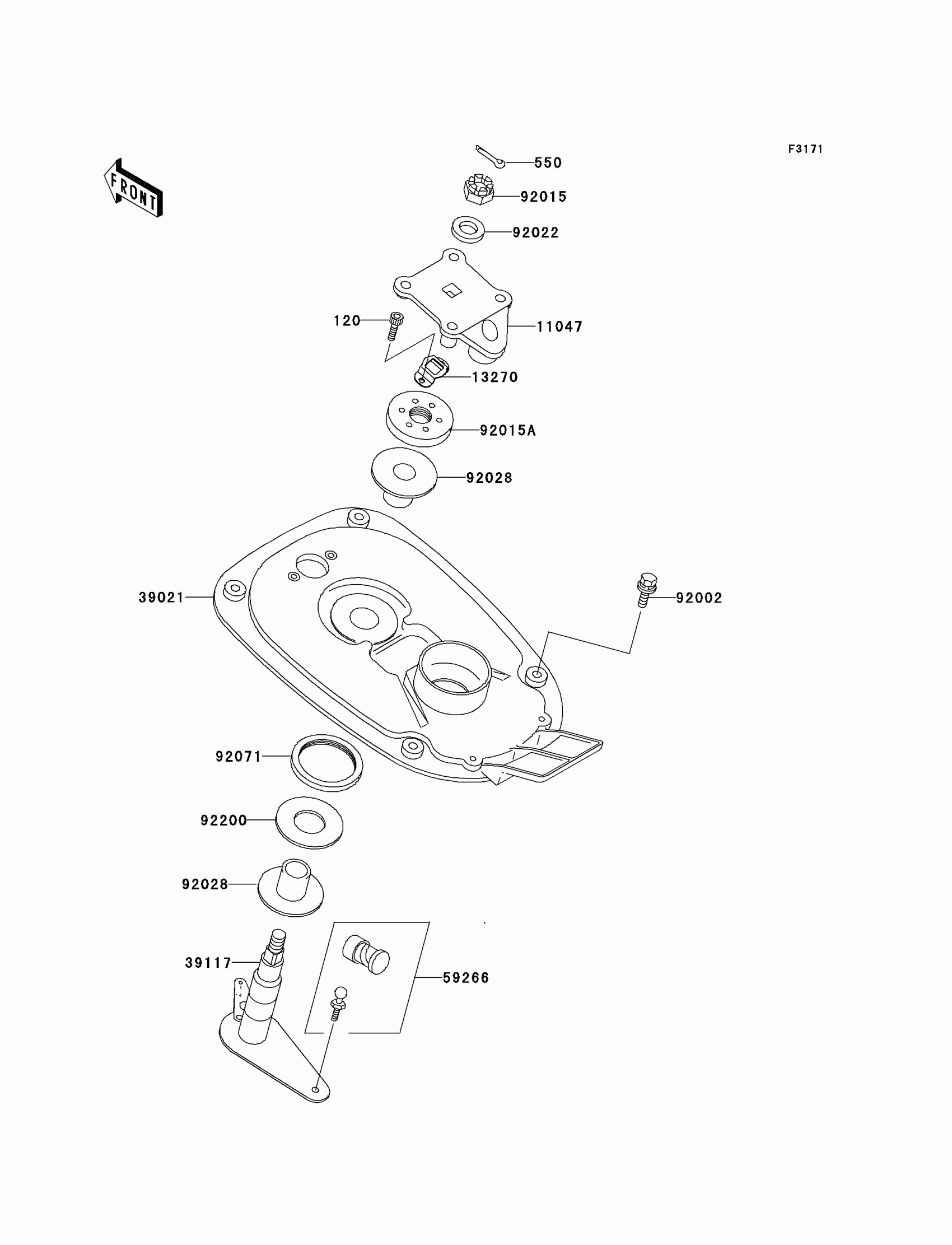

Kawasaki 1100 ZXi Handle Pole Diagram

Description

Price

120

BOLT-SOCKET,5X10

120R0510

$3.01

550

PIN-COTTER,3X35

550S3035

$4.02

11047

BRACKET,HANDLE HOLDER

11047-3759

$110.16

13270

PLATE

13270-3780

$7.81

39021

BRACKET-HANDLE POLE

39021-3705

$324.76

39117

SHAFT-STRG

39117-3709

$330.93

59266

JOINT-BALL

59266-3707

$59.33

92002

BOLT,8X25

92002-3774

$7.76

92015

NUT,CASTLE,14MM

92015-3805

$36.18

92015A

NUT

92015-3852

$112.14

92022

WASHER,15X34X2.0

92022-3738

$4.93

92028

BUSHING,STEERING

92028-3748

$24.03

92071

GROMMET

92071-3792

$9.07

92200

WASHER,32.5X70X2

92200-3718

$15.76
