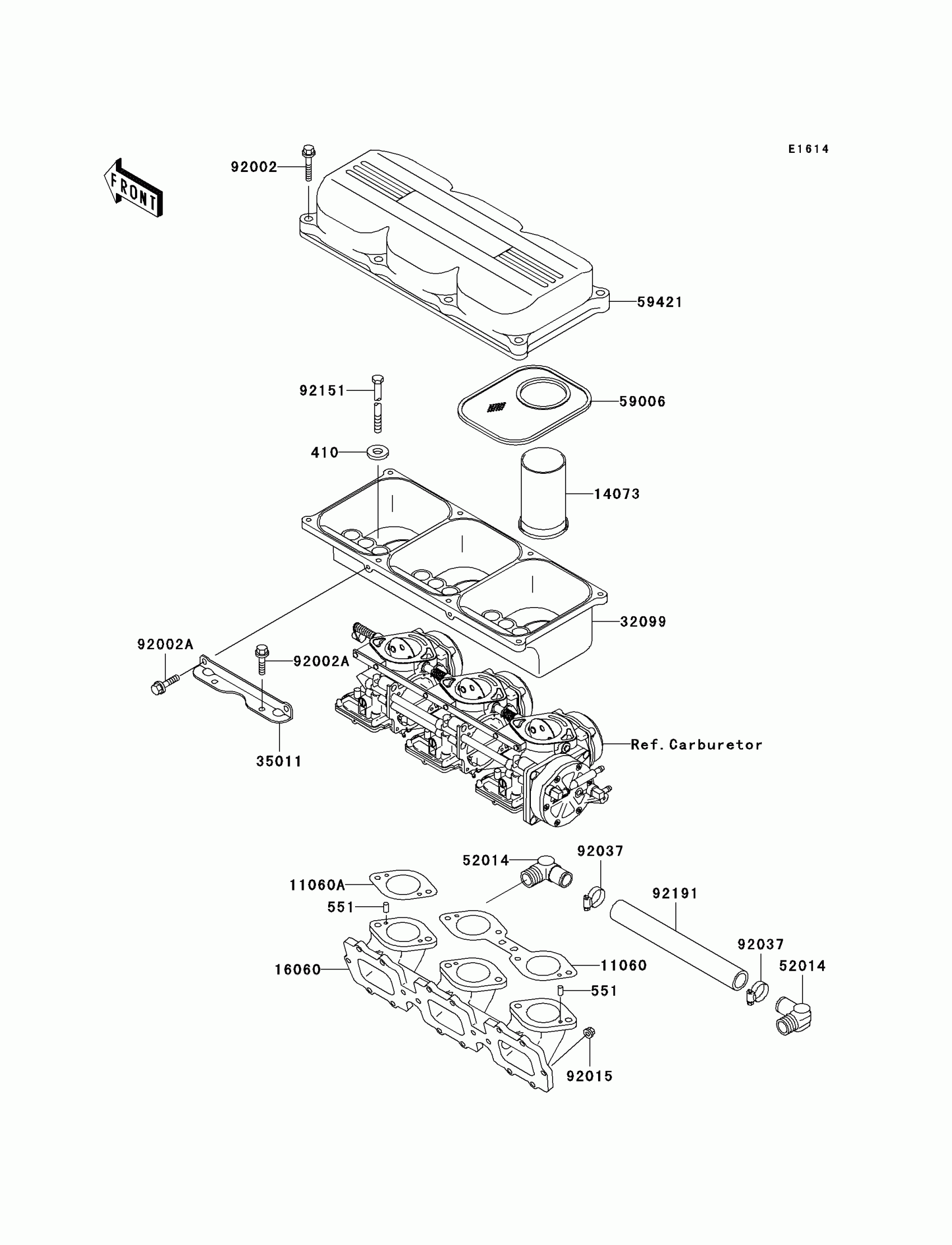

Kawasaki 1100 ZXi Flame Arrester Diagram

Description

Price

410

WASHER-PLAIN-SMALL,6MM

410S0600

$0.68

551

PIN-DOWEL

551R0408

$4.09

11060

GASKET,CARBURETOR

11060-3775

Unavailable

11060A

GASKET

11060-3776

$10.24

14073A

DUCT

14073-3772

$24.72

16060

PIPE-INTAKE

16060-3704

$229.30

32099A

CASE

32099-3830

$242.25

35011

STAY

35011-3707

$18.19

52014

ELBOW

52014-3712

$69.79

59006

ARRESTER-FLAME

59006-3713

Unavailable

59421

COVER-INTAKE

59421-3724

$93.06

92002

BOLT,6X30

92002-3726

$3.57

92002A

BOLT,6X16

92002-3728

$3.24

92015

NUT,6MM

92015-3767

$3.57

92037

CLAMP,COOLING HOSE

92037-1589

$14.01

92151

BOLT,SOCKET,6X130

92151-3725

$14.22

92191

TUBE

92191-3778

$24.12
