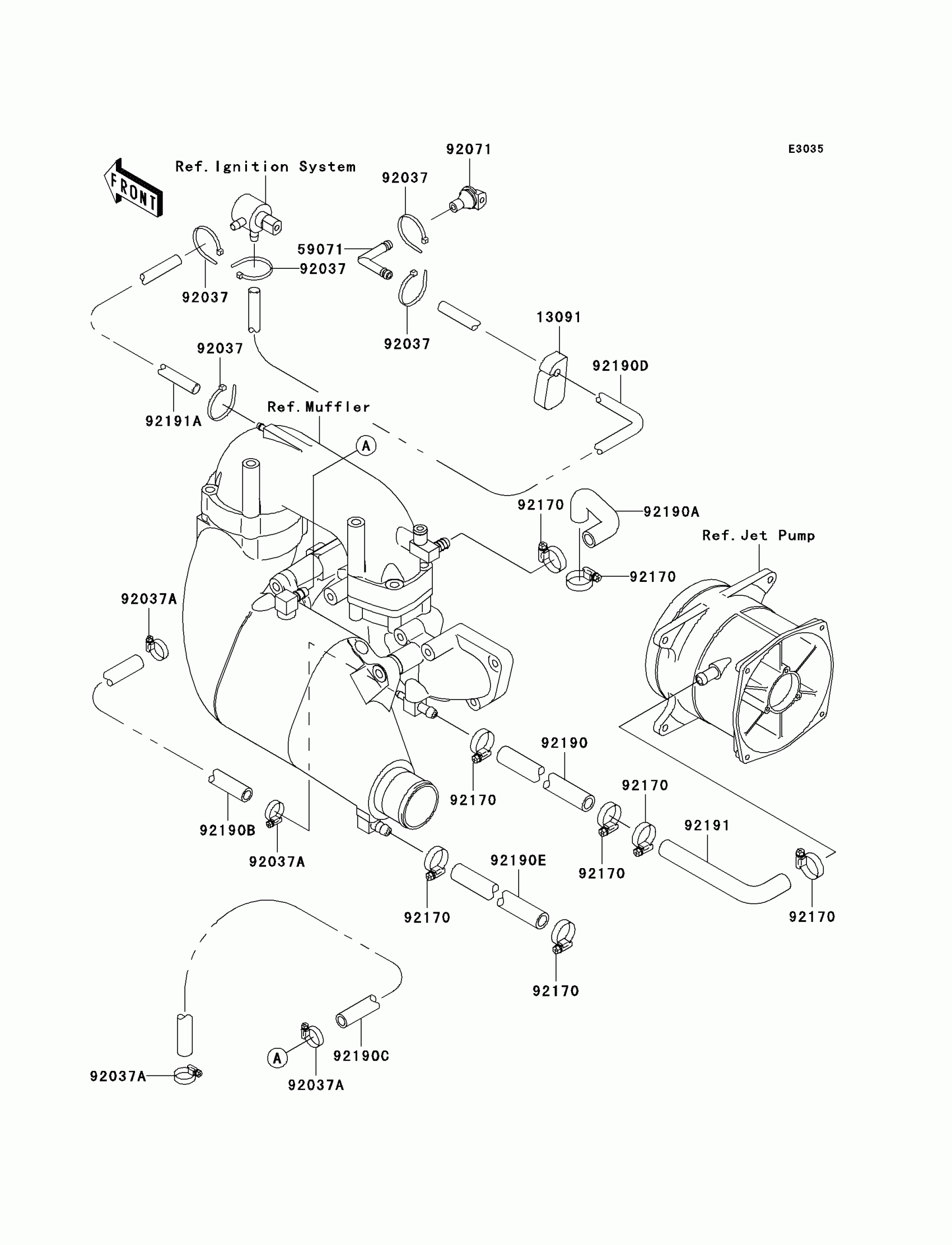

Kawasaki 1100 ZXi Cooling Diagram

Description

Price

13091

HOLDER

13091-3712

$4.14

59071

JOINT

59071-3736

$12.36

92037

CLAMP

92037-1173

$2.58

92037A

CLAMP

92037-3726

$3.63

92071

GROMMET

92071-3815

$4.14

92170

CLAMP

92170-3718

$10.33

92190

TUBE,MANIFOLD-HULL

92190-3953

$44.15

92190A

TUBE,HEAD-EXHAUSTPIPE

92190-3955

Unavailable

92190B

TUBE,MANIFOLD-COVER

92190-3974

$18.19

92190C

TUBE,COVER-CHAMBER

92190-3975

$12.78

92190D

TUBE,"RETURN",7X12X750

92190-3985

Unavailable

92190E

TUBE,CHAMBER-TAIL PIPE

92190-3998

$83.25

92191

TUBE,PUMP-HULL

92191-3785

Unavailable

92191A

TUBE,EXHAUST PIPE-SENSOR

92191-3802

$7.53
