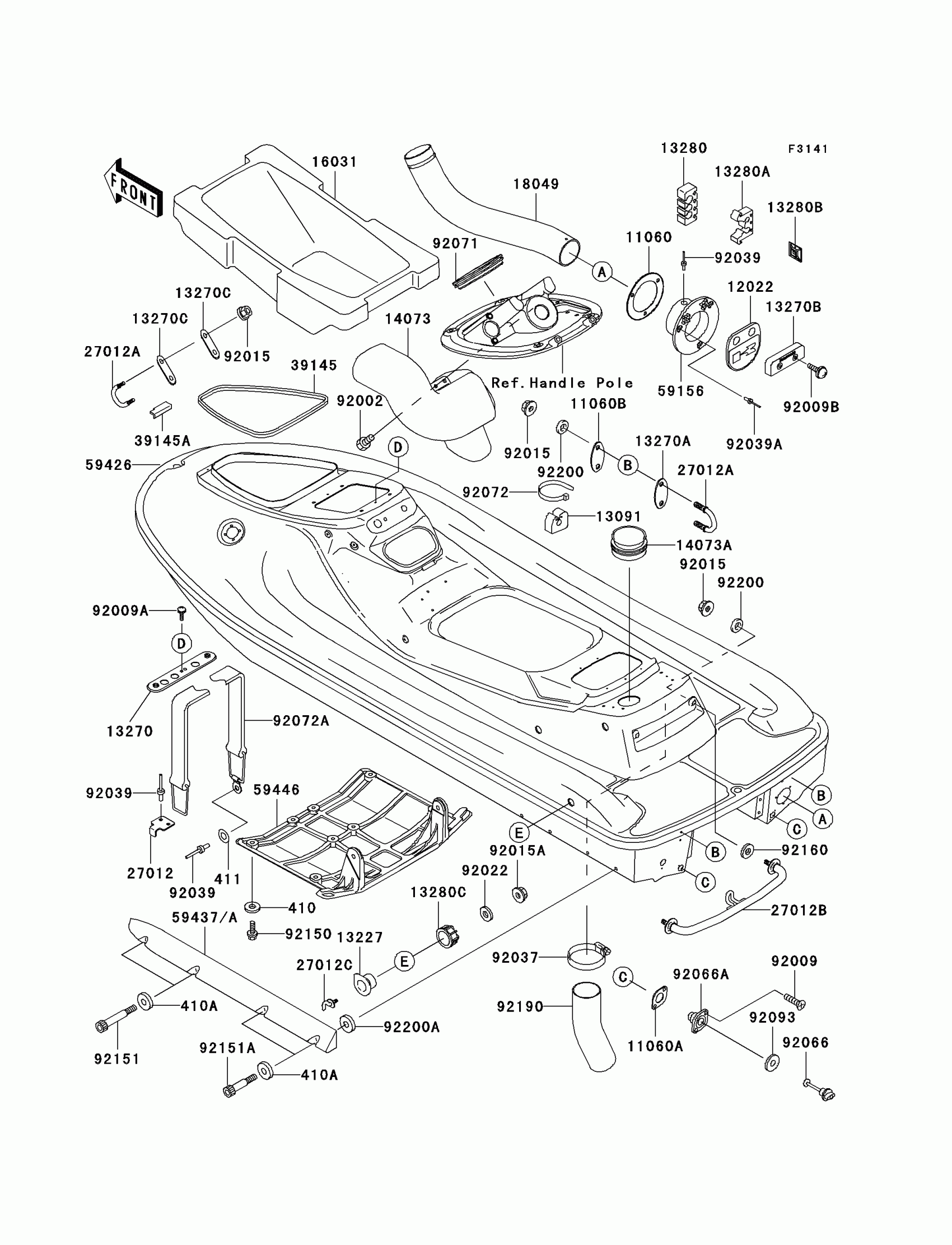

Kawasaki 1100 STX Hull(JT1100-B1) Diagram

#

Description
Price

11060

GASKET,TAIL PIPE

11060-3765

Unavailable

11060A

GASKET

11060-3772

Unavailable

11060B

GASKET,U HOOK,RR

11060-3800

$5.41

12022

VALVE-REED

12022-3706

$32.36

13091

HOLDER

13091-3780

$8.54

13227

HOUSING,CARGO NET HOOK

13227-3706

Unavailable

13270

PLATE

13270-3809

Unavailable

13270A

PLATE

13270-3860

$8.20

13270B

PLATE

13270-3867

$8.81

13270C

PLATE

13270-3896

$3.56

13280

HOLDER

13280-3703

$8.71

13280A

HOLDER,FUEL FILTER

13280-3705

$9.47

13280B

HOLDER

13280-3706

$3.31

13280C

HOLDER,CARGO NET HOOK

13280-3710

Unavailable

14073

DUCT,FR

14073-3757

Unavailable

14073A

DUCT,AIR INTAKE

14073-3762

$15.68

16031

FLOAT

16031-3840

$48.77

18049

PIPE-EXHAUST

18049-3757

Unavailable

27012

HOOK

27012-3787

$5.37

27012A

HOOK

27012-3797

$32.91

27012B

HOOK,TOWING,RR

27012-3800

Unavailable

27012C

HOOK,CARGO NET

27012-3811

Unavailable

39145

TRIM-SEAL,L=1412

39145-3748

$93.03

39145A

TRIM-SEAL,L=61

39145-3761

$1.56

59156

PIPE-TAIL

59156-3712

Unavailable

59437

STABILIZER,LH,F.RED

59437-3711-6L

Unavailable

59437A

STABILIZER,RH,F.RED

59437-3712-6L

$59.88

59446

COVER-JET PUMP

59446-3731

Unavailable

92002

BOLT,6X20

92002-3755

$3.57

92009

SCREW,TAPPING,4X14

92009-3755

$2.10

92009A

SCREW,5X16

92009-3789

$2.42

92009B

SCREW,6X15

92009-3830

$2.66

92015

NUT,FLANGED,8MM

92015-3709

$3.85

92015A

NUT,6MM

92015-3767

$3.57

92022

WASHER,6.5X20X1.5

92022-3710

$2.76

92037

CLAMP

92037-541

$7.79

92039

RIVET,4.8MM

92039-3719

$5.42

92039A

RIVET

92039-3741

$1.23

410

WASHER-PLAIN-SMALL,6MM

410S0600

Unavailable

410A

WASHER-PLAIN-SMALL,8MM

410S0800

$1.62

411

WASHER-PLAIN,5MM

411S0500

$0.78

92066

PLUG,RR,DRAIN

92066-3744

$16.76

92066A

PLUG,DRAIN

92066-3749

Unavailable

92071

GROMMET

92071-3812

$16.97

92072

BAND,L=201

92072-3778

$1.61

92072A

BAND,314X18

92072-3814

$16.78

92093

SEAL

92093-3720

$2.75

92150

BOLT,SOCKET,6X18

92150-3775

$3.57

92151

BOLT,SOCKET,6X40

92151-3719

$5.58

92151A

BOLT,SOCKET,6X52

92151-3720

$5.75

92160

DAMPER

92160-3912

$3.47

92190

TUBE

92190-3963

Unavailable

92200

WASHER

92200-3726

$7.49

92200A

WASHER,6X16X3

92200-3754

$4.15

59426

HULL-COMP,F.RED

59426-3873-3G

$3,036.40
