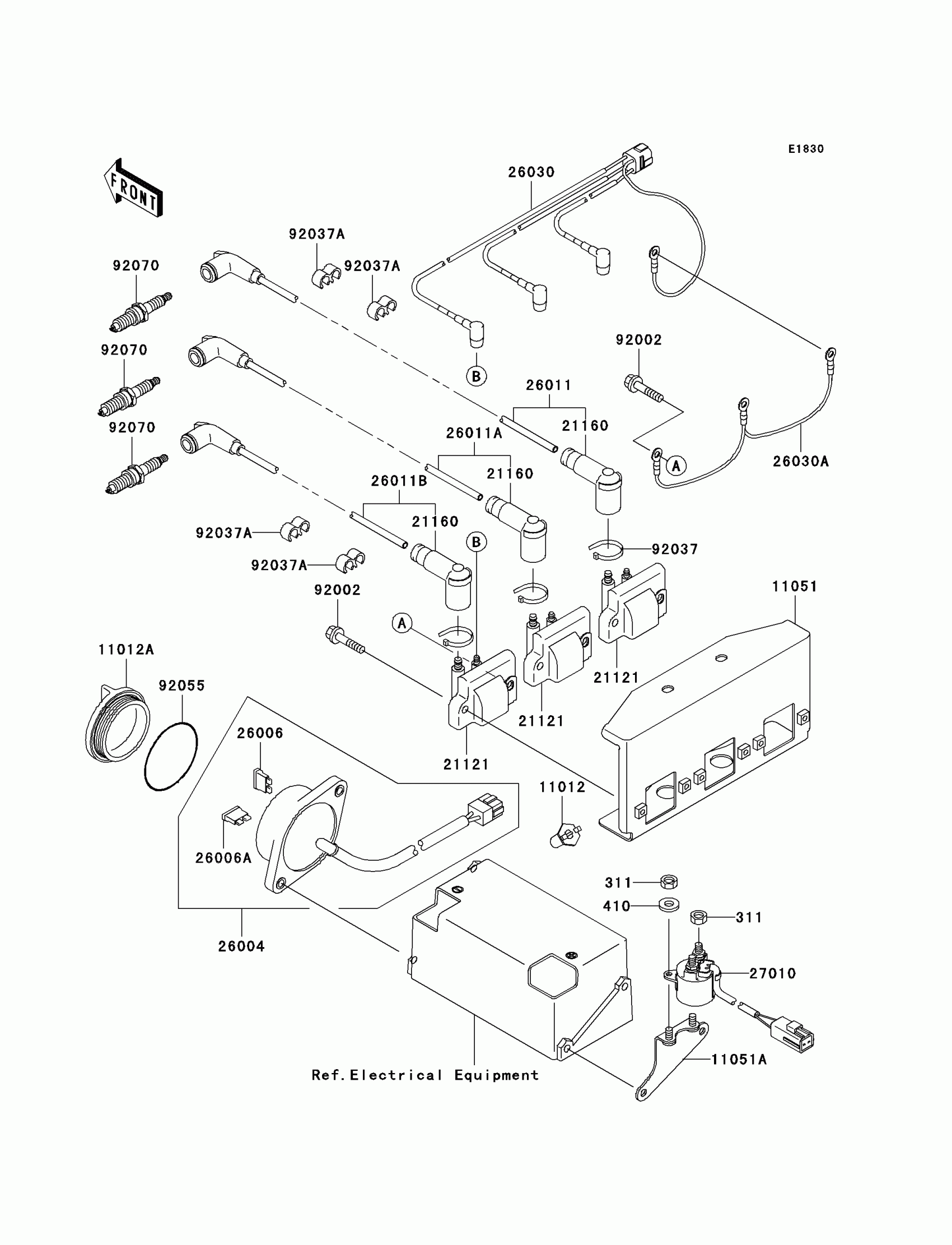

Kawasaki 1100 STX D.I. Ignition System(JT1100-F1) Diagram

Description

Price

311

NUT-HEX,6MM

311R0600

$0.75

410

WASHER-PLAIN-SMALL,6MM

410S0600

$0.80

11012

CAP,HOLDER

11012-3768

$7.41

11012A

CAP

11012-3791

Unavailable

11051

BRACKET

11051-3797

$52.70

11051A

BRACKET

11051-3807

Unavailable

21121

COIL-IGNITION

21121-3718

Unavailable

21160

CAP-ASSY-PLUG

21160-3702

$48.56

26004

FUSE-ASSY

26004-3722

$141.42

26006

FUSE,BLADE,10A,RED

26006-1007

$3.94

26006A

FUSE,BLADE,20A,YELLOW

26006-1051

$4.39

26011

WIRE-LEAD,#1

26011-3887

Unavailable

26011A

WIRE-LEAD,#2

26011-3888

Unavailable

26011B

WIRE-LEAD,#3

26011-3889

$136.00

26030

HARNESS

26030-3730

Unavailable

26030A

HARNESS

26030-3737

$9.31

27010

SWITCH

27010-3774

$125.91

92002

BOLT,6X25

92002-3714

$3.97

92037

CLAMP

92037-1173

$2.92

92037A

CLAMP,HOSE

92037-1603

$4.42

92055

RING-O

92055-1292

$8.24

92070

PLUG-SPARK,PZFR7G-G(NGK),SOLID

92070-3705

$20.29
