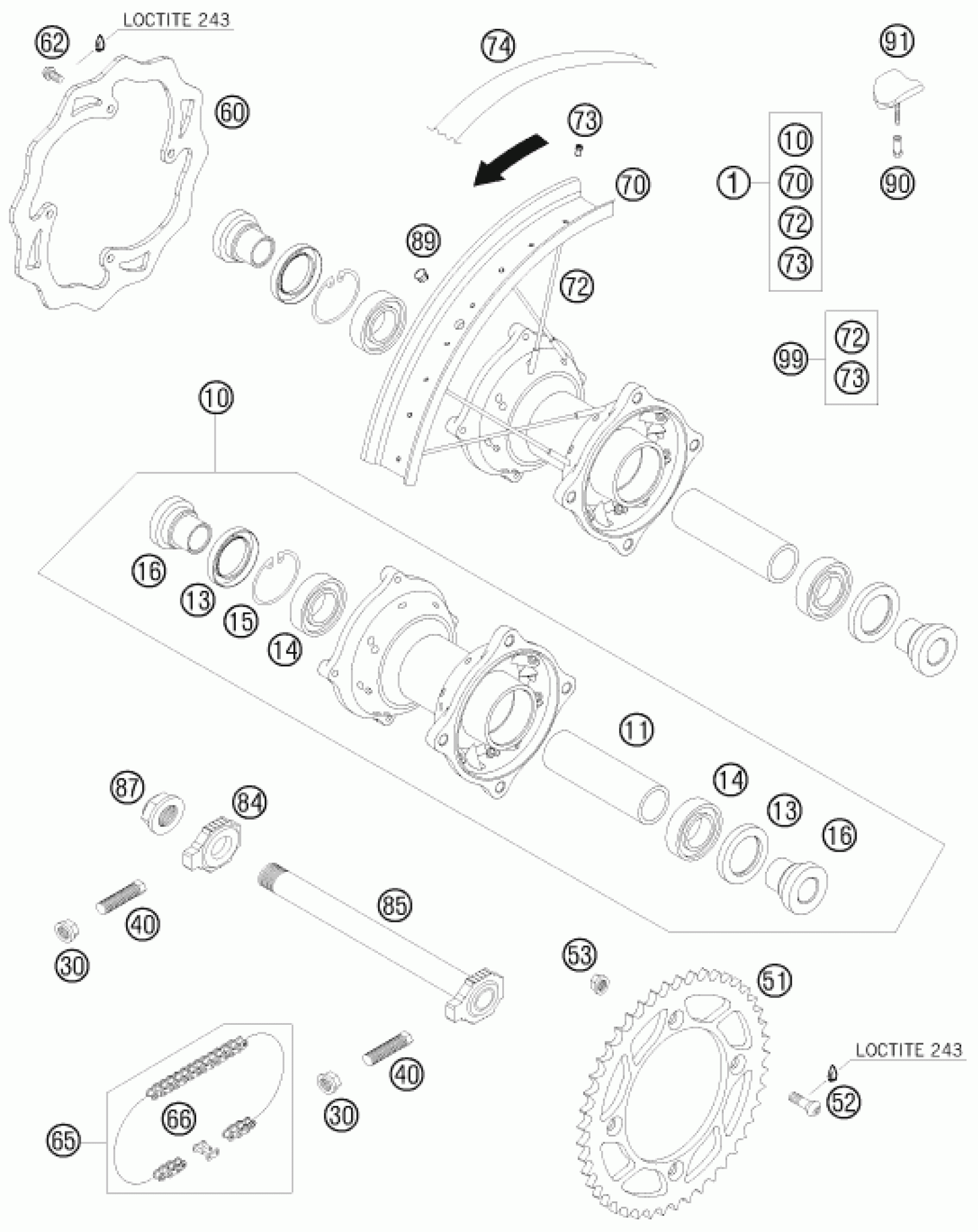

KTM 105 XC <2008> REAR WHEEL Diagram

#

Description
Price

1

REAR WHEEL SP 85 SX 16'' 06

47010001544

Unavailable

66

CONNECTING LINK 85 SX

47010166000

Unavailable

70

RIM REAR AL4 16X1,85-32 03

47010070200

Unavailable

10

REAR WHEEL HUB CPL. 85 SX 06

4701001004491

Unavailable

11

BEARING SPACER TUBE 85 SX 03

47010011000

Unavailable

13

Radial shaft seal 32X47X7 BSL

0760324771

Unavailable

14

Grooved ball bear.6005 DDU2CG2

0625060058

Unavailable

15

CIRCLIP DIN0472-47X1,75

0472047175

Unavailable

16

BUSHING FOR HUB

54610016000

Unavailable

30

HH COLLAR NUT M10X1,25 WS=13

58414030000

Unavailable

40

screw M10x1.25x50 WS10

50304040100

Unavailable

51

REAR SPROCKET 44-T 85 SX 03

47010051044

Unavailable

51

REAR SPROCKET 45-T 85 SX 03

47010051045

Unavailable

51

REAR SPROCKET 46-T 85 SX 03

47010051046

Unavailable

51

REAR SPROCKET 47-T 85 SX 03

47010051047

Unavailable

51

REAR SPROCKET 48-T 85 SX 03

47010051048

Unavailable

51

REAR SPROCKET 49-T 85 SX 03

47010051049

Unavailable

51

REAR SPROCKET 50-T 85 SX 03

47010051050

Unavailable

51

REAR SPROCKET 51-T 85 SX 06

47010051051

Unavailable

52

COUNTER-SUNK SCREW ISA45 M8X26

0019080266S

Unavailable

53

Self locking nut M8 10.9

54310086200

Unavailable

60

BRAKE DISC REAR D=200MM 06

47010060300

Unavailable

65

CHAIN 124 ROLLS 85 SX

47010165124

Unavailable

62

SPECIAL SCREW M6X16 WS=8 10.9

59009062016

Unavailable

72

SPOKE REAR 16'' 4/3,5/4-17103

47010072171

Unavailable

73

SPOKE NIPPLE M4,5X0,75 8X21

50309072000

Unavailable

74

Tube protector 85 SX 16"

47010073200

Unavailable

84

Chain tension adjuster, right

50310084000

Unavailable

85

AXLE REAR CPL. 85 SX 2003

47010085044

Unavailable

87

Hexagon nut M20x1.5

50310099000

Unavailable

89

PLUG FOR RIM

55003135000

Unavailable

90

NUT FOR WHEEL HOLDER '96

50310090050

Unavailable

91

RIM LOCK VM1 (1,60'')

51009100100

Unavailable

99

SPOKE KIT REAR ''16''

00050000909

Unavailable
