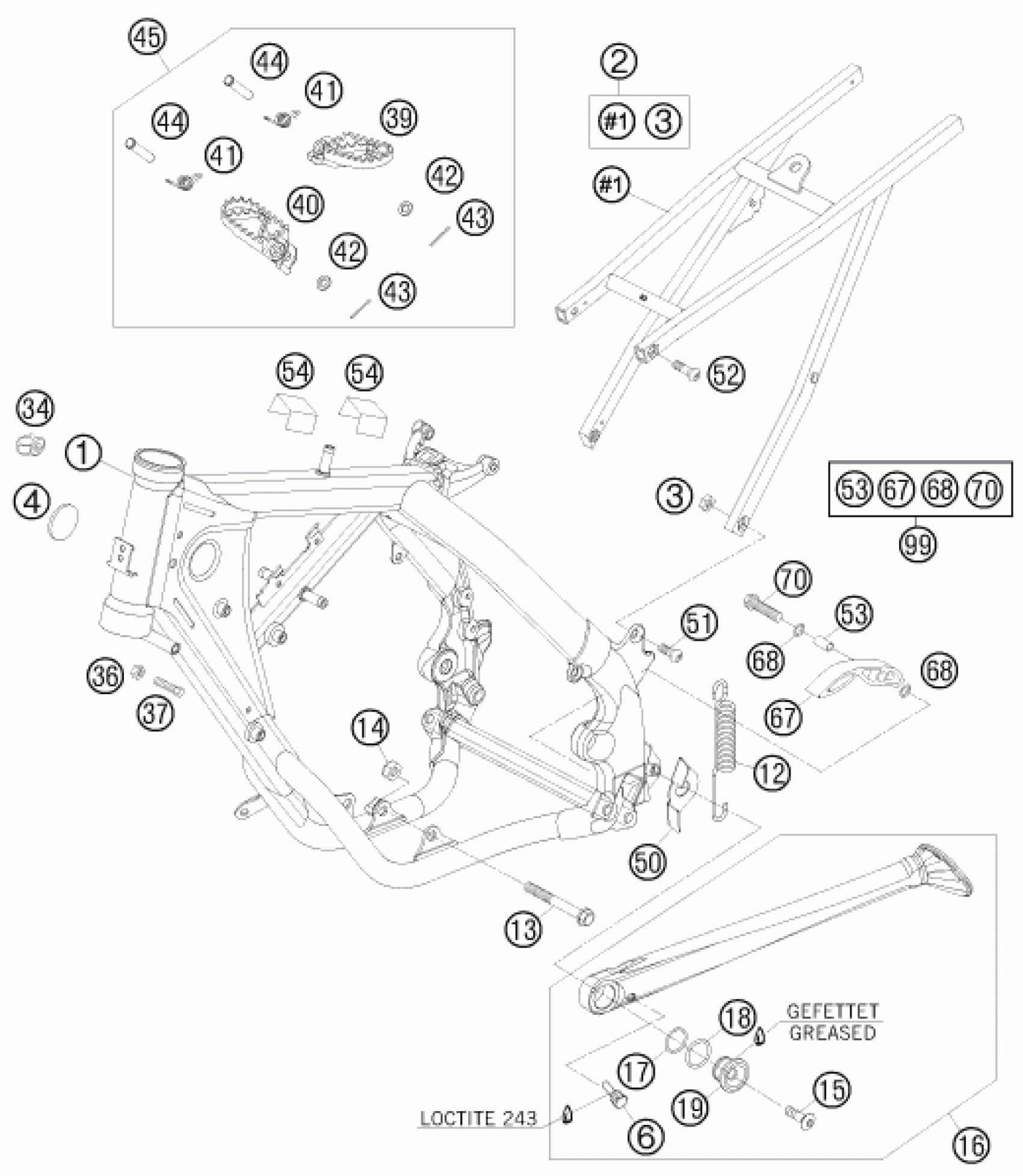

KTM 105 XC <2008> FRAME Diagram
#
37
SPECIAL SCREW M8X26 WS=10
59001037000
Unavailable
39
FOOT PED L/S EXC SILVER 00
59003040050
Unavailable
40
FOOT PED R/S EXC SILVER 2000
59003041050
Unavailable
1
FRAME CPL. 85/105XC ''AB08'' 0
4700300130030
Unavailable
2
SUB FRAME 85 SX 06
47003002144
Unavailable
4
PLUG 37MM
54606004000
Unavailable
6
BOLT SIDE ST.SPRING M5 EGS'98
50303023152
Unavailable
12
SIDESTAND SPRING 125-380EXC'98
50303024000
Unavailable
13
ENGINE BRACKET SCREW 85 SX
47003013000
Unavailable
14
SELF LOCKING NUT M10 CU WS=14
54310086100
Unavailable
15
FLAT HEAD SCREW M. ISA45 M8X20
0019080206S
Unavailable
16
SIDE STAND CPL.105XC 16/19''
47003023044
Unavailable
17
O-RING 12,5X1,5 NBR
0770125015
Unavailable
18
o-ring 18.00x2.00 NBR70
0770180020
Unavailable
19
SIDE STAND BUSHING EXC USA 08
78003023080
Unavailable
36
Hexagon nut DIN934 M8
0934080003
Unavailable
42
washer DIN 125 A 10.5
0125100003
Unavailable
70
HH collar screw M8x30
0025080306
Unavailable
43
PIN DIN0094-3,2X25 STEEL
0094032253
Unavailable
44
PIN FOR FOOT PED 51.5X9.8 MM
54803044000
Unavailable
45
FOOTPEG L.+R. CPL. 85 SX 03
4700304003390
Unavailable
50
STOP SHEET SST
47003023050
Unavailable
51
SPROCKET SCREW-AH M8X20 WS=6
54610052000
Unavailable
52
SPROCKET SCREW-AH M8X26 WS=6
54510052100
Unavailable
53
BUSHING 8,2X10X20
51103053051
Unavailable
54
METAMOLL FOR BATTERY BRACKET
58711054050
Unavailable
67
CHAIN SLIDING PIECE BELOW '97
51103053000
Unavailable
41
FOOTREST SPRING L/S & R/S
54603041000
Unavailable
68
LOCK WASHER 8MM
36003014000
Unavailable
34
CABLE SUPPORT KHS NR.150-47610
58111076000
Unavailable
3
HEXAGON NUT DIN 934 M8
0934080006
Unavailable
99
CHAIN SLIDING KIT BELOW MINI
51103053110
Unavailable
