Partiron

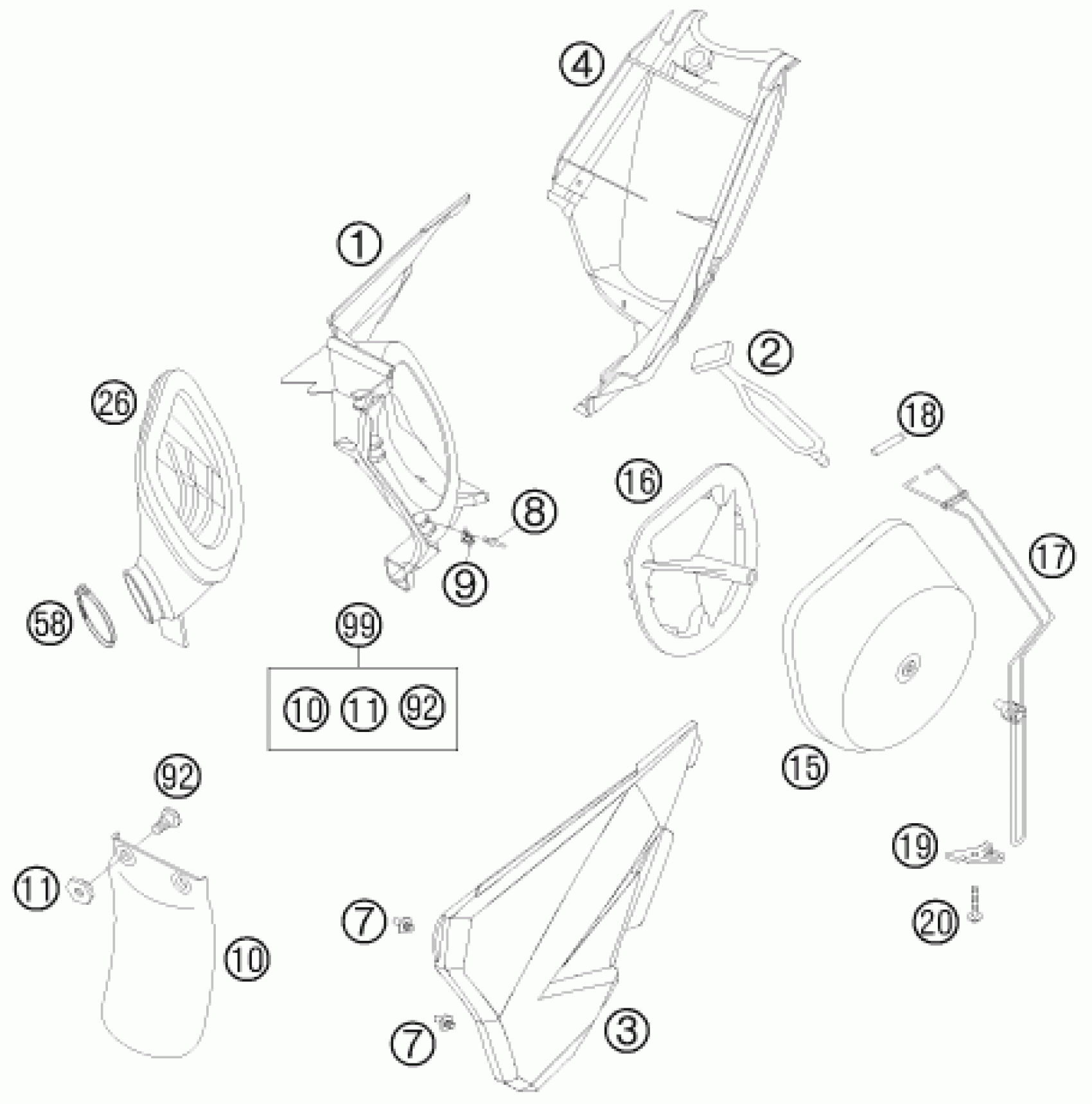

KTM 105 XC <2008> AIR FILTER Diagram

#

Description
Price

26

CARB. CONNECTING BOOT 85 SX 03

47006026000

Unavailable

58

HOSE CLAMP 40-60MM

46005058000

Unavailable

92

SPECIAL SCREW M6X12,5 WS=8

59001092050

Unavailable

1

FILTER WALL 105XC 2008

47006001051E

Unavailable

2

RUBBER L=145MM

50303018000

Unavailable

3

AIR BOX COVER 105XC 2008

47006003000E

Unavailable

4

REAR PART FILTER BOX 85 SX 03

47006001052

Unavailable

7

QUICK RELEASE-NIPPLE 03

54806008051

Unavailable

8

RIVET 3,2MM ALU 03

54806008052

Unavailable

9

QUICK RELEASE-SPRING HANGER

54806008050

Unavailable

10

SPLASH PROTECTOR 60/65 SX '98

46006010000

Unavailable

11

SCREW CONNECTION SPLASH SHIELD

47006010050

Unavailable

15

AIR FILTER RACING 2001

59006015000

Unavailable

17

FILTER SUPPORT CPL.2-STROKE'98

50306017000

Unavailable

16

FILTER CARRIER 2-STROKE 04

54806016000

Unavailable

18

FILTER SUPPORT BUSH 125-380'98

50306018000

Unavailable

19

FASTEN. DEVICE FILTER SUPPORT

47006019000

Unavailable

20

SPECIAL SCREW T60 6X30 WS=6

0017060303

Unavailable

99

SPLASH PROTECTOR KIT 85/65

46006010010

Unavailable
