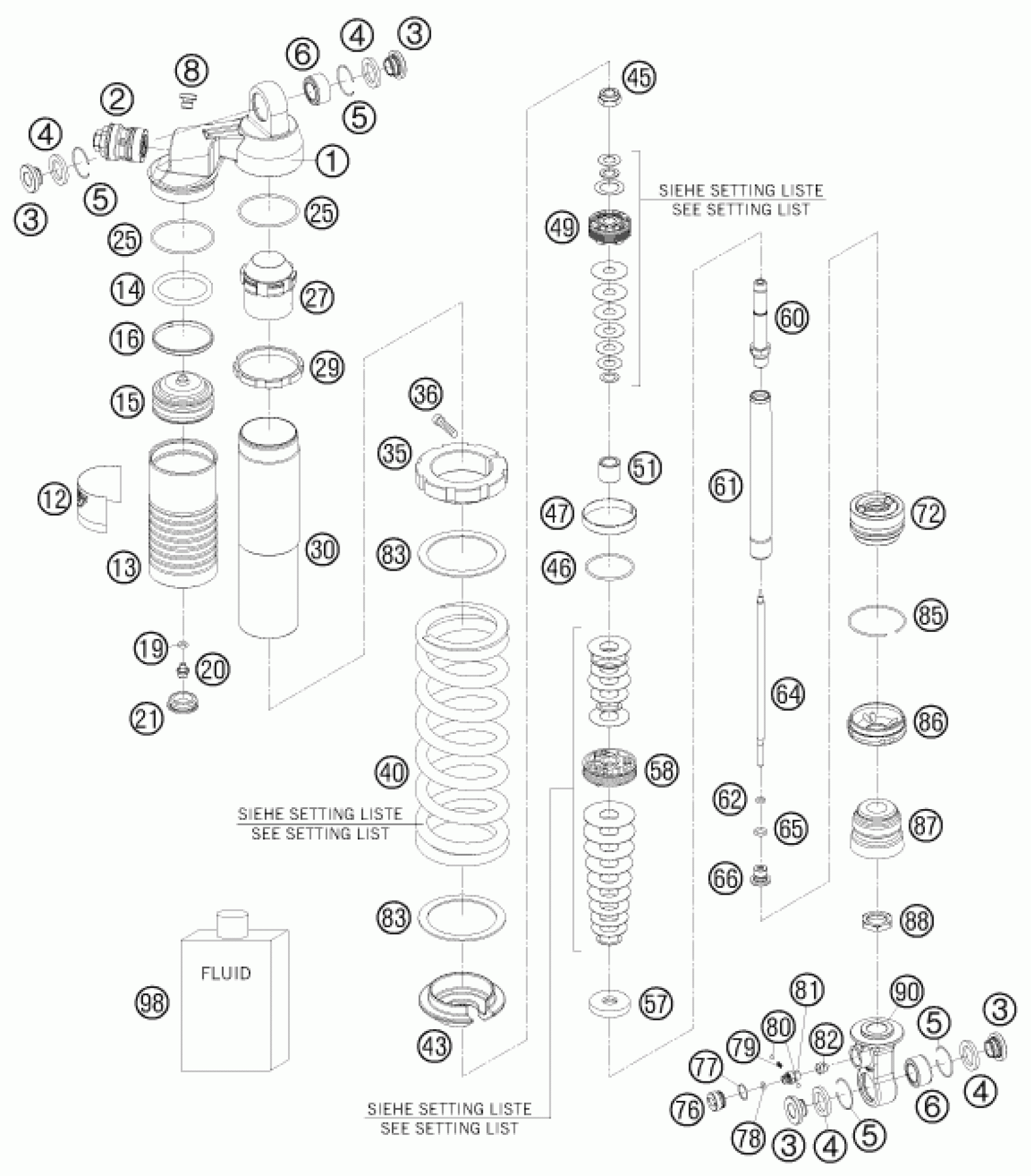

KTM 105 SX <2008> SHOCK ABSORBER DISASSEMBLED Diagram

#

Description
Price

2

DCC-COMPR.DAMP.CONTROL CPL. 07

50180213S10

Unavailable

3

Distance bush 12x15/18/24,5x10

46180007

Unavailable

4

Seal ring 19,5x26x3

46180003

Unavailable

5

Round-wire snap ring 25x1

50180168

Unavailable

6

Ball joint bearing 15x25x13

50180005

Unavailable

8

HS cylinder-head screw R1/8 l8

50180095

Unavailable

12

STICKER WP 35X55

52000014

Unavailable

79

Spring (1,7) l7,9

48600028

Unavailable

13

Reservoir 52x100 M54x1 black

50180522

Unavailable

14

O-ring 41x5 Viton75

46180014

Unavailable

15

Piston 52mm reservoir

46180002

Unavailable

16

Pistonring 47,5x50,5x3,9

46180015

Unavailable

19

O-ring 5,28x1,78 NBR70 black

46810893

Unavailable

20

HS lock screw M5x6

36120151

Unavailable

21

Rubber cap do not open 22x5,5

46811208

Unavailable

25

O-ring 48x2 NBR70 siliconized

46810016

Unavailable

27

SLEEVE D=48

46180340

Unavailable

29

LOCK WASHER M52X1,5

46180352

Unavailable

30

TUBE M52X1,5

46180345

Unavailable

35

SPRING RETAINER M52X1,5

46180353

Unavailable

36

AH SCREW DIN0912-M 5X25

0912050253

Unavailable

40

SPRING 215 30 N/MM D=9,00 ORAN

91010272

Unavailable

40

Mainspring (59) 35-215 damper

91010273

Unavailable

40

SPRING 215 40 N/MM D=9,50 ORG

91010274S

Unavailable

40

Mainspring (59) 45-215 damper

91010201

Unavailable

43

Spring retainer 28x56x15

46180349

Unavailable

45

PISTON ROD NUT M10X1

46180356

Unavailable

46

O-ring 37x,82x1,78 Viton70 gre

46810035

Unavailable

47

Piston ring 43,95x45,95x8

46811206

Unavailable

49

Piston 10,05x35,5x13,7 3,5/5,5

14460016

Unavailable

51

SEPARATION BUSH 17X12X18

46180339

Unavailable

57

REBOUND DISC H=0

46180179

Unavailable

57

Rebound disc 12x34x7 h4

46180337

Unavailable

58

PISTON 5X4,5X/6X6

46180441

Unavailable

60

TAP PISTON ROD D=13,5

46180343

Unavailable

61

SPINDEL D=18 LC=159

46180342

Unavailable

62

O-ring 5x1,5 Viton70

50180397

Unavailable

64

NEEDLE REBOUND L=169

46180346

Unavailable

65

O-RING NBR 7,5X2

46180018

Unavailable

66

NEEDLE GUIDE

46180350

Unavailable

72

Sealholder 46x28 cpl.

46180669S

Unavailable

76

RESERVOIR CAP M16X1

46180355

Unavailable

77

O-ring 12x1 NBR70

46180013

Unavailable

78

O-ring 4x1,5 NBR70

50180222

Unavailable

80

Steel ball d3

40540603

Unavailable

81

Adjustment screw slot rebound

46180006

Unavailable

82

Adjustment screw slot rebound

46180016

Unavailable

83

Washer 58,6x73,6x1,5

50180410

Unavailable

85

Round-wire snap ring 49x1,5

46810010

Unavailable

86

Cover 46,12x6,2 h15,7

46180338

Unavailable

87

Rubber pad 17,2x45,2x40 black

50180276

Unavailable

88

HH locking nut M18x1 h5 WAF24

50180283

Unavailable

90

SHOCK ABSORBER BOT. KGW L=54,5

46180347

Unavailable

98

SHOCK ABSORBER FLUID 5 LT '03

50180342S1

Unavailable

1

SHOCK ABSORBER TOP H40 135DEG.

46180348

Unavailable
