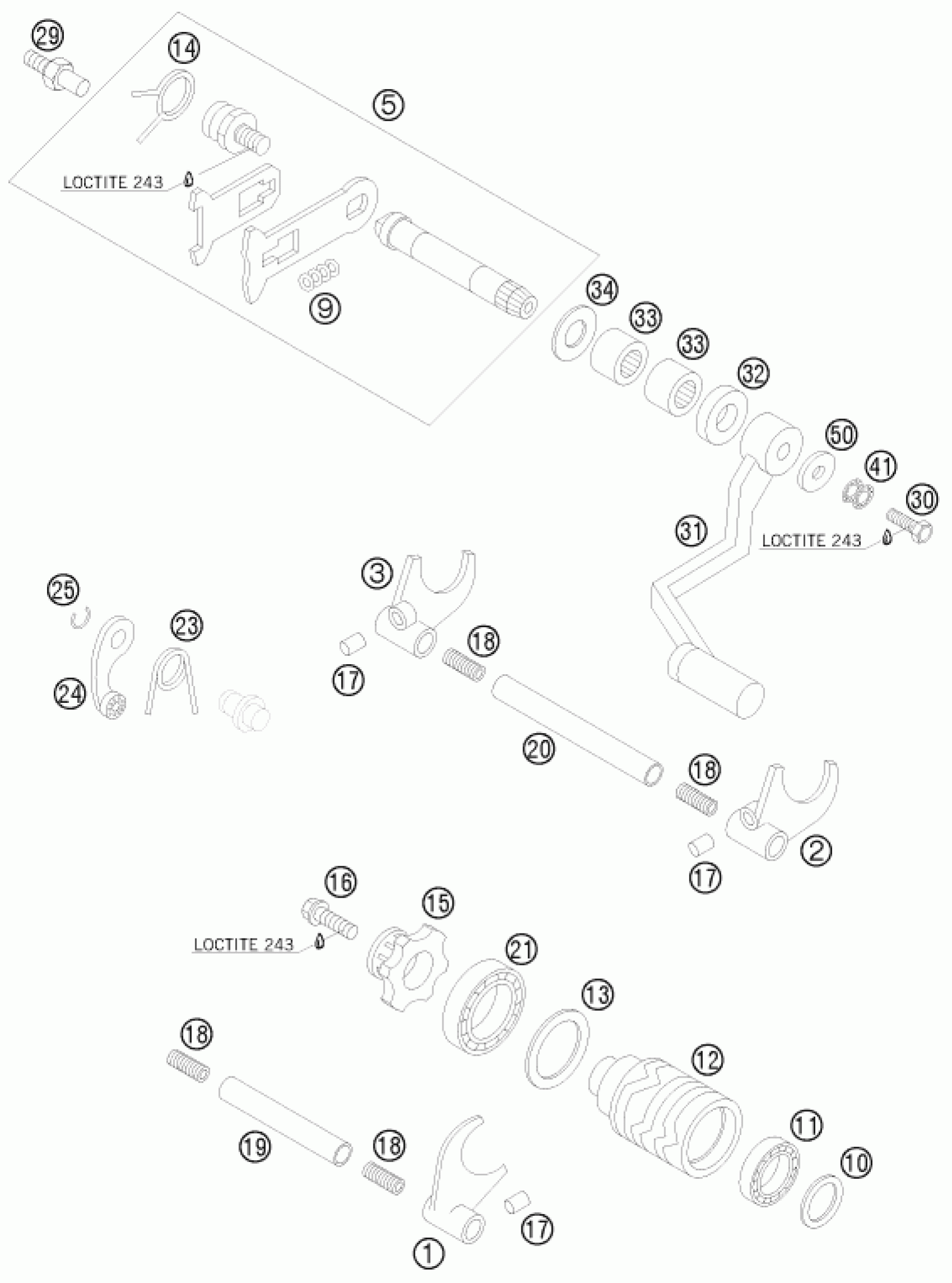

KTM 105 SX <2008> SHIFTING MECHANISM Diagram

#

Description
Price

1

SHIFT FORK 5TH/6TH GEAR 2003

47034001000

Unavailable

2

SHIFT FORK 2ND/3RD GEAR 2003

47034002000

Unavailable

3

SHIFT FORK 1ST/4TH GEAR 2003

47034003000

Unavailable

5

SHIFTING SHAFT CPL. 85 SX 2003

47034005044

Unavailable

9

PRESSURE SPRING SLIDER PLATE

46034009000

Unavailable

10

WASHER 15X20X0,5

47034091000

Unavailable

11

BALL BEARING 6902 15X28X7

0625069020

Unavailable

12

SHIFT ROLLER 85 SX 2003

47034012000

Unavailable

13

WASHER 25X32X0,5

47034092000

Unavailable

14

RETURN SPRING

46034014000

Unavailable

15

SHIFT LOCATION DRUM 85 SX 2003

47034015000

Unavailable

16

HH COLLAR SCREW M 6X25 WS=8

0015060253

Unavailable

17

NEEDLE ROLLER DIN5402 NRB 6X12

0402061200

Unavailable

18

SPRING SHIFT RAIL 2001

46034019052

Unavailable

19

SHIFTING RAIL 85 SX 2003

47034019000

Unavailable

20

SHIFT RAIL 2001

46034020100

Unavailable

21

BALL BEARING 61805 C3

0625618050

Unavailable

23

LOCKING LEVER SPRING 2001

46034023100

Unavailable

24

LOCKING LEVER CPL. 65 SX 2002

46034024100

Unavailable

25

CIRCLIP DIN0471-10X1

0471100010

Unavailable

29

ARRESTER FOR SPRING 2003

47034029000

Unavailable

30

HH SCREW DIN933 M6x20 10.9

0933060205

Unavailable

31

SHIFT LEVER 85 SX 2003

47034031000

Unavailable

32

radial shaft seal 14x24x6 B

0760142460

Unavailable

33

needle sleeve HK 1412 14x20x12

54632095000

Unavailable

34

STOP DISC 15X25X0,5

47033043000

Unavailable

41

Pair of washers M6 NORDLOCK

50233041000

Unavailable

50

STEEL WASHER 6,4X17X3

50232050001

Unavailable
