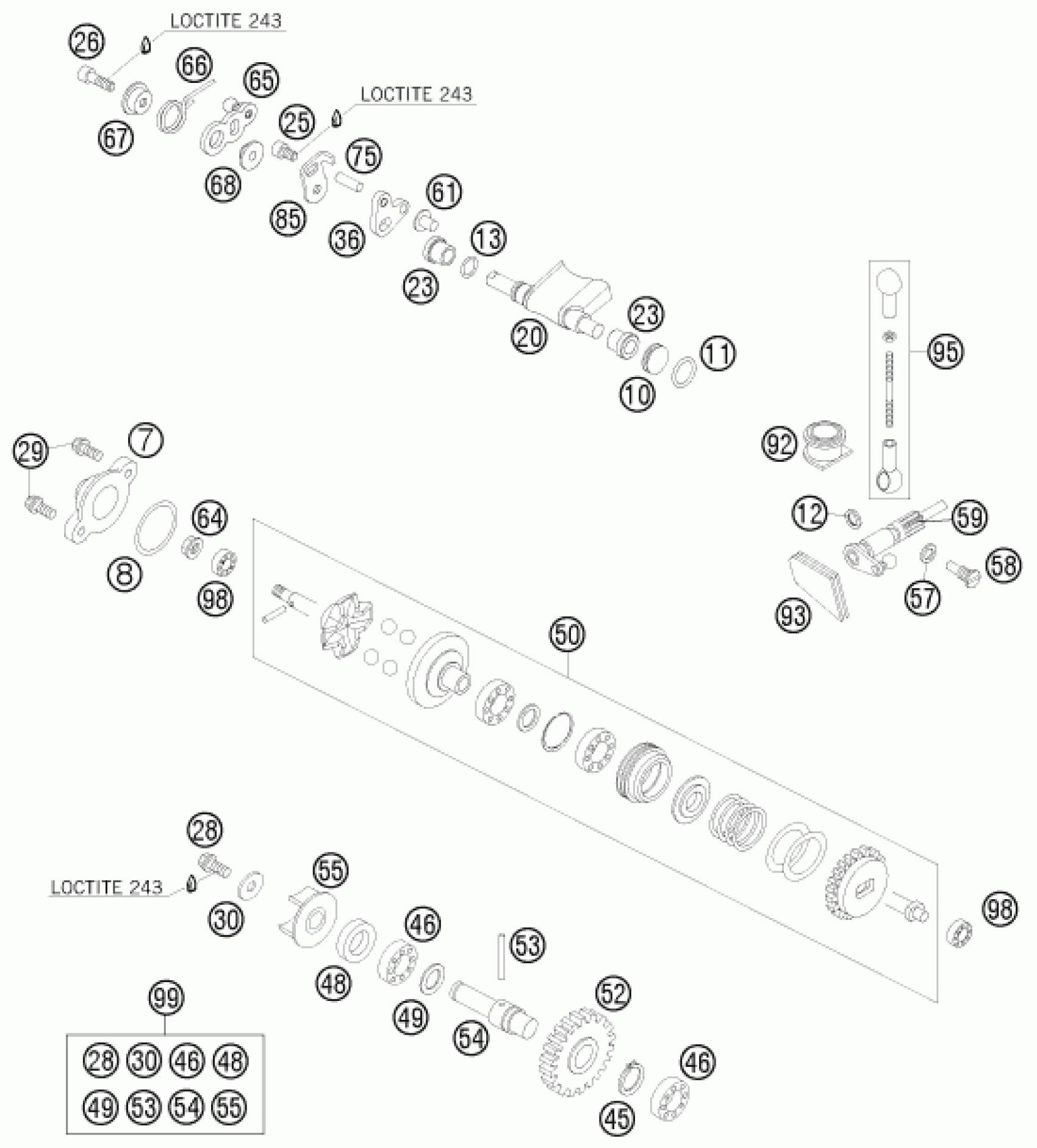

KTM 105 SX <2008> EXHAUST CONTROL Diagram

#

Description
Price

20

CONTROL FLAP 105 SX 2004

47537020000

Unavailable

7

CLOSING COVER 2003

54637070200

Unavailable

8

O-RING 21,95X1,78 NBR

0770020200

Unavailable

10

CLOSING COVER 85 SX 2003

47037010000

Unavailable

11

O-RING 12,00X2,00 NBR 70

0770120020

Unavailable

12

SEAL RING DH/GR 12X16X3

54632090000

Unavailable

23

BEARING SLEEVE 85 SX 2003

47037023000

Unavailable

25

AH SCREW DIN 912 M 5X6

0912050063

Unavailable

26

AH collar screw DIN 912 M5x16

0912050163

Unavailable

28

HH COLLAR SCREW M 5X12 WS=8

0015050123

Unavailable

29

HH COLLAR SCREW M 5X20 WS=8

0015050203

Unavailable

30

WASHER DIN7349-5X15X2

0349000050

Unavailable

48

SHAFT SEAL RING 8X24X7 A DUO

0760082472

Unavailable

49

WASHER 10X14X0,5 STEEL

54334015000

Unavailable

50

CENTRIFUGAL TIMER CPL. 03

47037050044

Unavailable

52

WATER PUMP GEAR 2003

47035054026

Unavailable

53

PIN 2X22

47035058000

Unavailable

54

WATER PUMP SHAFT 85 SX 2003

47035054000

Unavailable

55

WATER PUMP WHEEL 85 SX 2003

47035055000

Unavailable

57

COPPER GASKET DIN7603- A4X8X1

0603040801

Unavailable

58

LOCK SCREW CONTROL SHAFT 03

47037058000

Unavailable

59

CONTROL SHAFT 85 SX 06

47037057100

Unavailable

61

SCREW M6X8

47035061000

Unavailable

64

Self locking nut M6 - 10

56509064100

Unavailable

65

CONTROL LEVER 85 SX 2003

47037065000

Unavailable

66

OVERLOAD SPRING

54637066000

Unavailable

67

SPRING SLEEVE 85 SX 2003

47037067000

Unavailable

68

BEARING SLEEVE 85 SX 2003

47037068000

Unavailable

75

CYLINDER PIN DIN 7-5X18(M6)

0007050180

Unavailable

85

STOP SHEET 85 SX 2003

47037085000

Unavailable

92

GASKET RUBBER TOP 85 SX

47037092000

Unavailable

93

GASKET RUBBER BOTTOM 85 SX

47037093000

Unavailable

95

CONNECT. ROD CPL. 85 SX 03

47037095044

Unavailable

98

Grooved ball bearing 626LLBC3/

54637098100

Unavailable

36

DRIVER SHEET 85 SX 2003

47037036000

Unavailable

45

CIRCLIP DIN0471-10X1

0471100010

Unavailable

46

Grooved ball bearing 608 2RS C

0625006087

Unavailable

13

O-RING 8,00X1,5

0770008015

Unavailable

99

WATER PUMP REP. KIT 85 SX

47035055010

Unavailable
