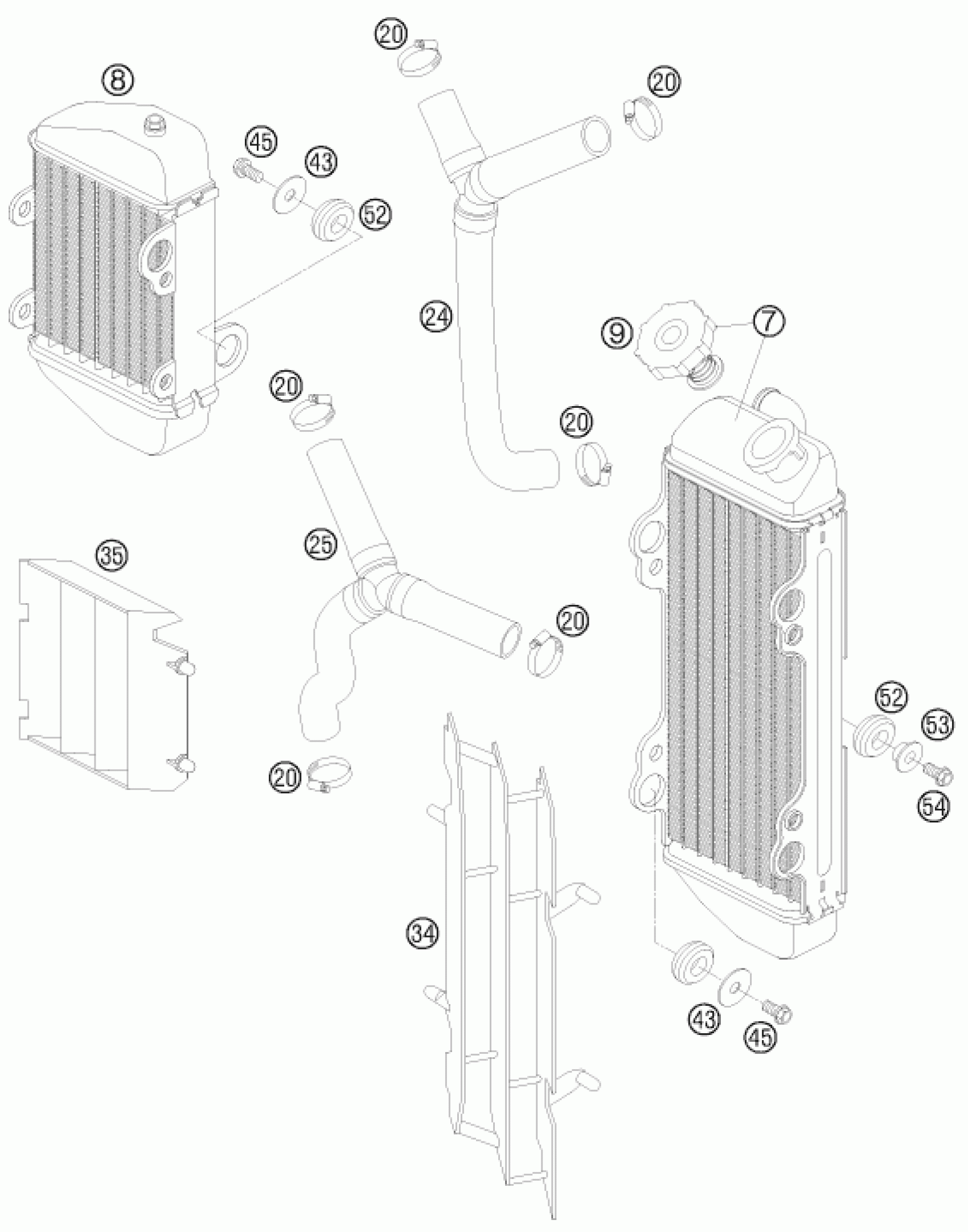

KTM 105 SX <2008> COOLING SYSTEM Diagram

#

Description
Price

7

RADIATOR L/S 85 SX 2005

47035007100

Unavailable

8

RADIATOR R/S 85 SX 2003

47035008000

Unavailable

9

RADIAT.CAP 20,3PSI (1,4BAR) 03

59035009000

Unavailable

20

HOSE CLAMP GEMI 18-29

10001020000

Unavailable

24

RADIATOR HOSE TOP 85 SX 2003

47035024000

Unavailable

25

RADIATOR HOSE BOTTOM 85 SX 03

47035025000

Unavailable

34

RADIATOR PROTECTOR L. BLACK

5463503420030

Unavailable

43

Washer DIN9021-A 6.4

0021060003

Unavailable

45

HH COLLAR SCREW M 6X12 WS=8

0015060123

Unavailable

52

RUBBER SLEEVE D=12MM

41001052000

Unavailable

35

RADIATOR PROTECTOR R. BLACK

4703503500030

Unavailable

53

BUSH FOR SPOILER 6X11X16X7,5

50308053000

Unavailable

54

HH COLLAR SCREW M 6X16 WS=8

0015060163

Unavailable
