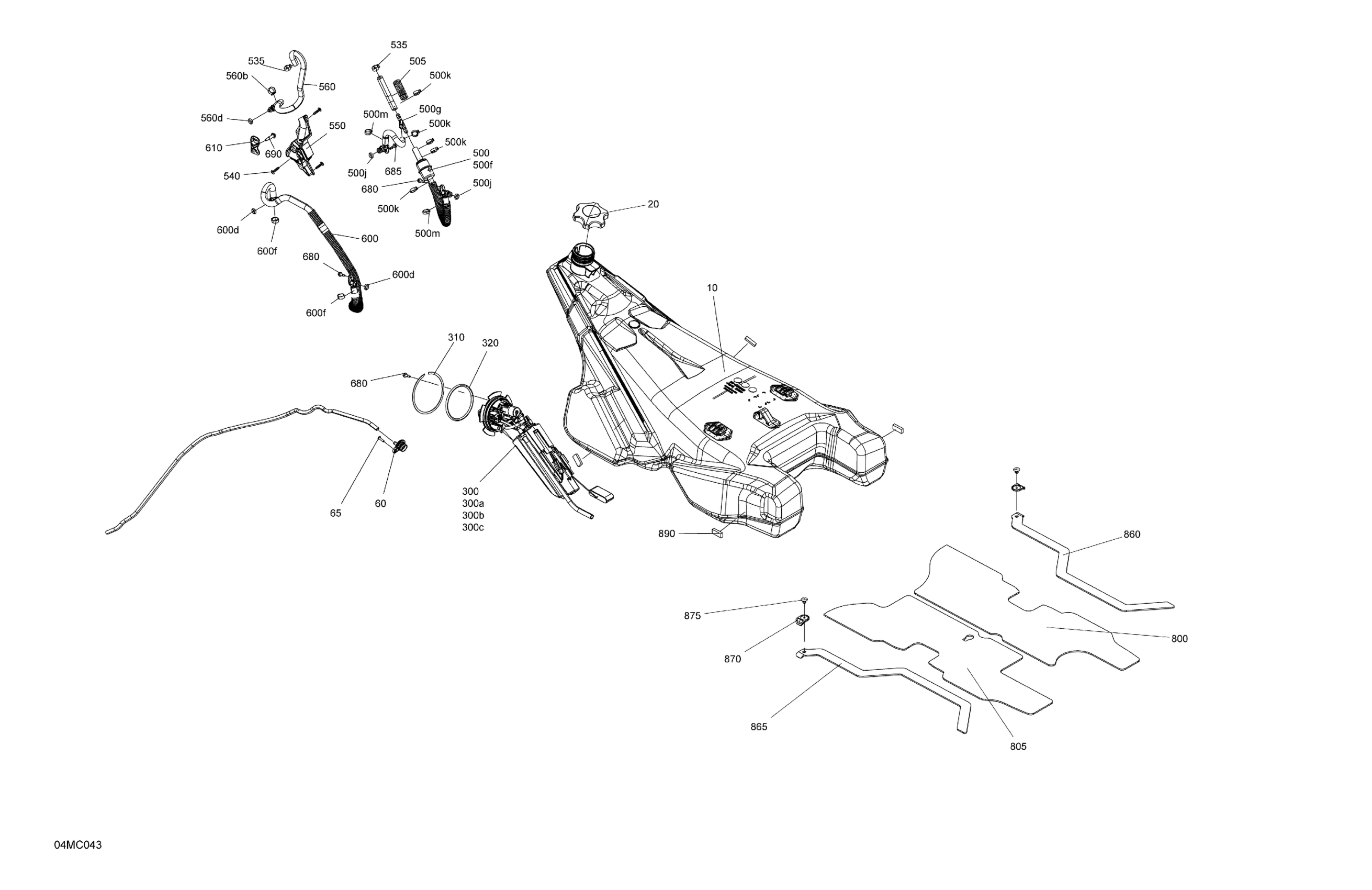

Ski-Doo EXPEDITION XTREME 850 E-TEC - (ADPD-ADPE) - 2023 Engine - Fuel Diagram

#

Description
Price

10

Fuel Tank

513034100

$256.12

20

Fuel Tank Cap

513033860

$23.05

60

Check Valve

513033849

Unavailable

65

Truss Torx Screw K40 X 16

250000918

Unavailable

300

Fuel Pump Ass'y | Includes 300 to 300c

513034082

$257.66

300a

Fuel Filter

415131068

Unavailable

300b

Fuel Level Sensor

415130281

Unavailable

300c

Canister

415130507

Unavailable

310

Circlip

513033798

$12.83

320

O-Ring

513033862

Unavailable

500

Hose Ass'y | Includes 500 to 500n

513034120

$71.51

500f

Fuel Filter

513034047

Unavailable

500g

Y Fitting

513034117

$6.02

500j

O-Ring

513033668

Unavailable

500k

Oetiker Clamp

293650125

$2.69

500m

Crimp Clamp

293650053

Unavailable

505

Tubing 16 Mm 1000Mm Long

219704408

Unavailable

535

Crimp Clamp, 15.3-706R

293650047

Unavailable

540

Torx Screw Truss Head K50X20 T20

250000760

Unavailable

550

Hose Guide

513034051

$7.43

560

Fuel Tank Hose Ass'y | Includes 560 to 560d

513034251

Unavailable

560b

Crimp Clamp

293650053

Unavailable

560d

O-Ring

513033668

Unavailable

600

Hose Ass'y | Includes 600 to 600f

513034113

$73.82

600d

O-Ring

513033668

Unavailable

600f

Crimp Clamp

293650053

Unavailable

610

Bracket

513033903

$1.26

680

Hex. Flange Screw M5 X 16

250000911

Unavailable

685

Hex. Flange Screw M5 X 16

250000911

Unavailable

690

Hex. Flange Screw M5 X 28 S.Grip

250001018

$1.07

800

RH Insulated Foam

513034052

$10.77

805

LH Insulated Foam

513034053

$10.77

860

RH Foam

513033981

$4.43

865

LH Foam

513033982

$4.43

870

Retainer Plate

513033917

$0.54

875

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

890

Tank Guard

513034038

$4.03

9900

Fuel Tank Cap

513033943

$25.35
