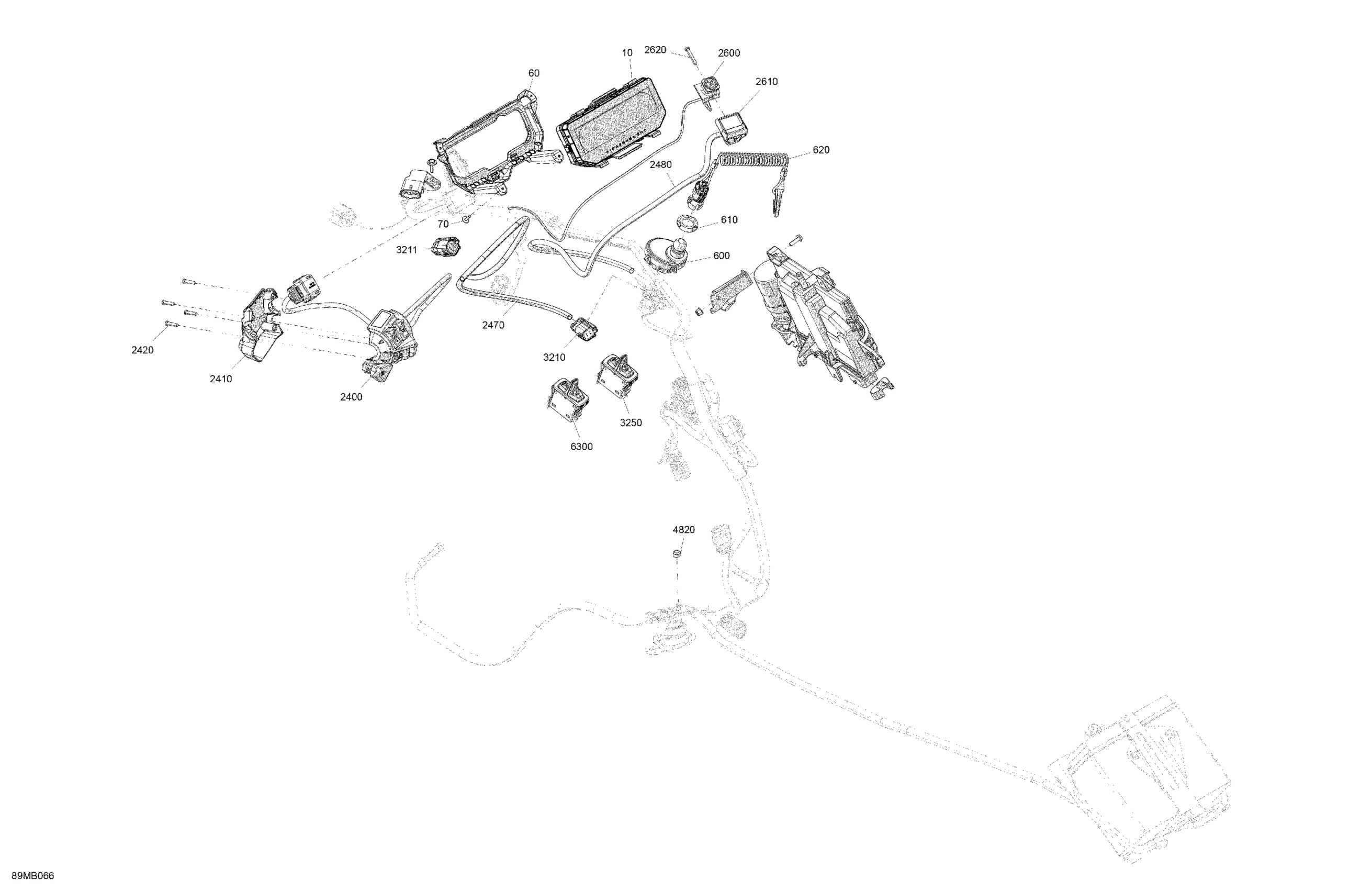

Ski-Doo RENEGADE 900 ACE TURBO R - XRS With SAS - 2022 Electric - Upper Section - VIP Medium Diagram

Description

Price

Multifunction Gauge Full Size Mono

515178227

$525.35

Gauge Support

515178965

$5.17

Screw M4 X 16

250000725

$2.87

600

Ignition Switch

710006855

$77.66

610

Safety Nut (DESS Switch)

278002963

$2.72

620

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$64.58

2400

LH Switch Housing

515178196

$266.89

2410

Housing Plate

515177147

$17.66

2420

Torx Screw

250000671

$0.83

2470

Braided Sleeve

415130141

$56.12

2480

Braided Sleeve

415130141

$56.12

2600

Emergency Stop Switch

515177931

$74.58

2610

Emergency Stop Switch Support

515177310

$8.60

2620

Torx Screw #8-18

250000263

$1.02

3210

4 Circuits Female Housing

515178177

$11.89

3211

Coil Connector

515178202

$12.88

3250

Rocket Switch

515178501

$19.20

4820

Elastic Stop Nut M6

232561434

$1.55

6300

Suspension Switch

515179101

$23.05
