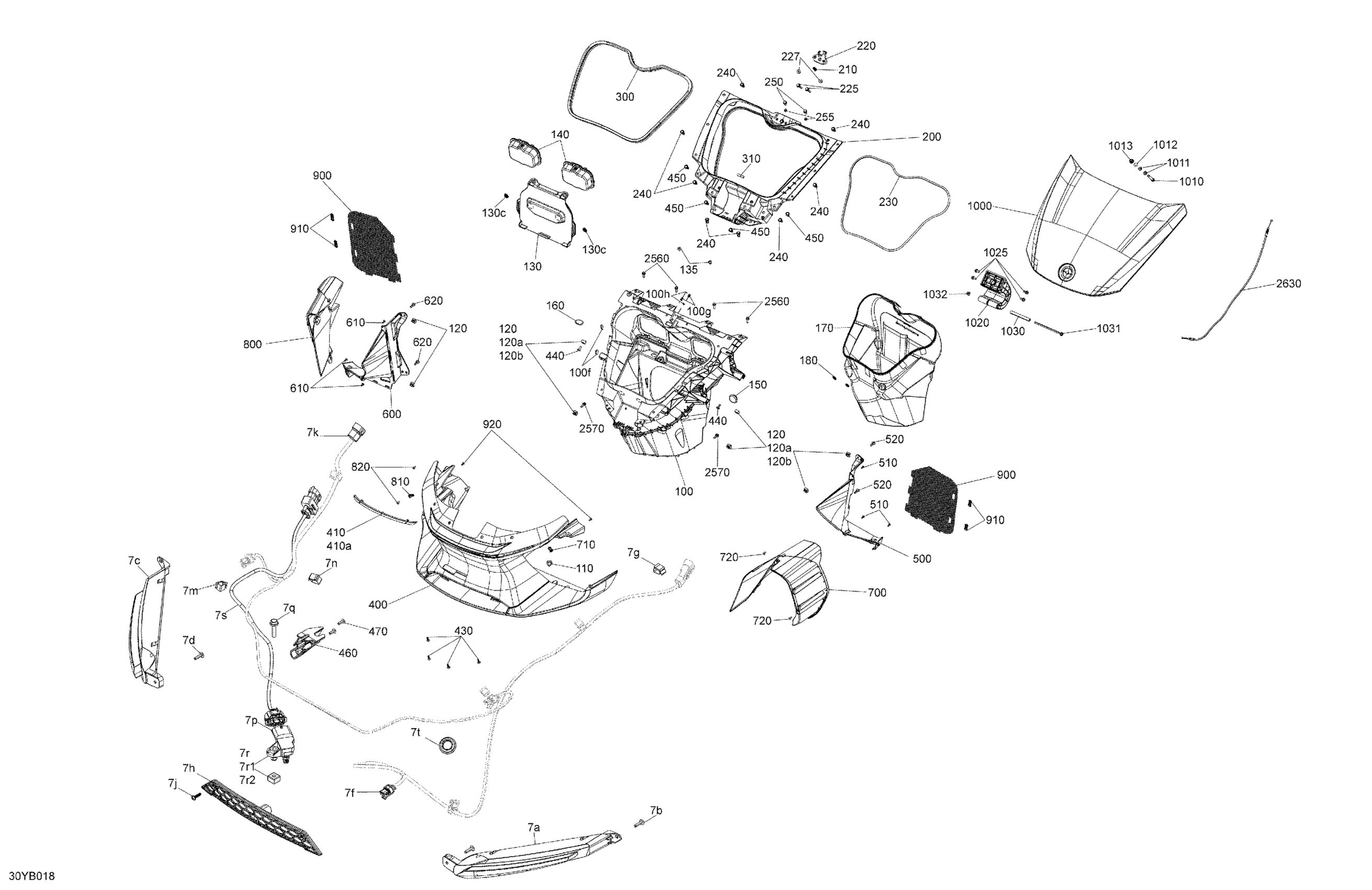

Can-Am RT LIMITED - Special Series - Mystery Blue Satin, Europe, 2022 Body - Front Storage Tray Diagram

#

Description
Price

7a

LH Bumper Trim

708200959

$22.49

7b

Torx-Truss Pt K40 X 16

250000759

$2.19

7c

RH Bumper Trim

708200960

$24.49

7d

Torx-Truss Pt K40 X 16

250000759

$2.19

7f

Connector Plug

710004901

$13.22

7g

Clip

414227300

$1.69

7h

Lighting Harness Connector Cap

708400406

$5.45

7j

Hex. Flange Screw K40 X 16

250001123

$2.19

7k

Connector Plug

710004901

$13.22

7m

Clip

414227300

$1.69

7n

Clip

414227300

$1.69

7p

Pressure And Temperature Sensor

707000995

$91.99

7q

Hex. Flange Screw M6 X 25

207662554

$1.49

7r

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.69

7r1

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.99

7r2

Hex. Elastic Stop Nut M6

232561600

$1.49

7s

AAPTS Harness

710004764

$17.49

7t

Cap

705003464

$12.49

100

Storage Box Ass'y | Includes 100 to 100j

705012290

$489.99

100f

Dual Lock Velcro Washer 3/4"

293740028

$4.19

100g

Rivet

390401400

$1.49

100h

Flat Washer 3 mm, Stainless Steel

234031600

$0.52

110

Rubber Bumper

293830005

$8.29

120

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.69

120a

M6 Nut Housing Ass'y | Includes 290 to 290b

269500252

$7.99

120b

Hex. Elastic Stop Nut M6

232561600

$1.49

130

Battery Cover Ass'y | Includes 130 to 130c

705018040

$29.99

130c

Dual Lock Velcro Washer 3/4"

293740028

$4.19

135

Torx Truss Screw M6 X 12

250000767

$2.09

140

Fuse Cover Ass'y | Includes 140 to 140b

705011444

$28.49

150

Rubber Plug

710002858

$2.85

160

Cap

708400166

$3.89

170

Soft Box Liner

708304274

$119.99

180

Dual Lock Velcro Washer 3/4"

293740028

$4.19

200

Deep Black, Upper Box Support

708201071

$55.99

210

Spring

705003911

$3.99

220

Latch

705007379

$28.99

225

Hex. Flange Screw M6 X 35

207663544

$1.49

227

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49

230

Neoprene Seal 1420MM

293250529

$11.49

240

Tuflok Plastic Rivet

293150230

$1.49

250

Hex. Flange Screw M6 X 16

207661644

$1.49

255

Elastic Stop Nut M6

232561434

$1.99

300

Gasket 4100Mm Long

219704387

$78.99

310

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$21.99

400

Deep Black, Front Bumper

708201076

$248.99

410

Sterling Silver, Upper Bumper Trim | Includes 410 to 410a

708201141

$36.99

410a

Upper Bumper Trim

708201124

$22.49

430

Torx Screw Truss Head K50X20 T20

250000760

$2.19

440

Torx Screw M6 X 16

250000755

$1.49

450

Tuflok Plastic Rivet

293150230

$1.49

460

Sensor Support

708201084

$11.49

470

Torx Truss PT K40 x 12

250001131

$2.19

500

Deep Black, LH Inner Air Scoop

708200879

$85.99

510

Torx Truss PT K40 x 12

250001131

$2.19

520

Torx Screw M6 X 20

250000712

$2.19

600

Deep Black, RH Inner Air Scoop

708200880

$85.99

610

Torx Truss PT K40 x 12

250001131

$2.19

620

Torx Screw M6 X 20

250000712

$2.19

700

Deep Black, LH Exterior Scoop

708201086

$85.99

710

Tuflok Plastic Rivet

293150230

$1.49

720

Torx Truss PT K40 x 12

250001131

$2.19

800

Deep Black, RH Exterior Scoop

708201087

$85.99

810

Tuflok Plastic Rivet

293150230

$1.49

820

Torx Truss PT K40 x 12

250001131

$2.19

900

Black Epoxy, Air Scoop Grille | Includes 900 to 900b

708200970

$53.99

910

Flat Clip

705004838

$7.73

920

Torx Truss PT K40 x 12

250001131

$2.19

1000

Mystery Blue, Front Hood | Includes 1000 to 1000a

708201144

$389.99

1010

Lug

705002223

$25.99

1011

Hex. Jam Nut M8

232180600

$1.49

1012

Flat Washer 8 mm

234081410

$1.49

1013

Elastic Flange Nut M8

233281464

$1.49

1020

Black, Hood Hinge | Includes 1020 to 1020a

708200886

$56.99

1025

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.99

1030

Spacer

705003322

$27.99

1031

Hex. Flange Screw M6 X 130

230663084

$3.49

1032

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.49

2560

Hexagonal Head Screw

210262050

$2.19

2570

Hex. Flange Screw M6 X 20

207662044

$2.09

2630

Hood Cable

517305742

$42.99
