Description

Price

20

Braided Sleeve 60MM Long

515178492

$5.22

25

Turbocharger Ass'y

420893746

$1,869.97

30

Support

512061280

$49.99

35

Hex. Flange Screw M8 X 20

207682046

$1.82

40

Washer

512061333

$9.65

45

PTO Limiter

512061334

$16.89

80

Hex. Flange Screw M8 X 50

250001058

$10.20

90

Upper Stopper

512061328

$16.89

400

Servo Motor Ass'y

420889432

$311.51

420

Circlip

293370122

$4.00

440

Hex. Flange Screw M5 X 10

207551044

$3.38

1000

Rear PTO Support Ass'y | Includes 1000 to 1000b

512061517

$74.58

1020

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.07

1030

Conical Spring Washer M8

250200146

$0.83

1200

Front PTO Support

512061025

$29.97

1210

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.07

1220

Conical Spring Washer M8

250200146

$0.83

1400

MAG Support Ass'y | Includes 1400 to 1400b

512061515

$76.89

1410

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.07

1420

Conical Spring Washer M8

250200146

$0.83

1520

Hex. Flange Screw M6 X 16

250001062

$1.43

1540

Hex. Flange Screw Din.6921 S.Grip M8 x 60

207586046

$1.94

1546

Conical Spring Washer M8

250200146

$0.83

1550

Hex. Flange Screw M8 X 55

207585544

$1.42

1560

Washer

506151245

$0.91

1570

Flat Washer With Teflon 8 mm

250200008

$3.12

1575

Conical Spring Washer M8

250200146

$0.83

1585

Yellow, Washer

503183200

$3.00

1595

Hex. Elastic Stop Nut M8

232581414

$0.47

1610

Spacer | Includes 1610 to 1610b

512061398

$7.38

1620

Torx Truss Screw M8 X 50

250000761

$6.18

1630

Hex. Flange Elastic Nut M8

233281414

$1.14

1700

Engine Stopper

512061137

$8.34

1720

Spacer

512061354

$19.20

2000

Chamber Ass'y | Includes 2000 to 2000q

508001089

$207.66

2000b

Rubber

512061083

$8.38

2000c

Screw

420441840

$2.06

2000h

Norma Clamp

293650079

$8.89

2000n

Hex. Flange Screw M5 X 25

207652544

$0.42

2000p

Flange Elastic Nut M5

233251434

$1.66

2000q

Torx Screw Truss Head K50X20 T20

250000760

$1.74

2005

Pressure Sensor And Air Temperature

515178563

$134.52

2020

Torx-Truss Pt K40 X 16

250000759

$1.74

2030

Norma Clamp

293650091

$4.60

2045

Norma Clamp

293650079

$8.89

2050

Rubber Cap

420201630

$4.28

2060

Airbox Support

512061274

$10.57

2070

Pop Rivet 3/16"

293150103

$0.54

2080

Pop Rivet 3/16" | DS 650 X

293150104

$1.49

2090

Inlet Tube

512061281

$25.35

2100

Norma Clamp

293650077

$6.11

3600

Throttle Cable

512061326

$19.97

3690

Circlip

414274500

$0.74

3800

Upper Housing

512060859

$8.38

3800a

Socket Set Screw M8 X 10

414440800

$4.00

3810

Lower Housing

512060860

$16.89

3820

Throttle Ass'y

512061266

$114.58

3840

Flange Screw M5x12

250000991

$6.18

4200

Ignition Coil

512061168

$129.97

4210

Torx Screw Truss Head K50X20 T20

250000760

$1.74

4220

Ignition Cable

512061166

$26.89

4240

Spark Plug Wire Holder

512061238

$4.28

4270

O-Ring

293300059

$7.31

5050

Clamp

512060993

$5.22

5300

Starter Grip

512060136

$14.54

7900

Oil Tank

512061329

$36.12

8000

Oil Pump

519000332

$124.58

8010

Hose 7,94 mm ID

512061379

$1.26

8040

Hose

512061381

$2.32

8060

Oetiker Clamp

293650140

$2.15

8090

Protector Tube | Not shown

503195447

$13.85

8120

Torx Truss Screw M6 X 12

250000767

$1.66

8130

Torx-Truss Pt K40 X 16

250000759

$1.74

8140

Grommet

512061322

$8.60

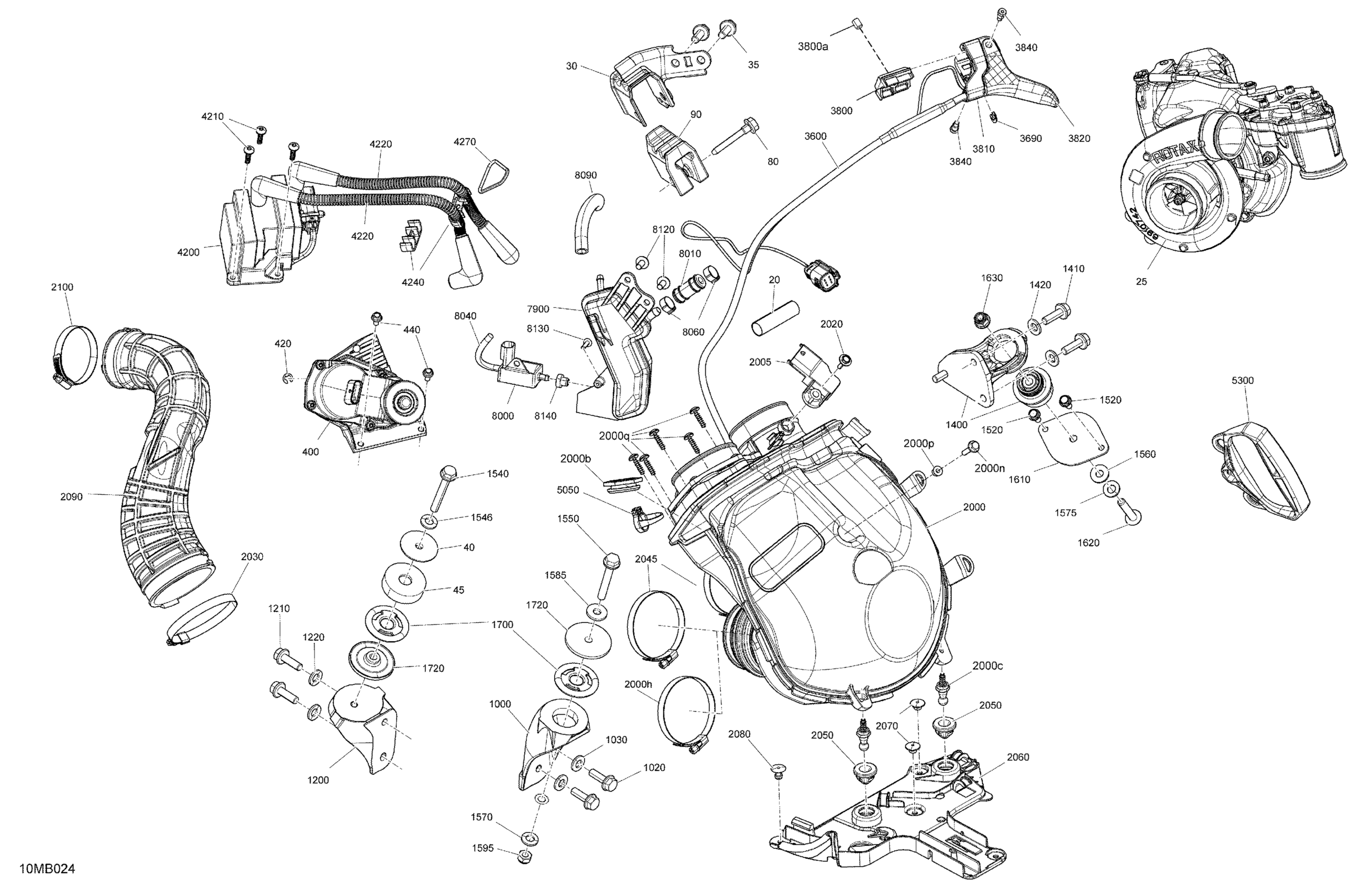

Ski-Doo SUMMIT 850 E-TEC TURBO - X with EXPERT Package - 154" - 2022 Engine - System Diagram
