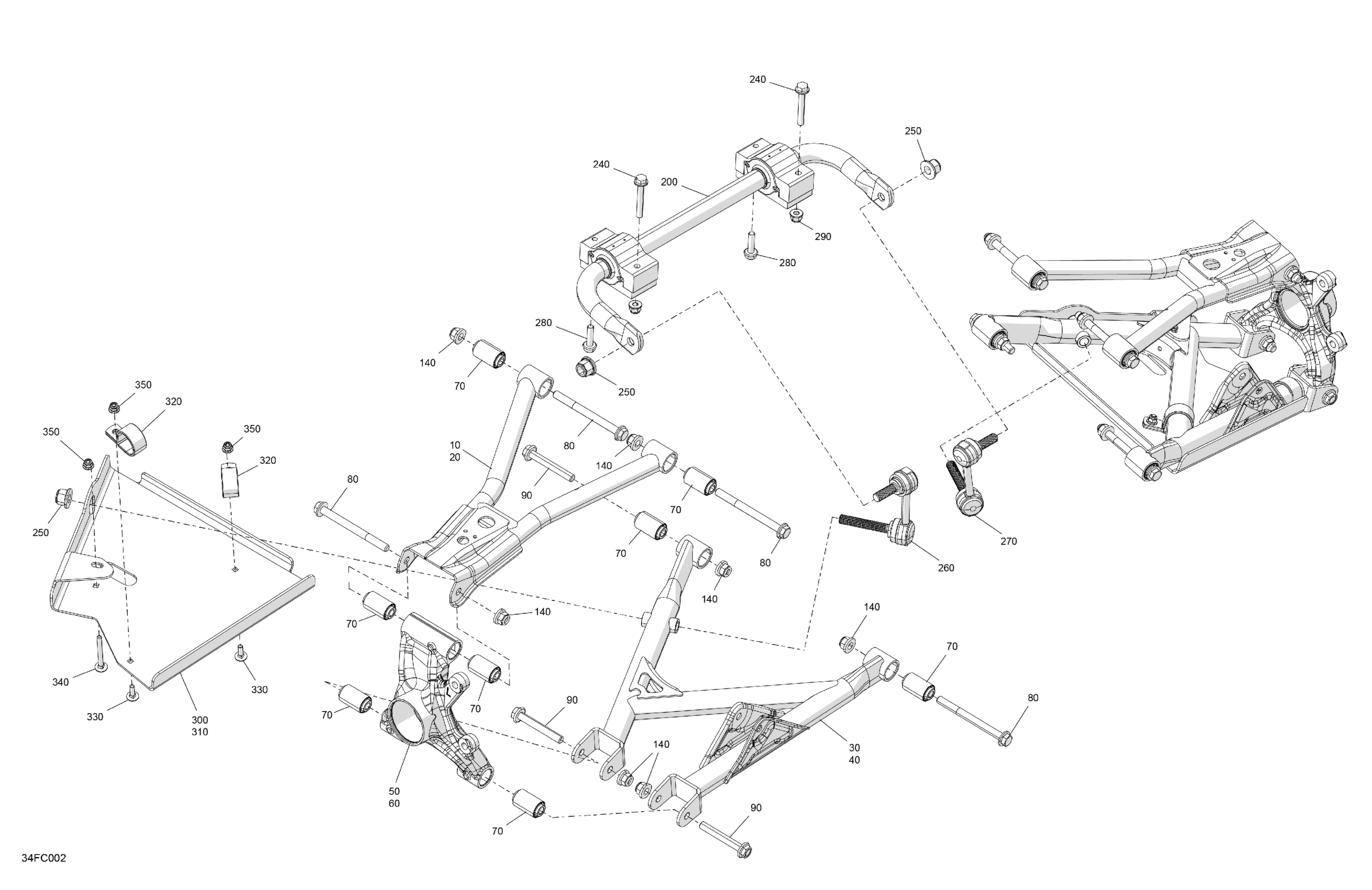

Can-Am Outlander PRO Hunting Edition HD7 - 2023 Suspension - Rear Components Diagram

Description

Price

LH Upper Suspension Arm

706003510

$156.89

RH Upper Suspension Arm

706003511

$156.89

LH Lower Suspension Arm Ass'y With Bushing This part replaces 706003512.

715010681

$216.89

RH Lower Suspension Arm Ass'y With Bushing This part replaces 706003513.

715010680

$216.89

LH Rear Knuckle

706004297

$119.97

RH Rear Knuckle

706004298

$119.97

Suspension Arm Bushing

706004511

$12.91

Hex Flange Screw DIN.6921

230601046

$2.20

Hex. Flange Screw M10 X 70

207607046

$2.91

140

Hex. Flange Elastic Nut M10

233201436

$1.74

200

Stabilizer Bar Ass'y

706004983

$96.89

240

Hex. Flange Screw M8 X 55

207685544

$4.41

250

Hex. Flange Elastic Nut M12

233221414

$5.10

260

LH Rear Stabilizer Link

706205088

$67.66

270

RH Rear Stabilizer Link

706205089

$67.66

280

Hex. Flange Screw M8 X 30 Scotch Grip

250001073

$4.25

290

Hex. Flange Elastic Nut M8

233281414

$1.14

300

LH Rear Suspension Arm Guard

706003924

$114.58

310

RH Rear Suspension Arm Guard

706003925

$114.58

320

Fastener

706005364

$7.60

330

Carriage Bolt M6 X 20

250000677

$2.06

340

Carriage Bolt M6 X 60

207766054

$16.12

350

Hex. Flange Elastic Nut M6

233261466

$1.66
