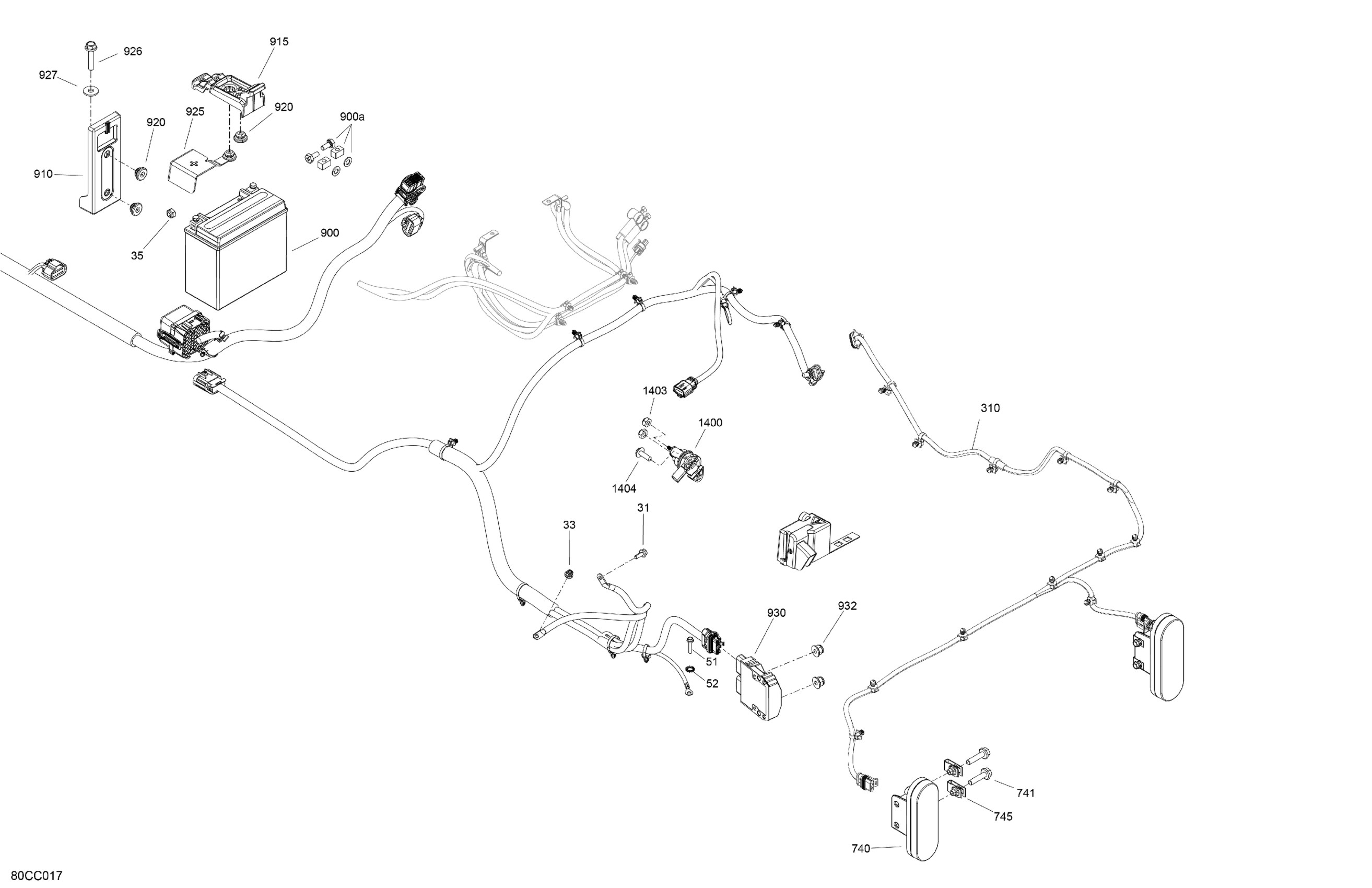

Can-Am Defender 6X6 HD10 - DPS - International, 2023 Electric - Rear Section Diagram

#

Description
Price

31

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

33

Elastic Stop Nut M6, Brass

232561200

$3.51

35

Elastic Stop Nut M6, Brass

232561200

$3.51

51

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.56

52

External Serrated Lock Washer 6 mm

234461608

$0.92

310

Rear Wiring Harness

710006500

$115.35

740

Tail Light

710004497

$110.74

741

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$1.74

745

Panel Nut M6 X 1.0

250100198

$1.73

900

12 Volt Battery 18AH In Box | Includes items 7 to 8

296000444

$126.07

900a

Battery Bolt Kit

250000282

$2.95

901

Washer | Not Shown

710009082

$1.02

903

Screw | Not Shown

710009084

$1.52

910

Fixation Plate

710004788

$9.77

915

Fixation Plate

710004789

$6.92

920

Stopper Rubber

705014429

$6.09

925

Battery Cable Cap

710006471

$2.75

926

Hex. Flange Screw M6 X 30, Scotch Grip

207563044

$3.61

927

Flat Washer 6 mm

234062410

$0.64

930

Voltage Regulator

710005842

$159.87

932

Hex. Flange Elastic Nut M6

233261494

$1.26

1400

Starter Relay

278003012

$35.07

1403

Elastic Stop Nut M6, Brass

232561200

$3.51

1404

Hex. Plastic Screw M4.8 X 16

243141630

$1.74
