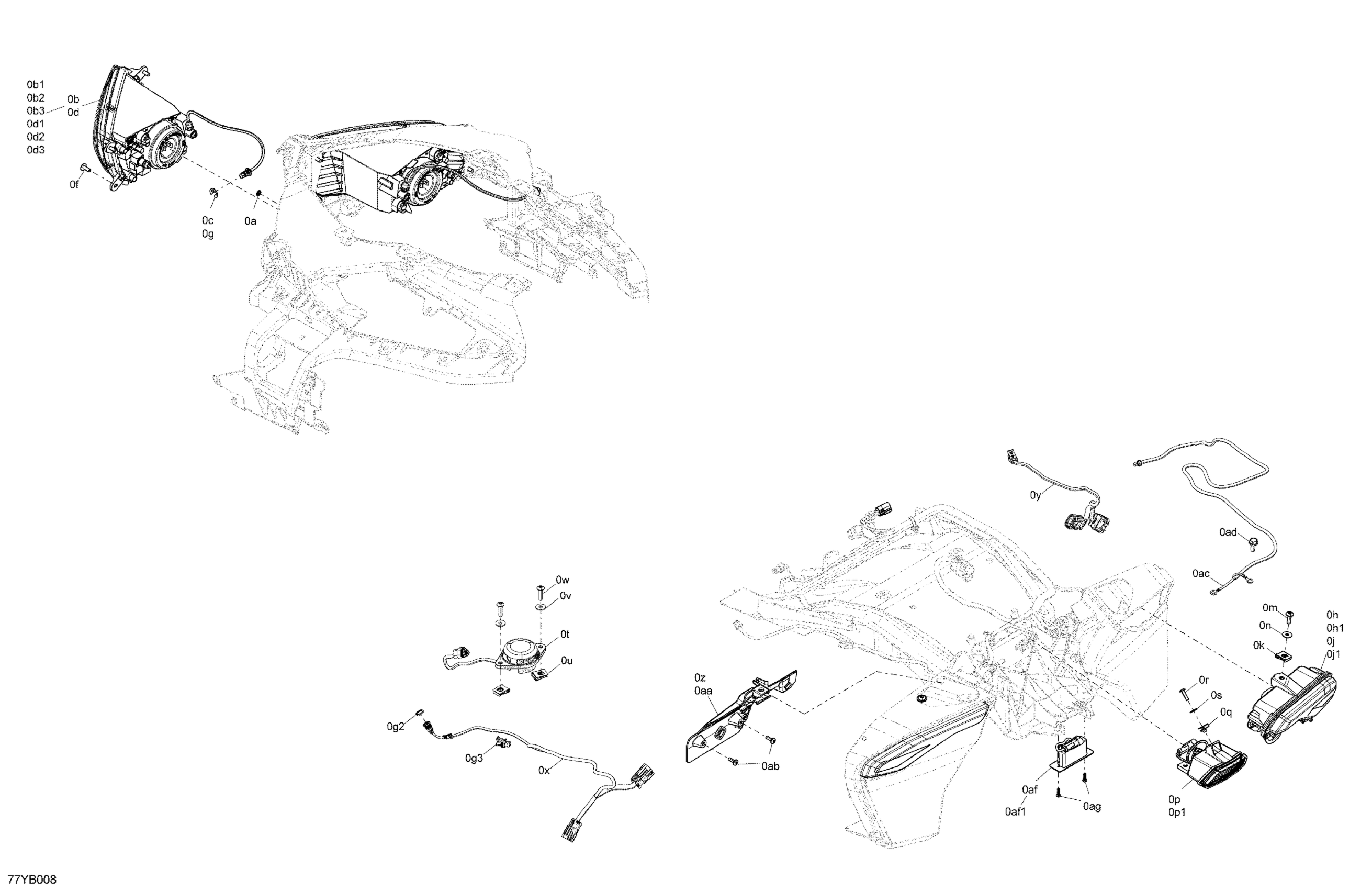

Can-Am F3 LIMITED - Chrome Edition - Viper Red, 2022 Electric - Vehicle Lighting Diagram

#

Description
Price

0a

Push Nut

250001189

$1.11

0b

LH Headlight | Includes 0b to 0b3

710006997

$240.00

0b1

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.05

0b2

Rubber Cap Protector

219800280

$17.66

0b3

Spring

219800281

$3.23

0c

E-Circlip

293370013

$0.62

0d

RH Headlight | Includes 0d to 0d3

710006998

$240.00

0d1

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.05

0d2

Rubber Cap Protector

219800280

$17.66

0d3

Spring

219800281

$3.23

0f

Torx Truss Screw M6 X 16

250000721

$1.39

0g

E-Circlip

293370013

$0.62

0g2

Nut

710004108

$6.00

0g3

Female Housing, 2 Circuits

409209500

$13.48

0h

LH Tail Light | Includes 0k to 0k1

710007002

Unavailable

0h1

Flasher Bulb

219800304

$7.00

0j

RH Tail Light | Includes 0m to 0m1

710007004

Unavailable

0j1

Flasher Bulb

219800304

$7.00

0k

Panel Nut M6 X 1.0

250100208

$1.07

0m

Torx Screw M6 X 20

250000722

$1.34

0n

Flat washer M6

250200164

$0.83

0p

Back-Up Light | Includes 0k to 0k1

710007005

Unavailable

0p1

Bulb 12V 10W

219800322

$9.00

0q

Panel Nut M5 X 0.8

250000958

$3.48

0r

Torx Truss Screw M5 X 20

250000715

$2.06

0s

Stainless Steel Flat Washer M5

234052670

$0.83

0t

Passenger Detection Switch

710008103

$72.28

0u

Panel Nut M6 X 1.0

250100208

$1.07

0v

Stainless Steel Flat Washer

234062670

$1.74

0w

Torx Truss Screw M6 X 25

250000807

$1.74

0x

LH Cargo Harness

710006437

$1,030.00

0y

Cargo Harness RH

710006429

$28.00

0z

LH Connector Support

710004643

$13.00

0aa

RH Connector Support

710004644

$11.00

0ab

Torx Screw K50 X 16

250000720

$1.39

0ac

Antenna Cable Ass'y | Includes 0ac to 0ac1

710006980

$122.00

0ad

Hex. Flange Screw M8 X 20

207682044

$0.92

0af

License Light | Includes 0an to 0an1

710001451

$76.00

0af1

Bulb

219800128

$2.99

0ag

Hex. Flange Screw K40 X 16

250001123

$2.06
