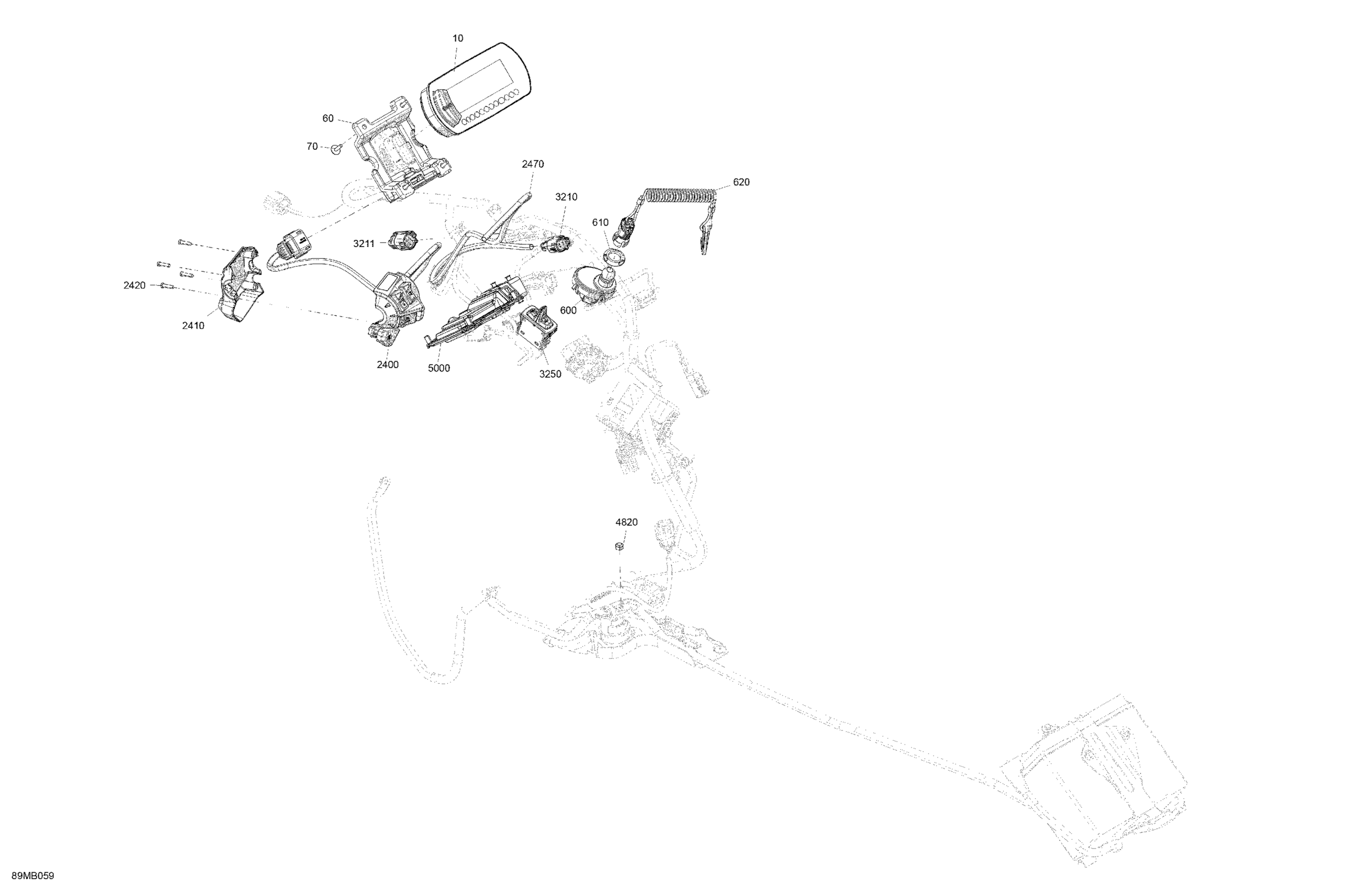

Ski-Doo RENEGADE 900 ACE TURBO - Adrenaline - 2022 Electric - Upper Section Diagram

Description

Price

2 Button Multifunction Gauge Full Size Color

515178226

$557.66

Housing

515178450

$5.22

Screw M4 X 16

250000725

$2.87

600

Ignition Switch

710006855

$77.66

610

Safety Nut (DESS Switch)

278002963

$2.72

620

Grey, RF Key Ass'y | Includes 620 to 620d

515178286

$64.58

2400

LH Switch Housing

515178102

$266.12

2410

Housing Plate

515177147

$17.66

2420

Torx Screw

250000671

$0.83

2470

Braided Sleeve

415130141

$56.12

3210

4 Circuits Female Housing

515178177

$11.89

3211

Coil Connector

515178202

$12.88

3250

Rocket Switch

515178501

$19.20

4820

Elastic Stop Nut M6

232561434

$1.55

5000

Engine Control Module

420464458

$408.15
