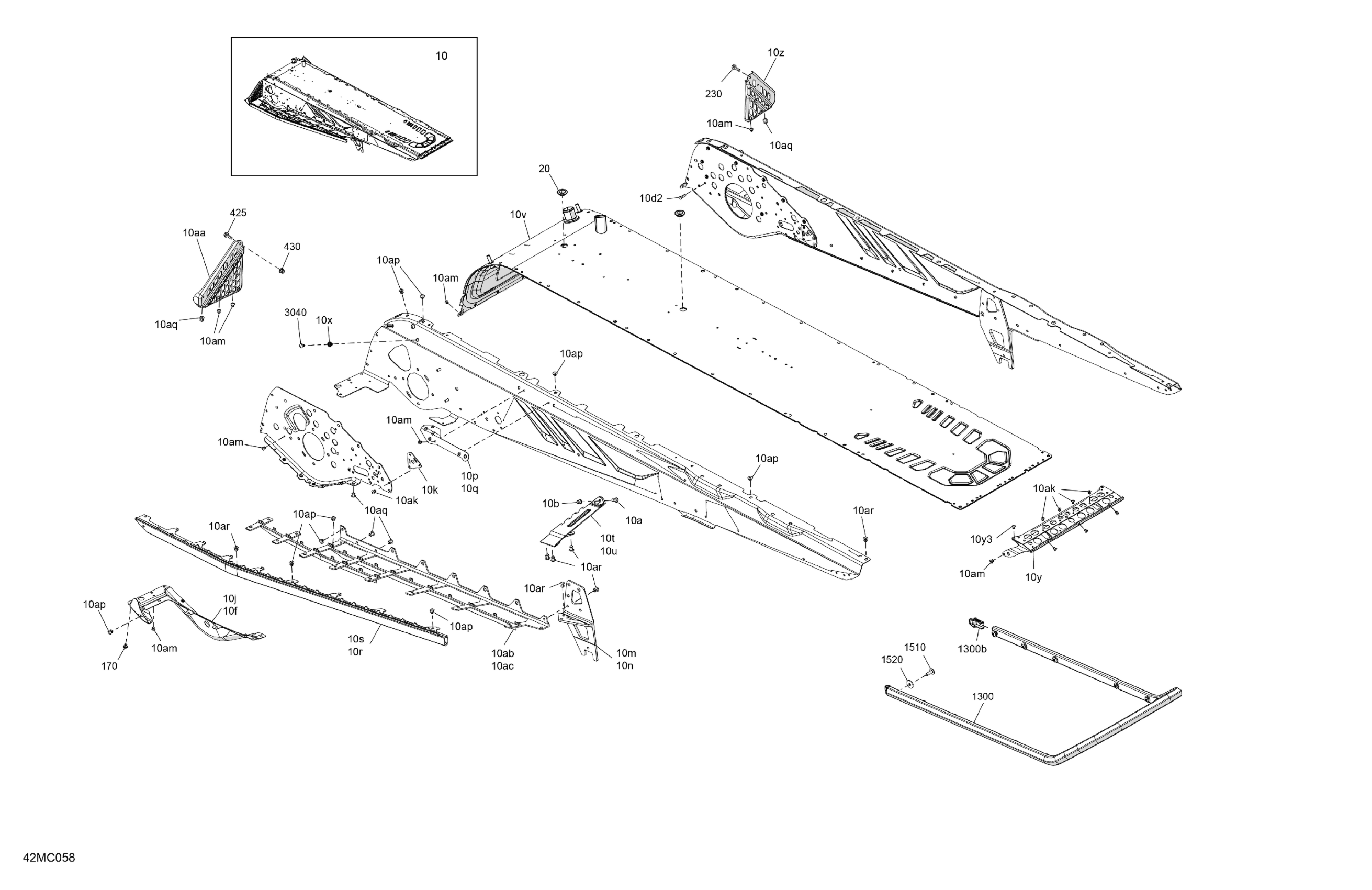

Ski-Doo SUMMIT 850 E-TEC - EXPERT - Package 165" (THPP) - 2023 Frame - System - Rear Section Diagram

Description

Price

Deep Black, Chassis Tunnel Module 165" Short | Includes 10 to 10ar

518334318

Unavailable

10a

Rivet Magna-Grip 6,4 X 50,8

293150148

$0.64

10b

Collar Huck Magna-Grip 6.4

293150149

$0.36

10d2

Clinch Stud M6 X 20

250300027

$1.87

10f

RH Footrest Reinforcement

518332455

$79.07

10j

LH Footrest Reinforcement

518332456

$79.07

10k

Front Arm Reinforcement

518333257

$2.55

10m

LH Rear Suspension Support

518332458

$91.76

10n

RH Rear Suspension Support

518332457

$41.01

10p

LH Under Chassis Reinforcement

518331744

$15.64

10q

RH Under Chassis Reinforcement

518331745

$16.39

10r

RH Formed Boarding Step

518332833

$179.07

10s

LH Formed Boarding Step

518332834

$179.07

10t

LH Rear Footrest Reinforcement

518334222

$44.00

10u

RH Rear Footrest Reinforcement

518334223

$44.00

10v

Radiator Tunnel 154 Ass'y

518334492

$658.93

10x

Clinch Nut M6 Hexsert

605636003

$4.00

10y

Rear Cap Ass'y | Includes 10a17 to 10a17c

518331704

$57.43

10y3

Rivet Avibulb 3/16

293150203

$0.28

10z

RH Footrest

518332462

$41.01

10aa

LH Footrest

518332463

$41.01

10ab

LH Rear Perforated Footstep

518332464

$105.94

10ac

RH Rear Perforated Footstep

518332466

$105.94

10ak

Avex Rivet

390909100

$0.28

10am

Avex Rivet

390909200

$0.28

10ap

Rivet Ornit 6,5 X 12.5

293150265

$1.88

10aq

Ornit Rivet 6,5 X 14.5

293150266

$1.88

10ar

Rivet Ornit 6,5 X 16.5

293150267

$1.88

Black, Plug

293730052

$6.18

170

Insert M5 - 0.8

293450267

$4.09

230

Hex. Flange Screw M6 X 20

207562056

$2.00

425

Hex. Flange Screw M6 X 20

207562056

$2.00

430

Elastic Flange Nut M6 X 1.0

233261416

$2.00

1300

Rear Short Bumper 165 | Includes 1300 to 1300b

518331206

$134.99

1300b

Cap

520001612

$8.36

1510

Torx Screw M6 X 1.0 X 18, Scotch Grip

250000779

$2.00

1520

Flat Washer

224061201

$1.27

3040

Dart

293730079

$1.87
