Description

Price

10

Black, Chain Case Ass'y | Includes 10 to 10b

504154227

$98.99

20

Rivet Magna-Grip 6,4 X 50,8

293150148

$1.49

30

Collar Huck Magna-Grip 6.4

293150149

$1.49

60

Washer

504082900

$2.69

70

Torx Screw M8 X 20, Scotch Grip

250000740

$2.59

80

Flange Elastic Nut M6

233261434

$4.49

100

Oil Seal

293200168

$14.99

110

Ball Bearing

293350153

$12.65

120

Circlip

504152576

$10.99

130

Shim

504152628

$11.49

140

Sprocket 21 Teeth

504153910

$45.99

280

Spring Washer M10

504152784

$7.79

290

Hex. Flange Screw M10 X 30, Scotch Grip

207503046

$2.99

1100

Oil Seal

293200159

$16.49

1110

Ball Bearing

293350059

$30.99

1120

Circlip

504152582

$10.99

1130

Sprocket 53 Teeth

504153998

$51.99

1140

Circlip

504152572

$7.09

1150

O-Ring

293300201

$1.49

1160

Magnetic Cap | Includes 150c to 150c2

504154019

$27.99

1160b

Cap

504154043

$2.09

1500

Drive Chain 116 Links

504153397

$234.99

1510

Hair Pin

414575600

$1.89

1520

Adjustment Screw

504153760

$25.99

1540

Hex. Countersunk Drain Plug

250500013

$8.09

1545

Hex. Countersunk Drain Plug

250500013

$8.09

1550

O-Ring

293300202

$1.49

1600

Chain Tensioner

504154577

$17.99

1610

Slider Chain

504153312

$67.99

1650

Circlip

293370105

$2.19

1690

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$2.09

1700

Deep Black, Chain Case Cover Ass'y | Includes 1700 to 1700f

504154078

$194.99

1700d

Clip Connector

515178223

$2.09

1700f

Braided Sleeve

415130141

$56.99

1710

O-Ring

293300200

$13.49

1720

Hex. Flange Screw M6X20

250001153

$2.09

1740a

Cap

504152930

$29.99

1740b

Straight Pipe Fitting

293710180

$9.39

1740c

Polyurethane Hose 10000Mm Long

219704410

$57.99

1790

Hex. Flange Screw M6 X 35

250001015

$1.49

2030

O-Ring

293300201

$1.49

2040

Cap

504154043

$2.09

2050

Circlip

504152572

$7.09

2500

Bearing Housing Ass'y | Includes 2500 to 2500b

504153695

$19.49

2500b

Clinch Stud, M8 X 25

250300028

$4.49

2510

Hex. Flange Elastic Nut M8

233281414

$1.49

3000

Drive Axle Ass'y | Includes 3000 to 3000f

504154430

$412.99

3000b

Sold With Drive Axle

XXXX

Unavailable

3000c

Sold With Drive Axle

XXXX

Unavailable

3000d

Retaining Ring

504154417

$21.99

3000f

Ball Bearing

293350059

$30.99

3200

Track Ass'y 16" X 154" X 3" | Track Profil 3''

504153785

$1,629.99

3200

Track 16 X 154 X 2,5 | Includes 3200 to 3200b

504154405

$1,239.99

4000

Hex. Button Head Screw M8 X 1.25 X 35

250000764

$2.09

4020

Washer

504082900

$2.69

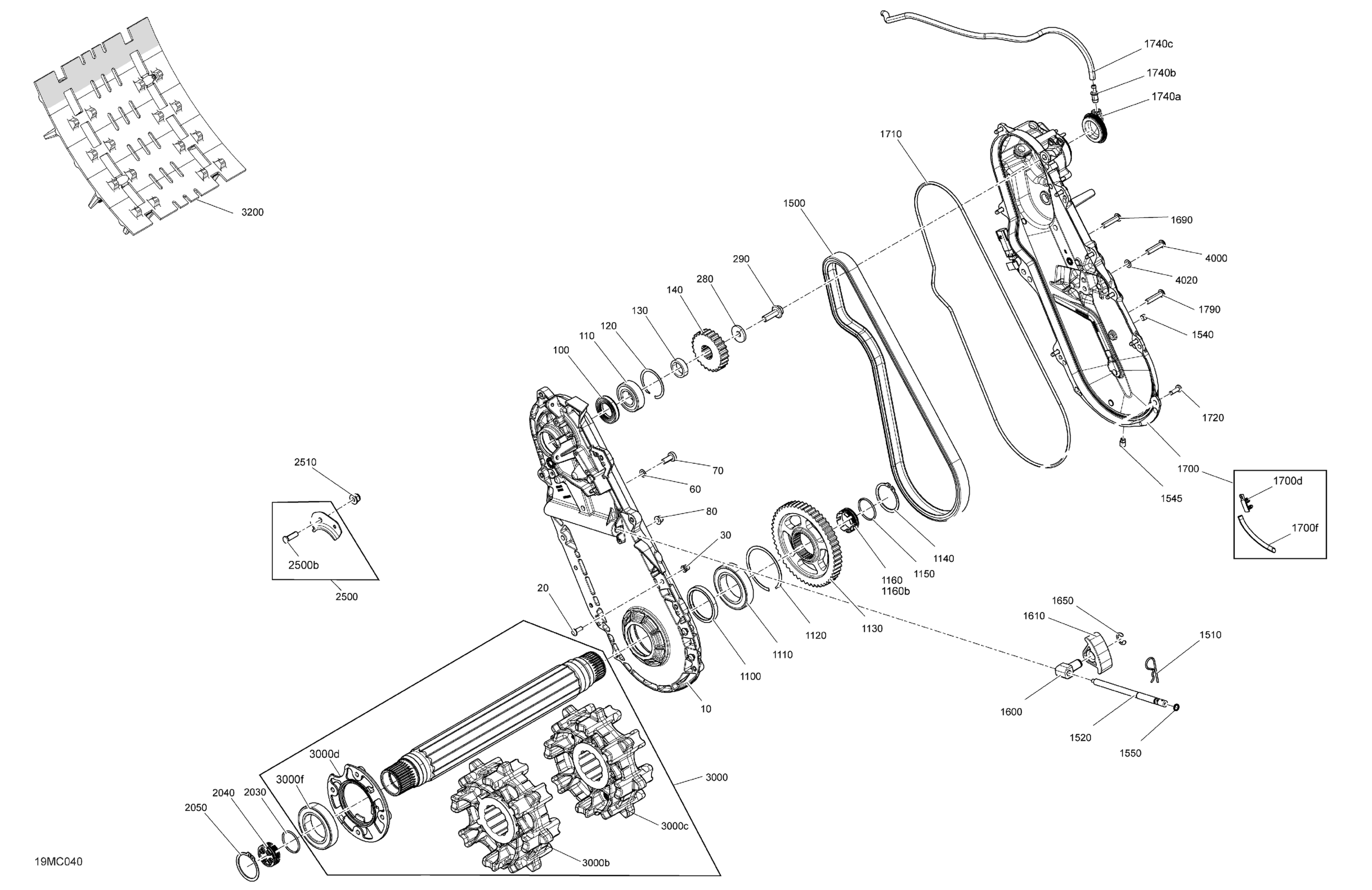

Ski-Doo SUMMIT 850 E-TEC - EXPERT - Package 165" (THPP) - 2023 Drive - System Diagram

Black, Chain Case Ass'y | Includes 10 to 10b

Rivet Magna-Grip 6,4 X 50,8

Collar Huck Magna-Grip 6.4

Washer

Torx Screw M8 X 20, Scotch Grip

Flange Elastic Nut M6

Oil Seal

Ball Bearing

Circlip

Shim

Sprocket 21 Teeth

Spring Washer M10

Hex. Flange Screw M10 X 30, Scotch Grip

Oil Seal

Ball Bearing

Circlip

Sprocket 53 Teeth

Circlip

O-Ring

Magnetic Cap | Includes 150c to 150c2

Cap

Drive Chain 116 Links

Hair Pin

Adjustment Screw

Hex. Countersunk Drain Plug

Hex. Countersunk Drain Plug

O-Ring

Chain Tensioner

Slider Chain

Circlip

Hex. Button Head Screw M8 X 1.25 X 35

Deep Black, Chain Case Cover Ass'y | Includes 1700 to 1700f

Clip Connector

Braided Sleeve

O-Ring

Hex. Flange Screw M6X20

Cap

Straight Pipe Fitting

Polyurethane Hose 10000Mm Long

Hex. Flange Screw M6 X 35

O-Ring

Cap

Circlip

Bearing Housing Ass'y | Includes 2500 to 2500b

Clinch Stud, M8 X 25

Hex. Flange Elastic Nut M8

Drive Axle Ass'y | Includes 3000 to 3000f

Sold With Drive Axle

Sold With Drive Axle

Retaining Ring

Ball Bearing

Track Ass'y 16" X 154" X 3" | Track Profil 3''

Track 16 X 154 X 2,5 | Includes 3200 to 3200b

Hex. Button Head Screw M8 X 1.25 X 35

Washer
