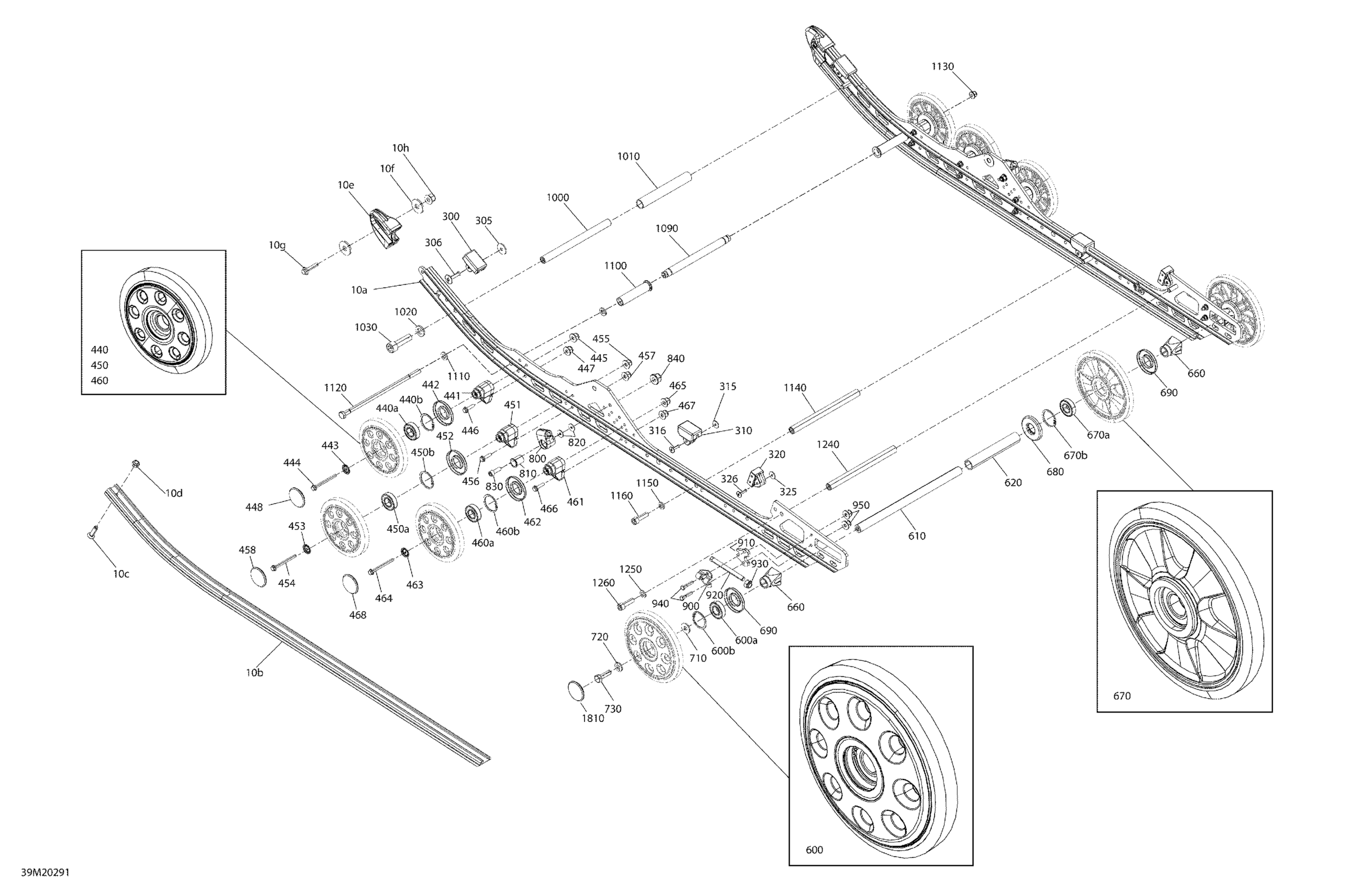

Ski-Doo RENEGADE 900 ACE Turbo - XRS - 2020 Suspension, Rear - Lower Section - XRS Diagram

#

Description
Price

10a

Black, Runner 137"

503193552

$272.36

10a

Green Runner 137" | Model Manta Green

503193556

$272.36

10b

Black, Slider Shoe 137''

503191306

$26.84

10c

Phillips Screw M6 X 25

208562531

$2.00

10d

Elastic Stop Nut M6

232561434

$1.78

10e

Slide Protector

503192530

$16.39

10f

Washer

250200140

$0.96

10g

Hex. Flange Screw M5 X 25

207652544

$0.48

10h

Flange Elastic Nut M5

233251434

$1.91

300

Rubber Stopper

503190576

$9.93

305

Washer

503191273

$1.03

306

Pop Rivet 3/16

293150224

$0.96

310

Rubber Stopper Ass'y

503195523

$5.09

315

Washer

503191273

$1.03

316

Pop Rivet 3/16

293150224

$0.96

320

Rubber Stopper

503192750

$12.27

325

Washer

503191273

$1.03

326

Pop Rivet 3/16

293150224

$0.96

440

Black, Wheel Ass'y 147 mm | Includes 460 to 460b

503191311

$44.75

440a

Ball Bearing | Package-STD

503190396

$8.18

440b

Retaining Ring

415129371

$8.66

441

Casted Support

503193894

$12.37

442

Labyrinth Seal

503190434

$4.16

443

Wheel Cup M6

503191820

$4.52

444

Hex. Flange Screw M6 X 70

250000944

$4.15

445

Hex. Flange Elastic Nut M6

233261466

$1.91

446

Hex. Flange Screw M6 X 25

250000945

$4.15

447

Hex. Flange Elastic Nut M6

233261466

$1.91

448

Black, Wheel Cap

503192771

$2.21

450

Black, Wheel Ass'y 147 mm | Includes 460 to 460b

503191311

$44.75

450a

Ball Bearing | Package-STD

503190396

$8.18

450b

Retaining Ring

415129371

$8.66

451

Casted Support

503193894

$12.37

452

Labyrinth Seal

503190434

$4.16

453

Wheel Cup M6

503191820

$4.52

454

Hex. Flange Screw M6 X 70

250000944

$4.15

455

Hex. Flange Elastic Nut M6

233261466

$1.91

456

Hex. Flange Screw M6 X 25

250000945

$4.15

457

Hex. Flange Elastic Nut M6

233261466

$1.91

458

Black, Wheel Cap

503192771

$2.21

460

Black, Wheel Ass'y 147 mm | Includes 440 to 440b

503191152

$44.75

460a

Ball Bearing | Package-STD

503190396

$8.18

460b

Retaining Ring

415129371

$8.66

461

Casted Support

503193894

$12.37

462

Labyrinth Seal

503190434

$4.16

463

Wheel Cup M6

503191820

$4.52

464

Hex. Flange Screw M6 X 70

250000944

$4.15

465

Hex. Flange Elastic Nut M6

233261466

$1.91

466

Hex. Flange Screw M6 X 25

250000945

$4.15

467

Hex. Flange Elastic Nut M6

233261466

$1.91

468

Black, Wheel Cap

503192771

$2.21

600

Black - Wheel Ass'y 180 mm | Includes 600 to 600b

503194202

$48.48

600a

Ball Bearing | Package-STD

503190396

$8.18

600b

Retaining Ring

415129371

$8.66

610

Rear Axle

503190429

$58.18

620

Rear Spacer

503191263

$14.90

660

Rear Wheel Spacer

503190428

$5.88

670

Black, Wheel Ass'y 180 mm | Includes 670 to 670b

503194050

$48.48

670a

Ball Bearing | Package-STD

503190396

$8.18

670b

Retaining Ring

415129371

$8.66

680

Labyrinth Seal

503190682

$5.67

690

Labyrinth Seal

503190434

$4.16

710

Washer

503191910

$2.18

720

Conical Spring Washer 10 mm

234201474

$1.60

730

Hex Screw With Nilon Patch, M10 X 35

250000817

$4.15

800

Spring Support Kit

861805547

$7.90

810

Spring Support Kit

861805547

$7.90

820

Flat Washer 8 mm

234082410

$1.27

830

Socket Screw M8 X 25

205082554

$2.00

840

Elastic Flange Nut M8

233281466

$0.96

900

Tensioner

503192583

$5.67

910

Spacer

503193250

$13.54

920

Hex Screw M10 x 100

230100054

$6.07

930

Elastic Locking Nut M10

233601466

$2.00

940

Hex. Cap Screw M6 X 30

207063054

$5.06

950

Hex. Flange Elastic Nut M6

233261466

$1.91

1000

Axle Strap

503191260

$28.33

1010

Spacer

503196943

$7.36

1020

Washer

503192496

$0.73

1030

Socket Head Screw M10 X 35

205503554

$7.09

1090

Pivot Axle

503193435

$37.28

1100

Center Bushing

503191259

$8.70

1110

Flat Washer

250200143

$3.01

1120

Bolt M10 X 251MM

503193227

$15.64

1130

Flange Elastic Nut M10

233201466

$3.01

1140

Axle Strap

503191260

$28.33

1150

Washer

503192496

$0.73

1160

Socket Head Screw M10 X 35

205503554

$7.09

1240

Axle Strap

503191260

$28.33

1250

Washer

503192496

$0.73

1260

Socket Head Screw M10 X 35

205503554

$7.09
