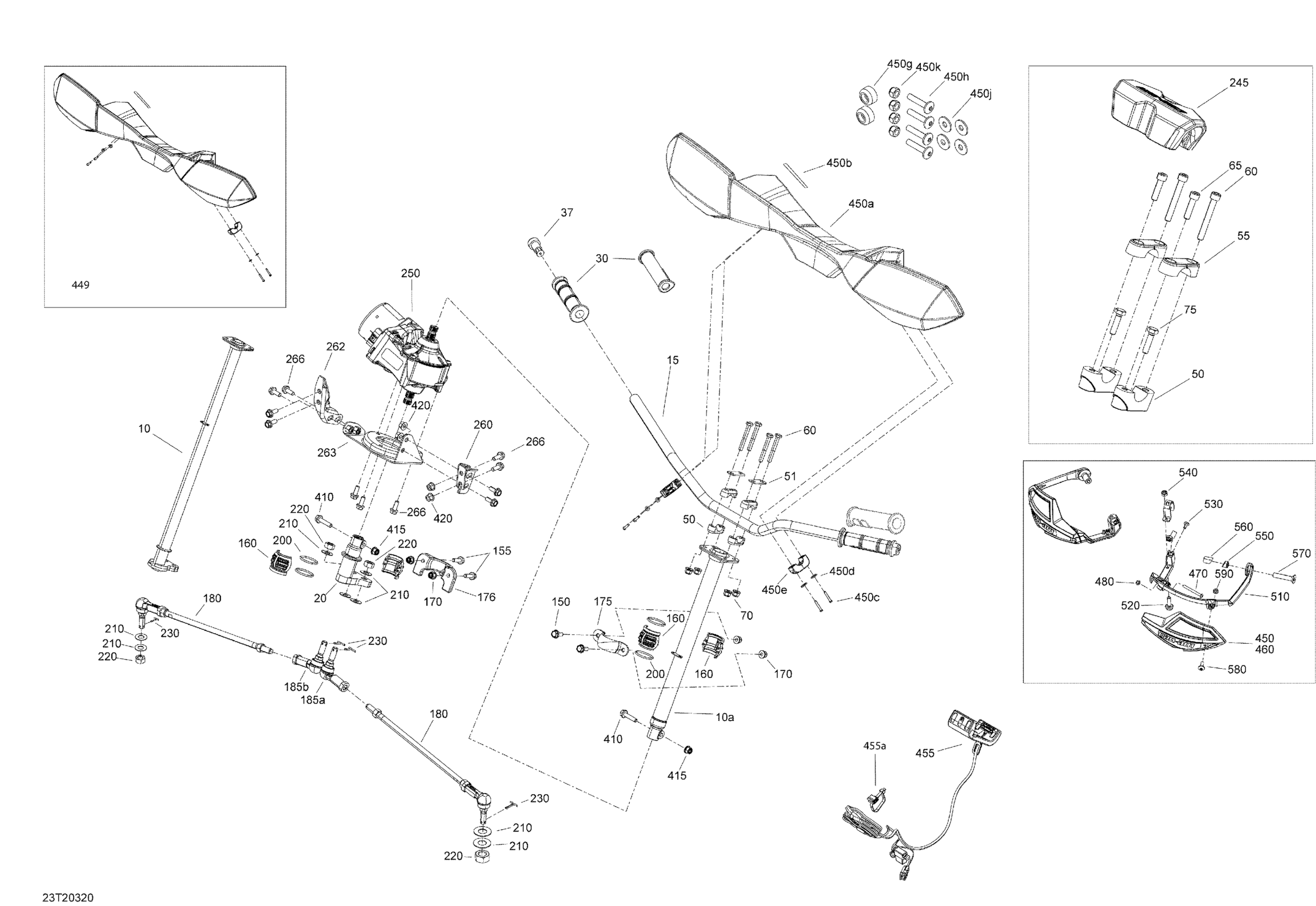

Can-Am Outlander MAX 1000R EFI - XTP_LTD - International - Non-European Communities, 2020 Steering Diagram

#

Description
Price

10

Main Tube

709401008

$166.12

10a

Main Tube Kit | Model With DPS

703501108

$67.66

15

Black, Handle Bar

709401240

$55.35

15

Anodized Handlebar | Package XTP, XXC

709402292

$64.58

20

Pitman Arm | Model With DPS Except XMR

703501160

$41.51

30

Grey, Handle Grip

709400443

$13.83

30

Handle Grip

709400493

$14.75

37

End Piece

709400449

$8.29

50

Lower Mounting Clamp

709402750

$27.66

50

Steering Support

709401799

$20.74

51

Stiffner

709400509

$4.43

55

Support

709400496

$27.66

60

Socket Head Screw M8 X 60

205086060

$3.38

60

Hex. Screw M8 X 60

207086046

$2.30

65

Socket Screw M8 X 30

205083060

$2.89

70

Hex. Elastic Flange Nut M8

233281416

$1.25

75

Hex. Screw M8 X 30

207183060

$1.30

150

Hex. Flange Screw M8 X 20

207682044

$0.92

155

Hex. Flange Screw M8 X 25

207682544

$0.90

160

Spherical Half Bushing

709400783

$6.14

170

Hex. Flange Elastic Nut M8

233281414

$1.14

175

Upper Column Attachment

709400827

$1.00

176

Column Attachment

709401428

$36.12

180

Tie-Rod Ass`y | Includes 180 to 180b

703501039

$106.12

185a

LH Ball Joint

709402303

$35.14

185b

RH Ball Joint

709402302

$35.14

180

Tie-Rod Ass`y | Includes 180 to 180b

703501039

$106.12

185a

LH Ball Joint

709402303

$35.14

185b

RH Ball Joint

709402302

$35.14

200

O-Ring

293300068

$5.29

210

Hardened Washer

706200281

$2.34

220

Nut M12

250100099

$1.64

230

Cotter Pin

211400013

$0.32

245

Steering Cover | XTP

709402328

$87.66

250

Power Steering Ass'y | Model With DPS

709403187

Unavailable

260

LH Power Steering Bracket | Model With DPS

709402184

$15.35

262

RH Bracket | Model With DPS

709402185

$27.66

263

Power Steering Support | Model With DPS

709401743

$16.89

266

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.39

410

Hex. Flange Screw M8 X 35

250000986

$1.74

415

Hex. Elastic Flange Nut M8

233281416

$1.25

420

Hex. Flange Nut M8

233081416

$1.63

449

Handle Guard Ass'y, LTD

703100357

$92.28

449

Handle Guard Ass'y, LTD

703100357

$92.28

450a

Handle Bar Protector | XT

709400822

$87.66

450b

DPS Decal

704902966

$11.54

450c

Hex. Flange Screw K40 X 25

241142560

$2.17

450d

Flat Washer | XT

211200035

$0.46

450e

U-Clamp | XT

517303264

$11.43

450g

Rubber Bumper

709400781

$4.98

450h

Torx-Truss M/S M4 X 20

250000783

$2.06

450j

Flat Washer 4 mm, Stainless

234042600

$0.92

450k

Elastic Stop Nut M4

232541414

$0.48

450

Deep Black RH Air Deflector | Camo Model

709401303

$36.89

460

Deep Black LH Air Deflector | Camo Model

709401304

$36.89

470

Socket Head Screw M4 X 40

205444056

$1.74

480

Elastic Stop Nut M4

232541414

$0.48

510

Air Deflector Support Kit | X

715001378

$137.74

510

Air Deflector Support Kit | X

715001378

$137.74

510

Air Deflector Support Kit | X

715001378

$137.74

520

Hex. Flange Screw M6 X 20

207662044

$1.66

530

Torx Head Screw M6 X 16

250000717

$1.74

540

Hex. Elastic Stop Nut M6

232561600

$0.92

550

Small Bracket | DS 650 X

709400161

$20.74

560

Large Bracket | DS 650 X

709400162

$16.89

570

Socket Head Screw | X

205384034

$5.19

580

Torx Screw M5 X 14

250000742

$1.20

590

Hex. Elastic Nut M5 | X

232551600

$0.91

455

GPS Support | LTD Model

710003210

$197.66

455a

2-Pieces Fixing Tie Rap for Edges | Not Shown

293750058

$6.45
