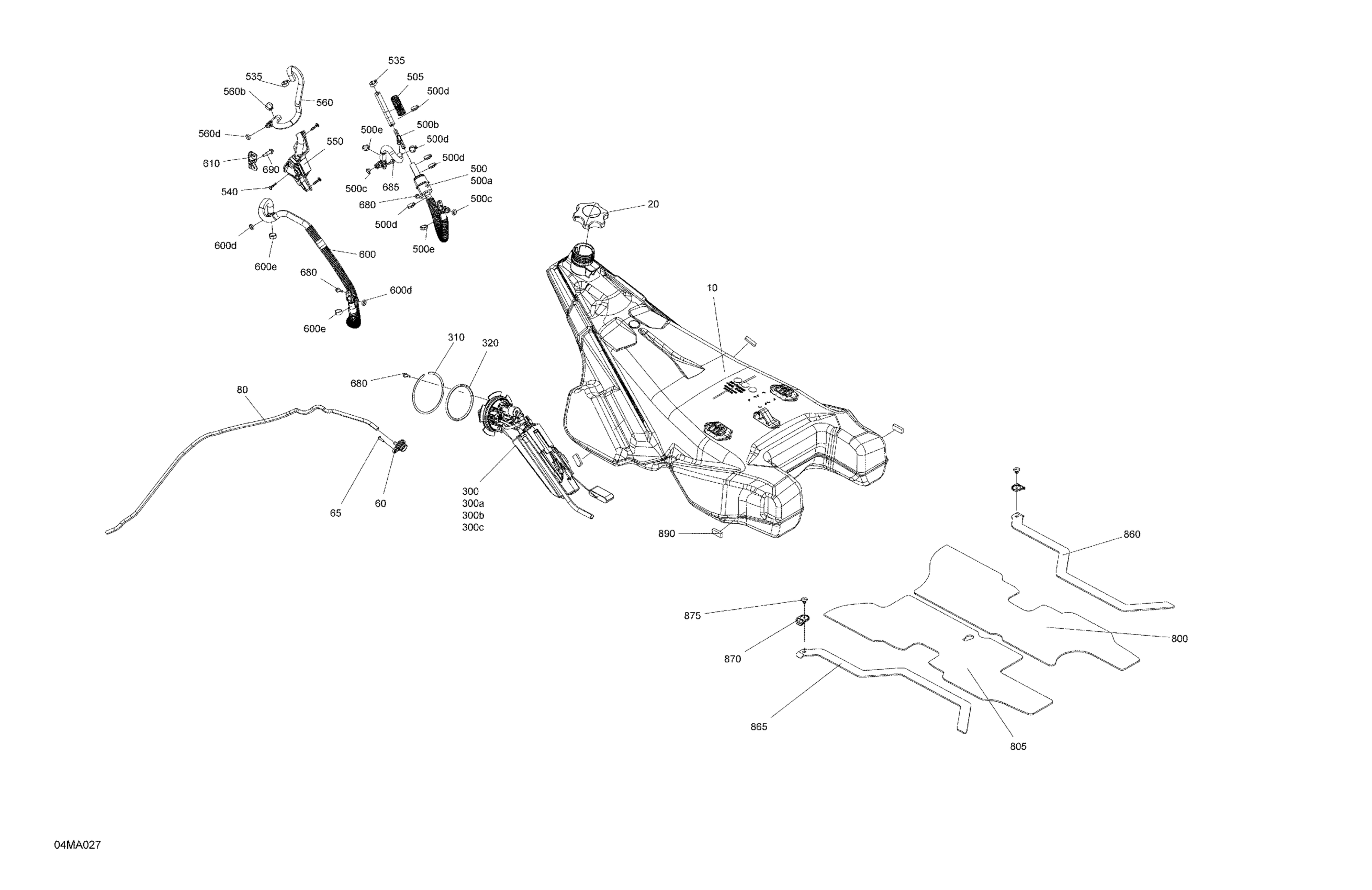

Ski-Doo EXPEDITION XTREME 850 E-TEC - 2021 Engine - Fuel Diagram

#

Description
Price

10

Fuel Tank

513034099

$295.35

20

Fuel Tank Cap

513033860

$23.05

60

Check Valve

513033849

$36.89

65

Truss Torx Screw K40 X 16

250000918

$2.06

80

Polyurethane Hose 10000Mm Long

219704410

$46.12

300

Fuel Pump Ass'y | Includes 300 to 300c

513034082

$257.66

300a

Fuel Filter

415131068

Unavailable

300b

Fuel Level Sensor

415130281

$136.89

300c

Canister

415130507

$80.74

310

Circlip

513033798

$12.83

320

O-Ring

513033862

$17.66

500

Hose Ass'y | Included 500 to 500k

513034105

$71.51

500a

Fuel Filter

513034047

$20.89

500b

Y Fitting

513033926

$6.02

500c

O-Ring

513033668

$9.45

500d

Oetiker Clamp

293650125

$2.69

500e

Crimp Clamp

293650053

$2.42

505

Tubing 16 Mm 1000Mm Long

219704408

$6.23

535

Crimp Clamp, 15.3-706R

293650047

$2.64

540

Torx Screw Truss Head K50X20 T20

250000760

$1.74

550

Hose Guide

513034051

$7.43

560

Fuel Tank Hose Ass'y | Includes 560 to 560d

513034251

$55.35

560b

Crimp Clamp

293650053

$2.42

560d

O-Ring

513033668

$9.45

600

Hose Ass'y | Includes 600 to 600f

513034113

$73.82

600d

O-Ring

513033668

$9.45

600e

Crimp Clamp

293650053

$2.42

610

Bracket

513033903

$1.26

680

Hex. Flange Screw M5 X 16

250000911

$0.70

685

Hex. Flange Screw M5 X 16

250000911

$0.70

690

Hex. Flange Screw M5 X 28 S.Grip

250001018

$1.07

800

RH Insulated Foam

513034052

$10.77

805

LH Insulated Foam

513034053

$10.77

860

RH Foam

513033981

$4.43

865

LH Foam

513033982

$4.43

870

Retainer Plate

513033917

$0.54

875

Pop Rivet 3/16" | DS 650 X

293150104

$1.37

890

Tank Guard

513034038

$4.03
