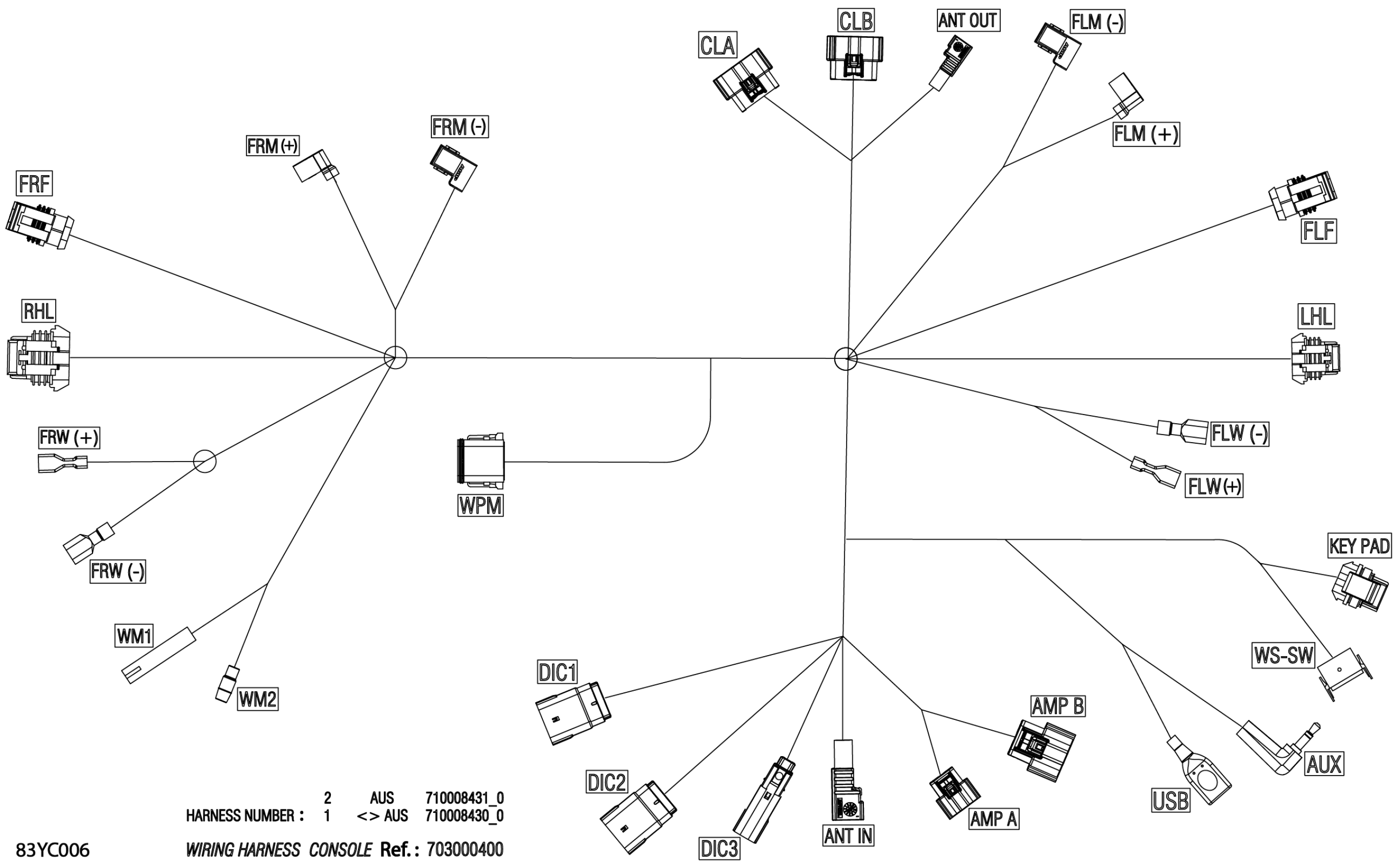

Can-Am RT LIMITED - Dark Edition - Carbon Black, Australia, 2023 Electric -Console Wiring Harness - 710008431 Diagram

Description

Price

Console Wiring Harness

710008431

$349.99

AMP A

Housing, 12 Circuits

278002994

$13.04

AMP A

Sealing Cap

278002860

$1.63

AMP A

Female Terminal

515178018

$0.90

AMP A

Female Terminal 22 AWG

515178349

$1.76

AMP A

Female Terminal

515178014

$2.21

AMP B

Connector Molex Mx150 12pos

710005905

$9.63

AMP B

Female Terminal

515178018

$0.90

AMP B

Female Terminal 22 AWG

515178349

$1.76

AUX

Audio Jack

278003492

$47.49

AUX

Female Terminal

515178018

$0.90

CL A

Female Housing 20 Circuits

278002858

$22.98

CL A

Female Terminal

515178018

$0.90

CL B

Housing, 20 Circuits

515178303

$23.85

CL B

Female Terminal

515178018

$0.90

CL B

Female Terminal 22 AWG

515178349

$1.76

DIC1

Connector Molex Mx150 16 Pos

710005976

$11.19

DIC1

Sealing Cap

278002860

$1.63

DIC1

Male Terminal

515178013

$2.93

DIC2

Connector Molex Mx150 16 Pos

710005977

$12.16

DIC2

Sealing Cap

278002860

$1.63

DIC2

Male Terminal

515178013

$2.93

DIC3

Male Housing Connector 4 Pins

515178347

$13.18

DIC3

Sealing Cap

278002860

$1.63

DIC3

Male Terminal

515178013

$2.93

FLF

Female Housing, 2 Circuits

409209500

$13.07

FLF

Wire Seal

515176621

$6.79

FLF

Female Terminal

710001340

$4.96

FLM -

Female Terminal

409010700

$4.93

FLM +

Female Terminal

710000082

$5.85

FRF

Female Housing, 2 Circuits

409209500

$13.07

FRF

Wire Seal

515176621

$6.79

FRF

Female Terminal

710001340

$4.96

FRM -

Female Terminal

409010700

$4.93

FRM +

Female Terminal

710000082

$5.85

KEYPAD

Housing

710001161

$10.51

KEYPAD

Wire Seal

710001163

$5.85

KEYPAD

Female Terminal

710001164

$6.79

LHL

Housing

710000645

$14.34

LHL

Seal

278001482

$2.93

LHL

Female Terminal

710001134

$5.85

RHL

Housing

710000645

$14.34

RHL

Seal

278001482

$2.93

RHL

Female Terminal

710001134

$5.85

USB

USB Connector

710006405

$38.78

USB

Female Terminal

515178018

$0.90

WM1

Insulated Sheath

278001007

$3.12

WM1

Female Terminal

710000421

$5.30

WM2

Insulated Sheath

278001008

$3.10

WM2

Female Terminal

278002261

$6.01

WPM

Female Terminal Housing, 12 Circuits

278002377

$45.49

WPM

Female Lock, 12 Circuits

409015700

$4.28

WPM

Female Terminal

278000632

$1.94

WPM

Female Terminal

278001665

$4.28

WS SW

4 Circuits Female Housing

515178175

$10.81

WS SW

Female Terminal

515178302

$4.96
