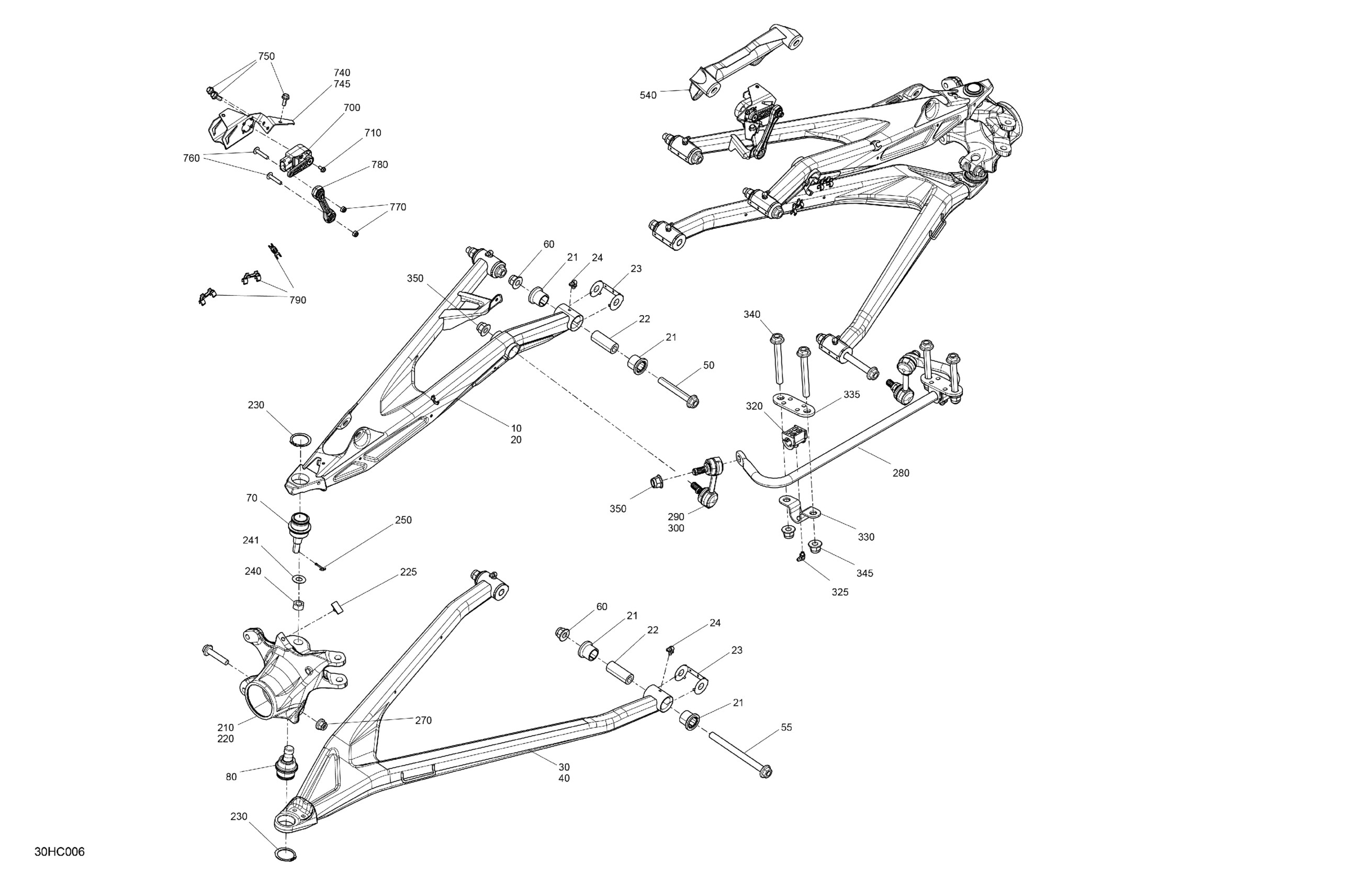

Can-Am Maverick MAX Turbo RR - XRS Smart Shock - International, 2023 Suspension - Front Components Diagram

#

Description
Price

10

Chalk, LH Upper Suspension Arm Ass'y With Balljoint | Dazzling
Blue Model This part replaces 706205159.

715011471

$294.99

20

Chalk, RH Upper Suspension Arm Ass'y With Balljoint | Dazzling
Blue Model This part replaces 706205160.

715011470

$294.99

21

Suspension Arm Bushing

706204409

$9.10

22

Interior Bushing

706202257

$9.79

23

Wear Plate

706202300

$2.29

24

Grease Fitting 90°

293550056

$1.15

30

Chalk, LH Lower Suspension Arm Ass'y With Balljoint | Dazzling
Blue Model This part replaces 706205165.

715010641

$294.99

40

Chalk, RH Lower Suspension Arm Ass'y With Balljoint | Dazzling
Blue Model This part replaces 706205166.

715010652

$294.99

50

Flange Screw M12 X 85

250000859

$4.76

55

Flange Screw M12 X 145

250000861

$6.67

60

Elastic Flange Nut M12

250001195

$2.64

70

Ball Joint

706203084

$35.99

80

Ball Joint

706202045

$35.99

210

LH Front Knuckle

706204785

$201.49

220

RH Front Knuckle

706204786

$148.49

225

Wear Plate

706202502

$2.29

230

Circlip

293370035

$2.64

240

Hex Nut M12

250100239

$2.00

241

Hardened Washer

706200281

$2.85

250

Cotter Pin

211400017

$0.33

270

Hex. Flange Elastic Nut M10

233201436

$2.11

280

Stabilizer Bar Ass'y

706203953

$98.49

290

LH Stabilizer Bar Link

706203611

$72.99

300

RH Stabilizer Bar Link

706203612

$72.99

320

Stabilizer Bar Bushing

706204564

$3.61

325

Grease Fitting 90°

293550056

$1.15

330

Clamp

706202460

$6.89

335

Support Plate

706202551

$5.09

340

Hex. Flange Screw M12 X 95

250000876

$6.77

345

Elastic Flange Nut M12

250001195

$2.64

350

Elastic Flange Nut M12

250001195

$2.64

540

Macchiato, Front Shock Reinforcement

706204350

$58.99

700

Suspension Position Sensor

710005235

$69.99

710

Hex. Flange Screw M5x10

207551056

$1.99

740

LH Front Sensor Support

705211588

$38.99

745

RH Front Sensor Support

705211589

$38.99

750

Hex. Flange Screw M6 X 16

207661654

$2.11

760

Stainless, Torx Screw M6 X 30

250000842

$2.11

770

Elastic Stop Nut M6 | Model-Australie, Brezil, Europe

232561494

$0.58

780

Link

706203429

$19.99

790

Hose Support

706203549

$1.39
