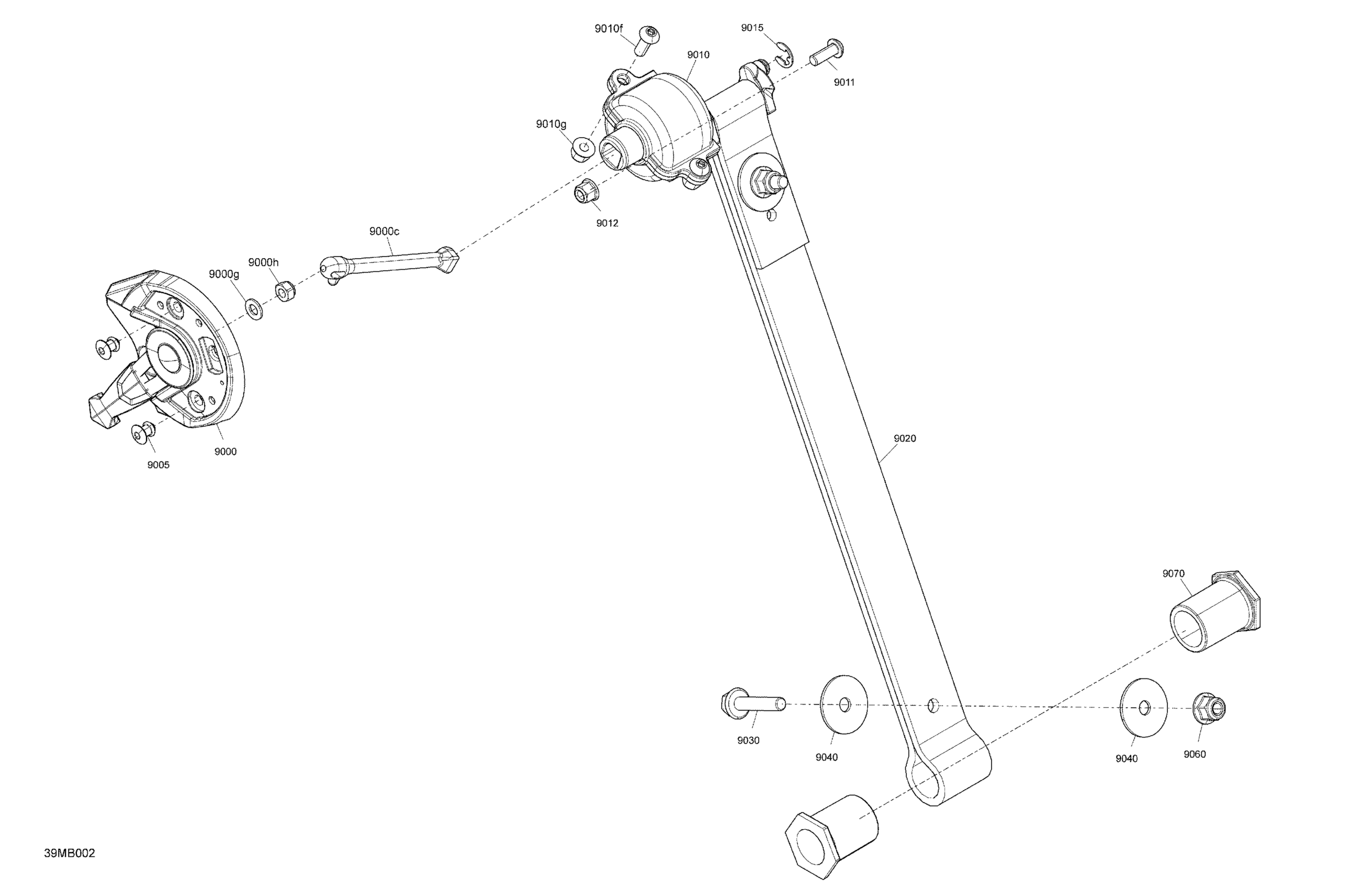

Ski-Doo SUMMIT 850 E-TEC - X with EXPERT Package - 154" - 2022 Suspension - Strap Limiter Diagram

Description

Price

9000

Handle Ass'y | Included 9000 to 9000h

503195466

$121.51

9000c

Shaft

503194147

$16.89

9000g

Flat Washer M5

234051410

$0.44

9000h

Elastic Stop Nut M5

232551414

$0.72

9005

Black, 3/16 Pop Rivet

293150232

$0.91

9010

Crank Ass. | Included 9010 to 9010g

503194381

$126.12

9010f

Screw-Torx Button Head M5 X 14

235551454

$7.31

9010g

Flange Elastic Nut M5

233251434

$1.66

9011

Screw-Torx Button Head M5 X 14

235551454

$7.31

9012

Flange Elastic Nut M5

233251434

$1.66

9015

Circlip | RS STD

705601030

$4.12

9020

Stopper Strap

503194054

$26.89

9030

Hex. Flange Screw M6 X 1.0 X 30

207663056

$3.61

9040

Washer | Not Shown

503193995

$4.38

9060

Hex. Flange Elastic Nut M6

233261466

$1.66

9070

Spacer

503194419

$0.97
