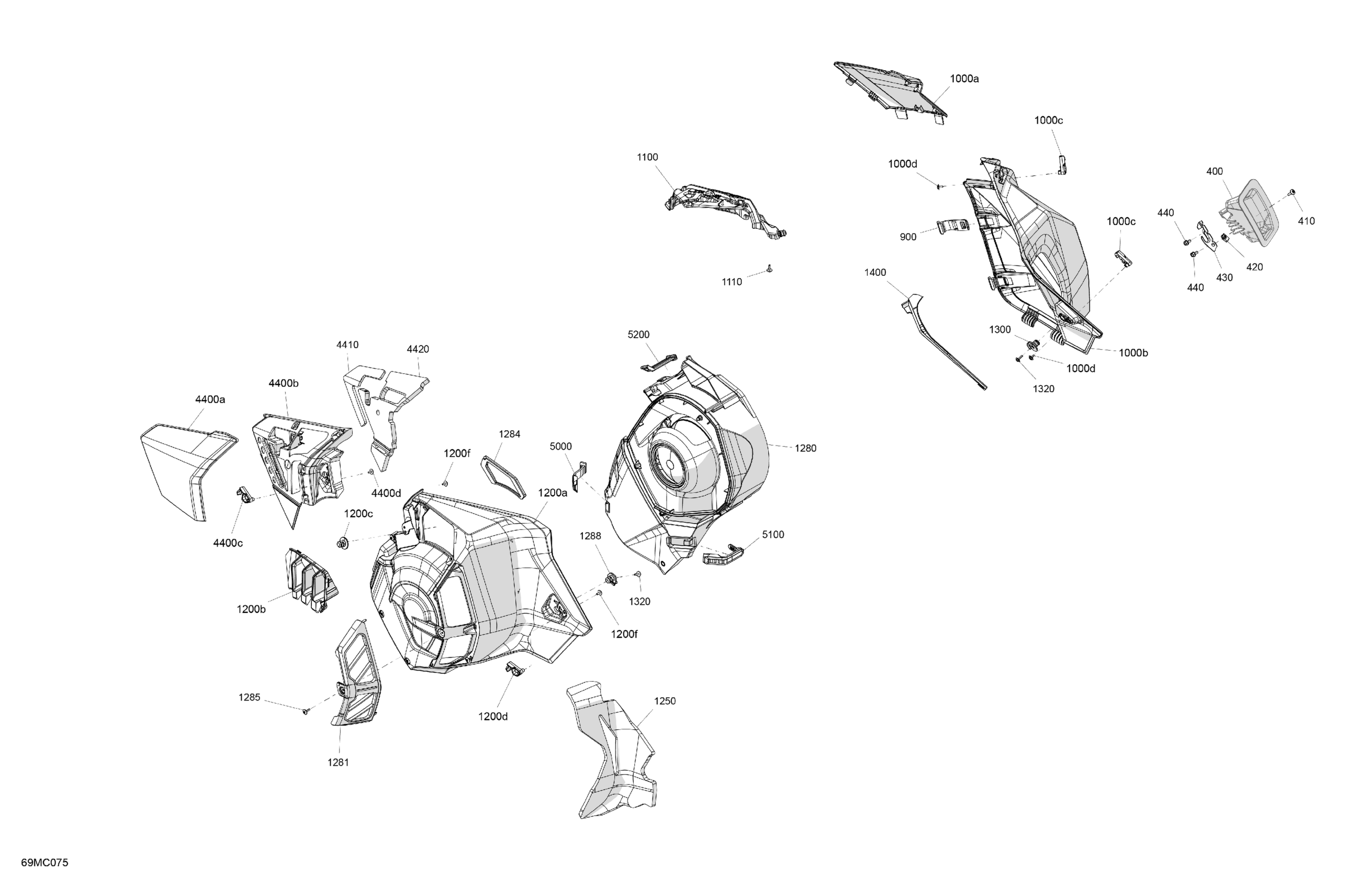

Ski-Doo SUMMIT 850 E-TEC - EXPERT - Package 154" (TGPR) - 2023 Body - Side Panels Diagram

Description

Price

400

RH Console

517306759

$33.82

410

Torx Truss M5 X 20

250000586

Unavailable

420

Panel Nut M5 X 0.8

250000958

Unavailable

430

Rope Guide

517306315

Unavailable

440

Hex. Flange Screw M6 X 12

210261250

$1.56

900

Front Soft Latch

517308267

$12.40

1000a

Timeless Black, RH Front Panel

517308502

$189.20

1000b

RH Rear Panel

517308535

$203.05

1000c

RH Latch

517308587

$13.95

1000d

Screw M4 X 16

250000725

Unavailable

1100

RH Hood Grille

517308132

$27.66

1110

Screw M4 X 16

250000725

Unavailable

1200a

Deep Black, LH Rear Panel

517307954

$50.74

1200b

Deep Black, LH Panel Grille

517308519

$12.71

1200c

Rear Stud

517305985

Unavailable

1200d

LH Latch

517308586

$13.95

1200f

Plastite Screw M4 X 10

250000805

Unavailable

1250

Bonded Foam

517308747

$13.63

1280

CVT Cover Ass'y | Includes 1280 to 1280f

517309062

$138.43

1281

Filter Grille

517309318

$14.74

1284

Filter Grille

517308716

$15.22

1285

Screw M4 X 16

250000889

Unavailable

1288

Lug Angle Short

517308123

$14.55

1300

Rear Stud

517305985

Unavailable

1320

Screw M4 X 16

250000725

Unavailable

1400

Molded Gasket

517308556

$5.17

4400a

LH Front Panel Ass'y | Includes 4400 to 4400d

517308491

$189.20

4400b

LH Lower Panel - Call your local BRP dealership

517308259

$138.43

4400c

LH Latch

517308586

$13.95

4400d

Plastite Screw M4 X 10

250000805

Unavailable

4410

Bonded Foam

517308715

$6.77

4420

Bonded Foam

517308763

$13.63

5000

LH Lower Soft Latch

517308518

$3.77

5100

Rear Latch Soft

517308463

$3.92

5200

LH Upper Latch Soft

517308516

$3.77
