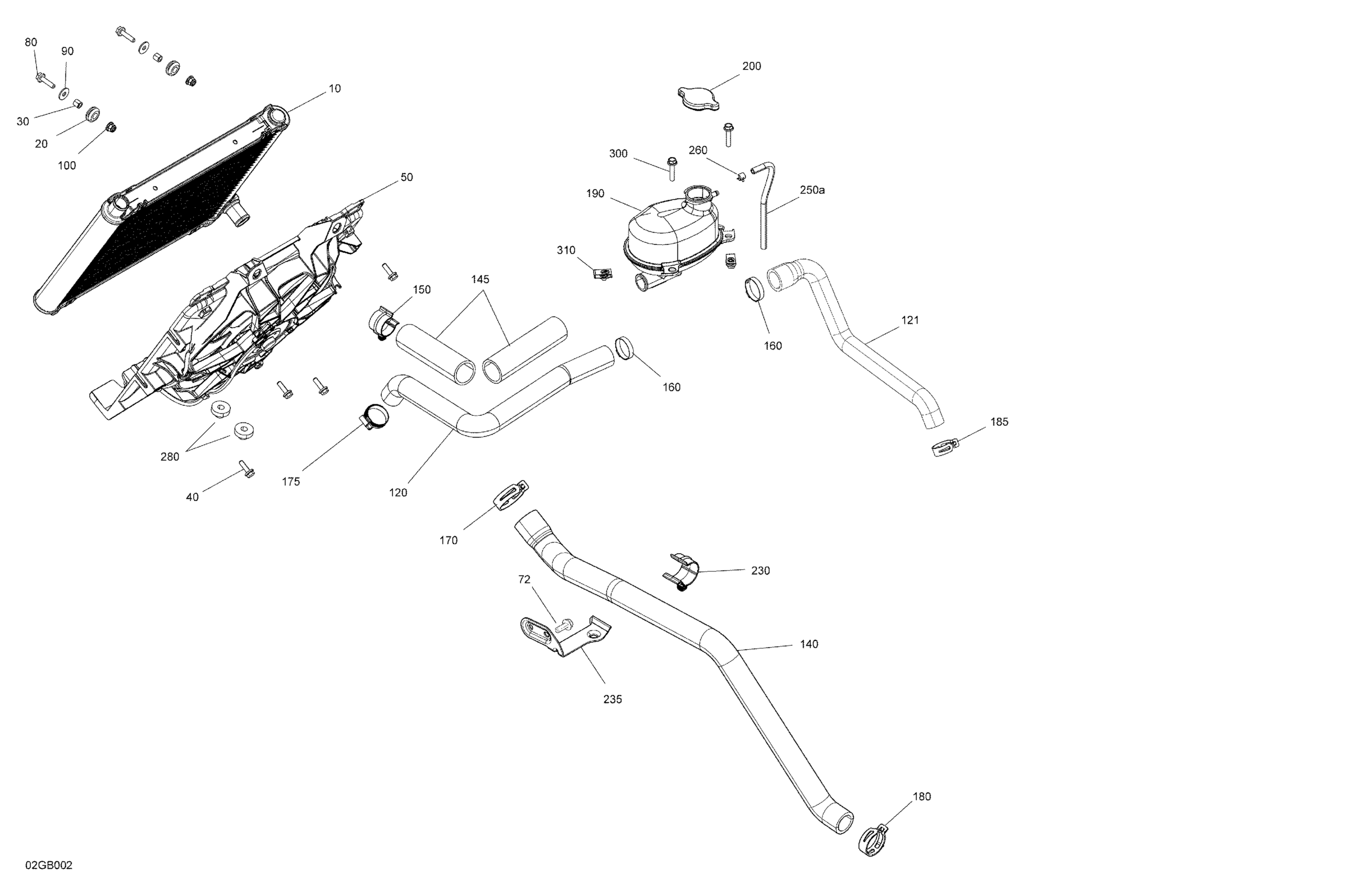

Can-Am Outlander 570 EFI - STD - (2TNA-2TNB) 2022 Engine - Cooling Diagram

#

Description
Price

10

Radiator

709200286

$444.00

20

Grommet

709000582

$4.25

30

Bushing

293900105

$6.07

40

Hex. Flange Screw M6 X 20

207662034

$2.00

50

Fan Ass'y

709200563

$223.10

72

Hex. Flange Screw M6 X 16

210261640

$2.00

80

Hex. Flange Screw M6 X 25

207662544

$0.61

90

Flat Washer

250200082

$0.40

100

Flange Elastic Nut M6

233261434

$4.15

120

Radiator Inlet Hose

709200278

$32.06

121

Engine Outlet Hose

709200310

$17.88

140

Radiator Outlet Hose | Engine 570

709200792

$22.36

145

Tubing 35 MM 1000MM Long

219704428

$9.84

150

Retainer

275500590

$8.24

160

Gear Clamp

509000162

$4.90

170

Norma Spring Clamp

293650166

$4.15

175

Norma Gear Clamp

293650098

$4.15

180

Norma Spring Clamp

293650166

$4.15

185

Norma Spring Clamp

293650109

$3.88

190

Coolant Tank

709200297

$49.97

200

Radiator Pressure Cap

709200207

$21.61

230

Retainer

275500526

$4.28

235

Hose Support

709200641

$8.24

250a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$24.60

260

Spring Clamp

414554800

$0.81

280

Grommet

709200948

$8.13

300

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.00

310

Panel Nut M6 X 1.0

250100198

$1.99
