Description

Price

1

Main Harness

710005005

$846.99

2

Fuse Cover

710001026

$17.52

BD

Female Housing, 6 Circuits

710000081

$7.88

BD

Cap

710000080

$6.28

BD

Wire Seal

710000402

$4.28

BD

Female Terminal

409012100

$3.73

BN1

Terminal

710000913

$5.30

BN2

Open Barrel Terminal

278001392

$4.00

BP1

Open Barrel Terminal

278001392

$4.00

CC

Male Housing, 6 Circuits

710000849

$7.55

CC

Lock

710000848

$3.12

CC

Female Terminal

710000274

$8.72

CI

Terminal | Canada/Usa

710001635

$3.12

CI

Female Housing, 24 Circuits

515175801

$8.73

CI

Retainer Block

515175802

$10.34

CI

LOCK - Call your local BRP dealership

515175805

Unavailable

CI

Plug

515175812

$1.70

CI

BLOCK - Call your local BRP dealership

515175804

Unavailable

CI

Wire Seal

515175803

$2.41

CRD

Female Terminal

710001131

$6.79

CRD

Wire Seal

710000402

$4.28

CRG

Female Terminal

409012100

$3.73

CRG

Wire Seal

710000402

$4.28

D11

Female Terminal

409012100

$3.73

D2

Diode

409012700

$10.51

D5

Diode

409012700

$10.51

D6

Diode

409012700

$10.51

DB

Diode

409012700

$10.51

DB

Housing, 6 Circuits

278002896

$13.60

DB

Male Wedge, 6 Circuits

515175678

$4.96

DB

Sealing Cap

293000052

$2.55

DB

Female Terminal

278001665

$3.73

DC_1

Female Terminal

278000632

$1.69

DC_1

Female Terminal

710002398

$1.67

DC_2

Female Terminal

710002399

$1.88

DC_2

Female Terminal

710002398

$1.67

DC3

Female Terminal

710002399

$1.88

DC3

Female Housing, 2 Circuits

515175658

$14.90

DC3

Male Housing, 2 Circuits

710000667

$7.25

DC5

Female Terminal

515175231

$4.00

DC5

Clip

710000992

$3.88

DC5

Male Connector, 2 Circuits

278000220

$11.02

DC5

Female Housing, 2 Circuits

278000217

$7.59

DC5

Wire Seal

278001065

$5.85

DC5_1

Female Terminal

278000223

$2.55

DC5_1

Insulated Sheath

278001007

$3.12

DC6

Female Terminal

710000421

$5.30

DC6

Clip

710000992

$3.88

DC6

Male Connector, 2 Circuits

278000220

$11.02

DC6

Female Housing, 2 Circuits

278000217

$7.59

DC6

Wire Seal

278001065

$5.85

DPS1

Female Terminal

278000223

$2.55

DPS1

Housing

710001161

$9.15

DPS1

Lock

710001162

$3.18

DPS1

Cap

710001225

$7.27

DPS1

Cap

710001114

$16.39

DPS1

Wire Seal

710001163

$5.10

DPS2

Female Terminal

710001164

$5.92

DPS2

Fuse Holder Cap

278001326

$5.85

DPS2

Fuse Holder

278001987

$12.52

DPS3

Female Terminal

710000113

$5.85

DPS3

Housing

710001157

$16.39

DPS3

Lock

710001323

$5.90

DPS3

PLUG - Call your local BRP dealership

710001158

Unavailable

F11

Little Fuse, 5 Amperes

710000742

$7.24

F12

Little Fuse, 30 Amperes

710000747

$6.77

F14

Little Fuse, 20 Amperes

710000746

$6.77

F15

Little Fuse, 20 Amperes

710000746

$6.77

F3

Little Fuse, 5 Amperes

710000742

$7.24

F4

Fuse

710001613

$7.24

F5

Little Fuse, 5 Amperes

710000742

$7.24

F6

Little Fuse, 5 Amperes

710000742

$7.24

F7

Little Fuse, 5 Amperes

710000742

$7.24

F8

Little Fuse, 5 Amperes

710000742

$7.24

F9

Little Fuse, 5 Amperes

710000742

$7.24

FL-1

Fuse, 25 Amps

710002590

$17.88

FP

Female Housing, 4 Circuits

409209700

$12.97

FP

Wire Seal

278001013

$2.72

FP

Wire Seal

515176621

$6.79

FP

Female Terminal

278001014

$2.72

FRR

Female Terminal

710001340

$4.96

FRR

Female Housing, 2 Circuits

515175658

$14.90

FRR

Male Housing, 2 Circuits

710000667

$7.25

FRR

Female Terminal

515175231

$4.00

FT

Female Terminal

710003896

$1.70

FT

Clip Bracket Connector (edge)

409210100

$1.94

FT

Female Housing, 2 Circuits

278000217

$7.59

HIC1_F

Wire Seal

278000218

$3.48

HIC1_F

Male Terminal

409004300

$5.30

HIC1_F

Housing

710001226

$11.06

HIC1_F

LOCK - Call your local BRP dealership

710001221

$8.42

HIC1_F

Cap

710001225

$7.27

HIC1_F

Seal

710001233

$2.55

HIC1_F

Seal Wire

710001332

$2.72

HIC2_F

Terminal

710001229

$2.93

HIC2_F

Terminal

710001228

$2.72

HIC2_F

Housing

710001928

$14.52

HIC2_F

LOCK - Call your local BRP dealership

710001221

$8.42

HIC2_F

Cap

710001225

$7.27

HIC2_F

Seal

710001233

$2.55

HIC2_F

Seal Wire

710001332

$2.72

HIC8

Terminal

710001229

$2.93

HIC8

Terminal

710001228

$2.72

HICA

Insulated Sheath

278001007

$3.12

HICA

Female Terminal

710000421

$5.30

HICA

Housing

710001928

$14.52

HICA

LOCK - Call your local BRP dealership

710001221

$8.42

HICA

Cap

710001225

$7.27

HICA

Seal

710001233

$2.55

JP1

Terminal

710001229

$2.93

MG1

Male Terminal Housing, 6 Circuits

710000835

$15.64

MG1

Cap

710000080

$6.28

MG1

Wire Seal

710000402

$4.28

MG1

Seal

409012300

$4.25

MG2

Male Terminal

409011300

$5.61

MG2

Female Housing, 6 Circuits

710000081

$7.88

MG2

Cap

710000080

$6.28

MG2

Wire Seal

710000402

$4.28

MG2

Seal

409012300

$4.25

PDB

Female Terminal

409012100

$3.73

PDB

Housing

710002578

$3.12

PDB

Wire Seal

710001427

$2.09

PDH

Female Terminal

278002578

$0.86

PDH

Housing

710002278

$7.12

PDH

Lock

710002279

$3.93

PDH

Wire Seal

710001427

$2.09

PF1

Female Terminal

278002578

$0.86

PF1

Logo Fuse

710004719

$12.63

PF1

Foam

278002172

$5.33

PF1

Fuse Box Base Ass´y

415129856

$41.57

PF1

Cap

710000840

$5.33

PF1

Wire Seal

278000999

$2.55

PF1

Seal

415128501

$1.51

PF1

Female Terminal

515177009

$4.96

PF1

Female Terminal

515177012

$4.96

PF2

Clip

710000992

$3.88

PF2

Fuse Holder Cap

278001326

$5.85

PF2

Fuse Holder

278001325

$8.31

PGB

Female Terminal

710000113

$5.85

PGB

Housing

710002578

$3.12

PGB

Wire Seal

710001427

$2.09

PGH

Female Terminal

278002578

$0.86

PGH

Housing

710002278

$7.12

PGH

Lock

710002279

$3.93

PGH

Wire Seal

710001427

$2.09

PL

Female Terminal

278002578

$0.86

PL

Female Housing, 2 Circuits

515175658

$14.90

PRD

Female Terminal

710003896

$1.70

PRD

Connector, 3 Positions

710003167

$8.58

PRD

Seal

415128501

$1.51

PRG

Terminal

710002443

$0.85

PRG

Connector, 3 Positions

710003167

$8.58

PRG

Seal

415128501

$1.51

R1

Terminal

710002443

$0.85

R2

Relay, 30 AMP

515176774

$18.63

R3

Relay

715900824

$16.22

R4

Relay, 30 AMP

515176774

$18.63

R5

Relay

715900824

$16.22

R8

Relay

715900824

$16.22

RD1

Relay

715900824

$16.22

RD1

Female Housing, 3 Circuits

710000879

$21.42

RD1

Cap

710000882

$9.19

RD1

Seal

710001932

$3.06

SS1

Terminal

710001934

$4.51

SS2

Female Terminal

409010300

$4.00

SW1

Female Terminal

409010300

$4.00

SW1

Insulated Sheath

278001007

$3.12

SW2

Female Terminal

710000421

$5.30

SW2

Insulated Sheath

278001008

$3.10

SW4

Female Terminal

278002261

$6.01

SWW

Open Barrel

278000992

$1.79

SWW

Male Housing, 3 Circuits

278000273

$7.59

SWW

Wire Seal

278001065

$5.85

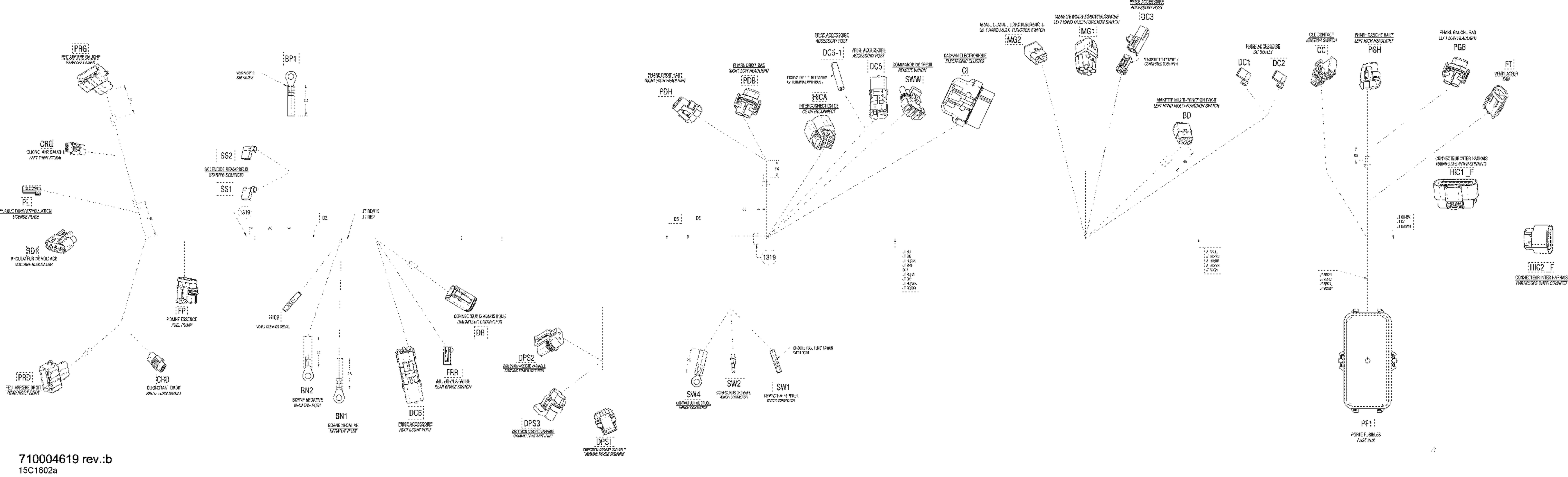

Can-Am Outlander - 1000R EFI - XMR Package 0005KGA00 0005KGB00 0005KGC00 0005KGD00 0005KGE00 Electrical Harness - Main Diagram

Main Harness

Fuse Cover

Female Housing, 6 Circuits

Cap

Wire Seal

Female Terminal

Terminal

Open Barrel Terminal

Open Barrel Terminal

Male Housing, 6 Circuits

Lock

Female Terminal

Terminal | Canada/Usa

Female Housing, 24 Circuits

Retainer Block

LOCK - Call your local BRP dealership

Plug

BLOCK - Call your local BRP dealership

Wire Seal

Female Terminal

Wire Seal

Female Terminal

Wire Seal

Female Terminal

Diode

Diode

Diode

Diode

Housing, 6 Circuits

Male Wedge, 6 Circuits

Sealing Cap

Female Terminal

Female Terminal

Female Terminal

Female Terminal

Female Terminal

Female Terminal

Female Housing, 2 Circuits

Male Housing, 2 Circuits

Female Terminal

Clip

Male Connector, 2 Circuits

Female Housing, 2 Circuits

Wire Seal

Female Terminal

Insulated Sheath

Female Terminal

Clip

Male Connector, 2 Circuits

Female Housing, 2 Circuits

Wire Seal

Female Terminal

Housing

Lock

Cap

Cap

Wire Seal

Female Terminal

Fuse Holder Cap

Fuse Holder

Female Terminal

Housing

Lock

PLUG - Call your local BRP dealership

Little Fuse, 5 Amperes

Little Fuse, 30 Amperes

Little Fuse, 20 Amperes

Little Fuse, 20 Amperes

Little Fuse, 5 Amperes

Fuse

Little Fuse, 5 Amperes

Little Fuse, 5 Amperes

Little Fuse, 5 Amperes

Little Fuse, 5 Amperes

Little Fuse, 5 Amperes

Fuse, 25 Amps

Female Housing, 4 Circuits

Wire Seal

Wire Seal
